AST06LAS1 ROOM AIR CONDITIONER – Aparts

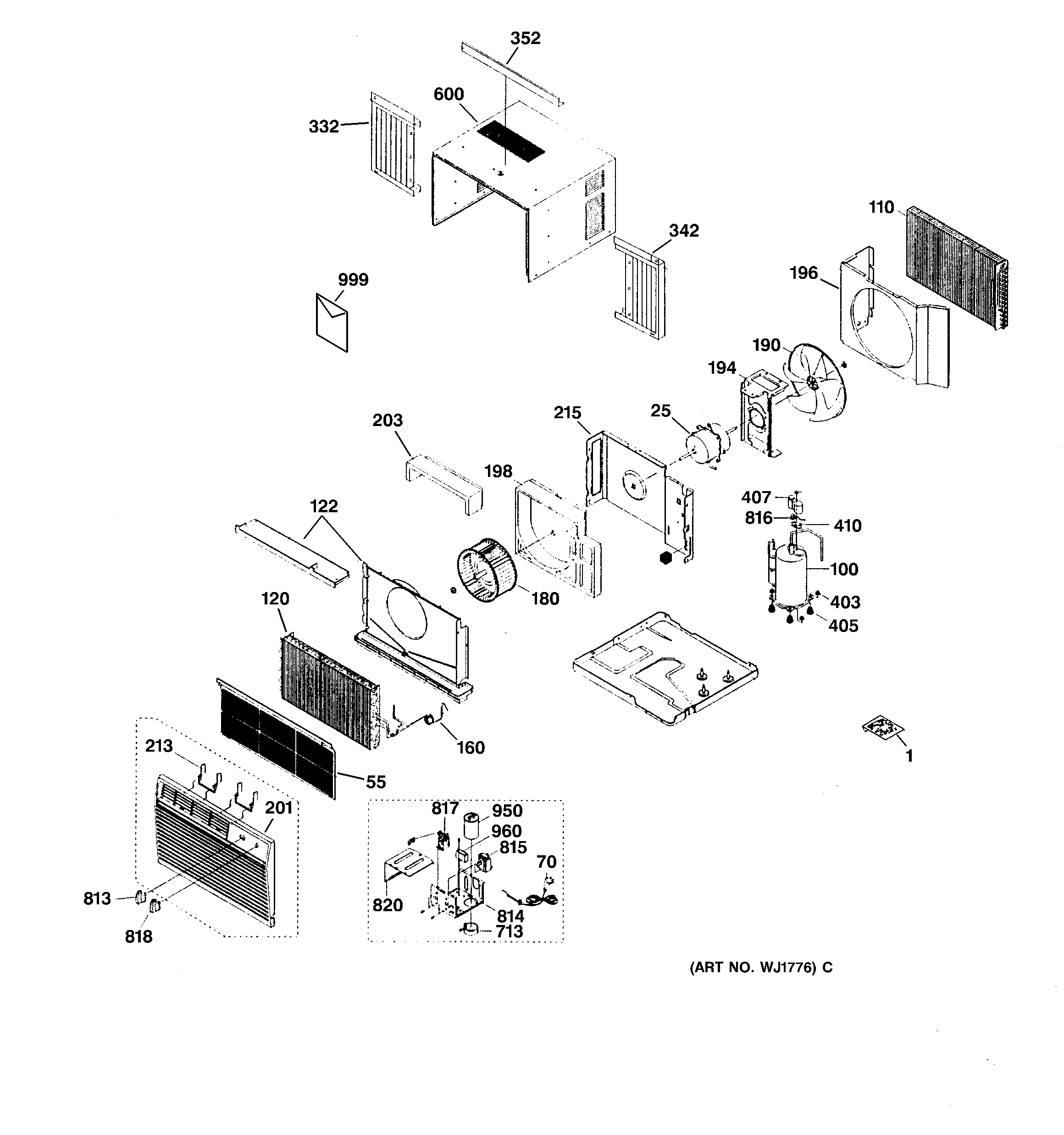

AST06LAS1 ROOM AIR CONDITIONER

Products

Position	Product
1	GEN WJ86X10037
25	GEN WJ94X10108
55	GEN WJ85X10035
70	GEN WJ35X10039
100	GEN WJ98X10070
110	CONDENSER ASS'Y
120	GEN WJ87X10064
122	GEN WJ76X10082
160	CAPILLARY TUBE
180	GEN WJ73X10042
190	GEN WJ73X10029
194	MOUNTER MOTOR
196	CASE CONDENSER
198	GEN WJ76X10084
201	GEN WJ71X10207
203	GEN WJ76X10083
213	GEN WJ71X10144
215	GEN WJ71X10208
332	SHUTTER LEFT ASS'Y
342	SHUTTER RIGHT ASS'Y
352	SHUTTER ANGLE,UP
403	GEN WJ01X10119
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
410	GEN WJ43X10018
600	GEN WJ90X10023
713	GEN WJ03X10023
813	KNOB THERMO
814	GEN WJ76X10085
815	SWITCH ROTARY
816	OVER LOAD PROTECTOR
817	GEN WJ28X10015
818	GEN WJ12X10035
820	GEN WJ76X10086
950	GEN WJ20X10048
960	GEN WJ20X10049
999	GEN 49-7399
999	GEN 31-60678
