ASV05LBS1 ROOM AIR CONDITIONER – Aparts

ASV05LBS1 ROOM AIR CONDITIONER

Products

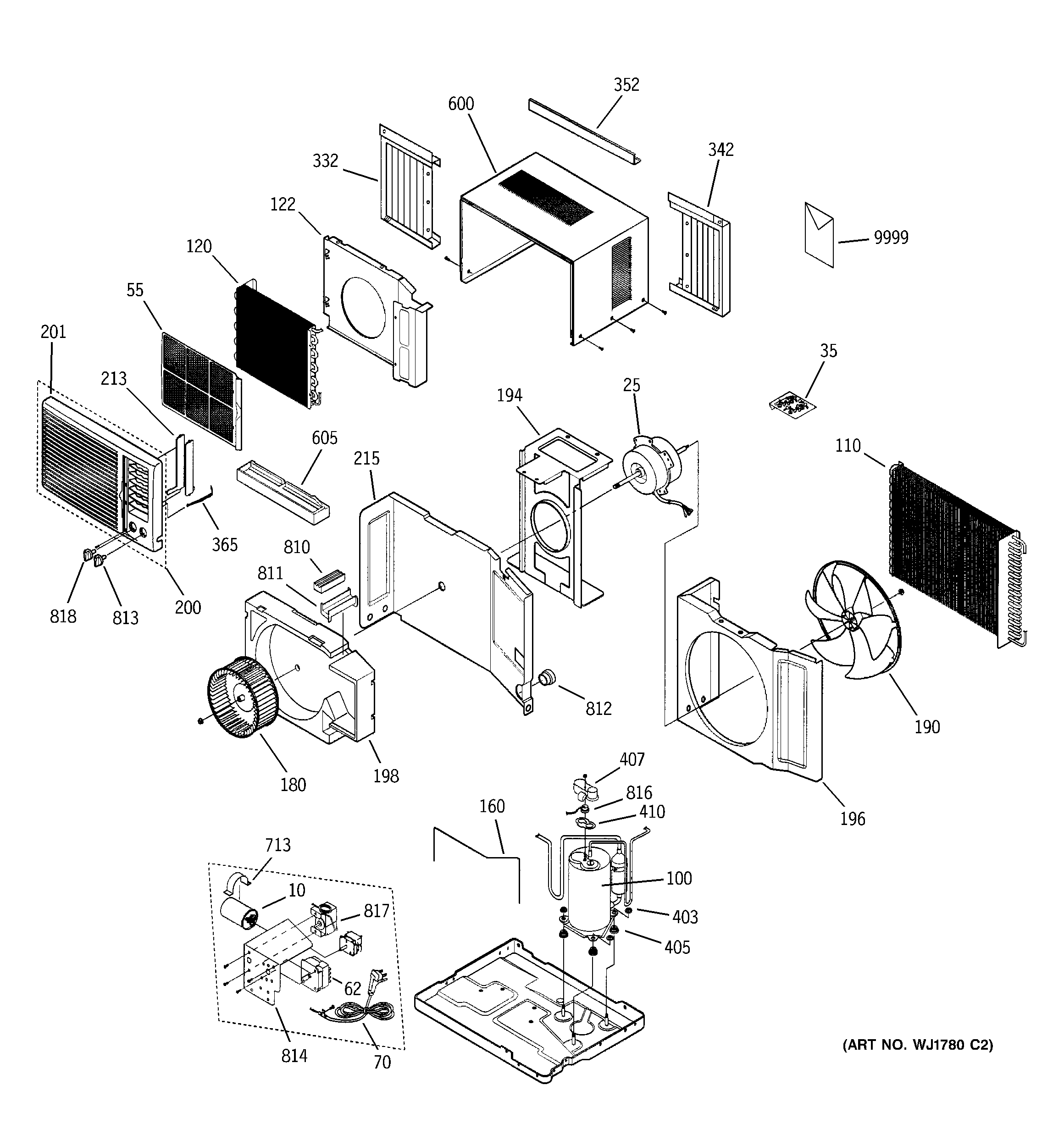

Position	Product
10	GEN WJ20X10034
25	GEN WJ94X10107
35	GEN WJ86X10037
55	GEN WJ85X10026
62	SWITCH ROTARY
70	GEN WJ35X10032
100	GEN WJ98X10045
110	CONDENSER ASS'Y
120	GEN WJ87X10050
122	GEN WJ76X10060
160	CAPILLARY TUBE
180	GEN WJ73X10030
190	GEN WJ73X10029
194	MOUNTER MOTOR
196	CASE CONDENSER
198	GEN WJ76X10058
201	GEN WJ71X10146
213	GEN WJ71X10144
215	GEN WJ71X10145
332	SHUTTER LEFT ASS'Y
342	SHUTTER RIGHT ASS'Y
352	SHUTTER ANGLE,UP
365	GEN WJ14X10020
403	GEN WJ01X10119
405	GEN WJ01X10114
407	GEN WJ86X10027
410	GEN WJ43X10018
600	GEN WJ90X10023
605	GEN WJ89X10034
713	GEN WJ03X10023
810	GEN WJ62X10005
811	GEN WJ79X10047
812	GEN WJ79X10048
813	GEN WJ12X10028
814	GEN WJ80X10005
816	OVER LOAD PROTECTOR
817	GEN WJ28X10015
818	GEN WJ12X10029
9999	GEN 31-60711
9999	GEN 49-7399
