ASV05LCS1 ROOM AIR CONDITIONER

ASV05LCS1 ROOM AIR CONDITIONER

Written by

in

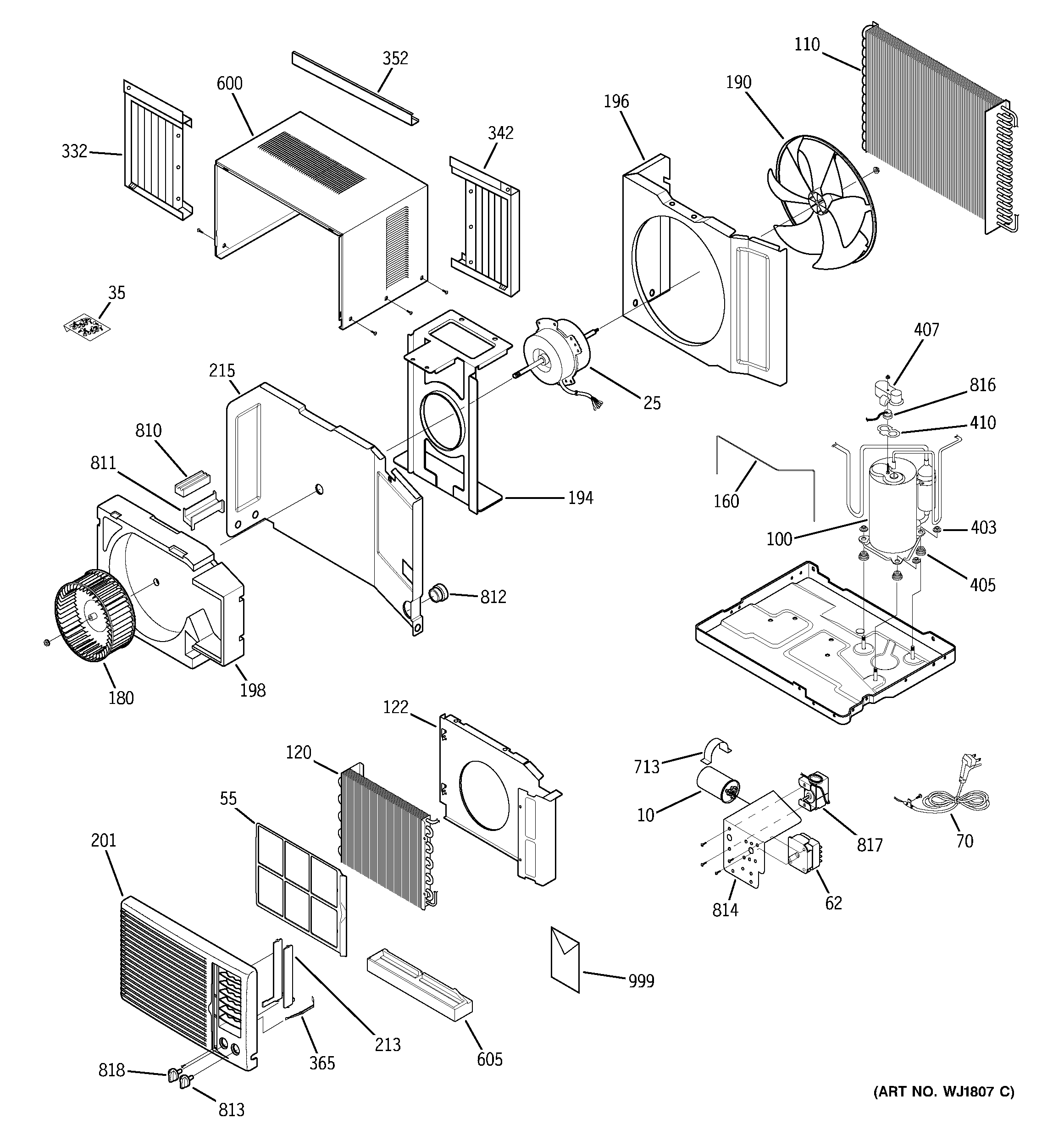

ASV05LCS1 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10038
25	GEN WJ94X10107
35	GEN WJ86X10037
55	GEN WJ85X10026
62	SWITCH ROTARY
70	GEN WJ35X10032
100	GEN WJ98X10090
110	GEN WJ88X10086
120	GEN WJ87X10091
122	GEN WJ76X10060
160	GEN WJ53X10063
180	GEN WJ73X10030
190	GEN WJ73X10029
194	MOUNTER MOTOR
196	CASE CONDENSER
198	GEN WJ76X10058
201	GEN WJ71X10146
213	GEN WJ71X10144
215	GEN WJ71X10145
332	SHUTTER LEFT ASS'Y
342	SHUTTER RIGHT ASS'Y
352	SHUTTER ANGLE,UP
365	GEN WJ14X10020
403	GEN WJ01X10119
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
410	GEN WJ43X10018
600	GEN WJ90X10023
605	GEN WJ89X10034
713	GEN WJ03X10023
810	GEN WJ62X10005
811	GEN WJ79X10047
812	GEN WJ79X10048
813	GEN WJ12X10028
814	GEN WJ80X10005
816	OVER LOAD PROTECTOR
817	GEN WJ28X10015
818	GEN WJ12X10029
999	GEN 31-60823
999	GEN 49-7420
