ASV06LBS1 ROOM AIR CONDITIONER

Products

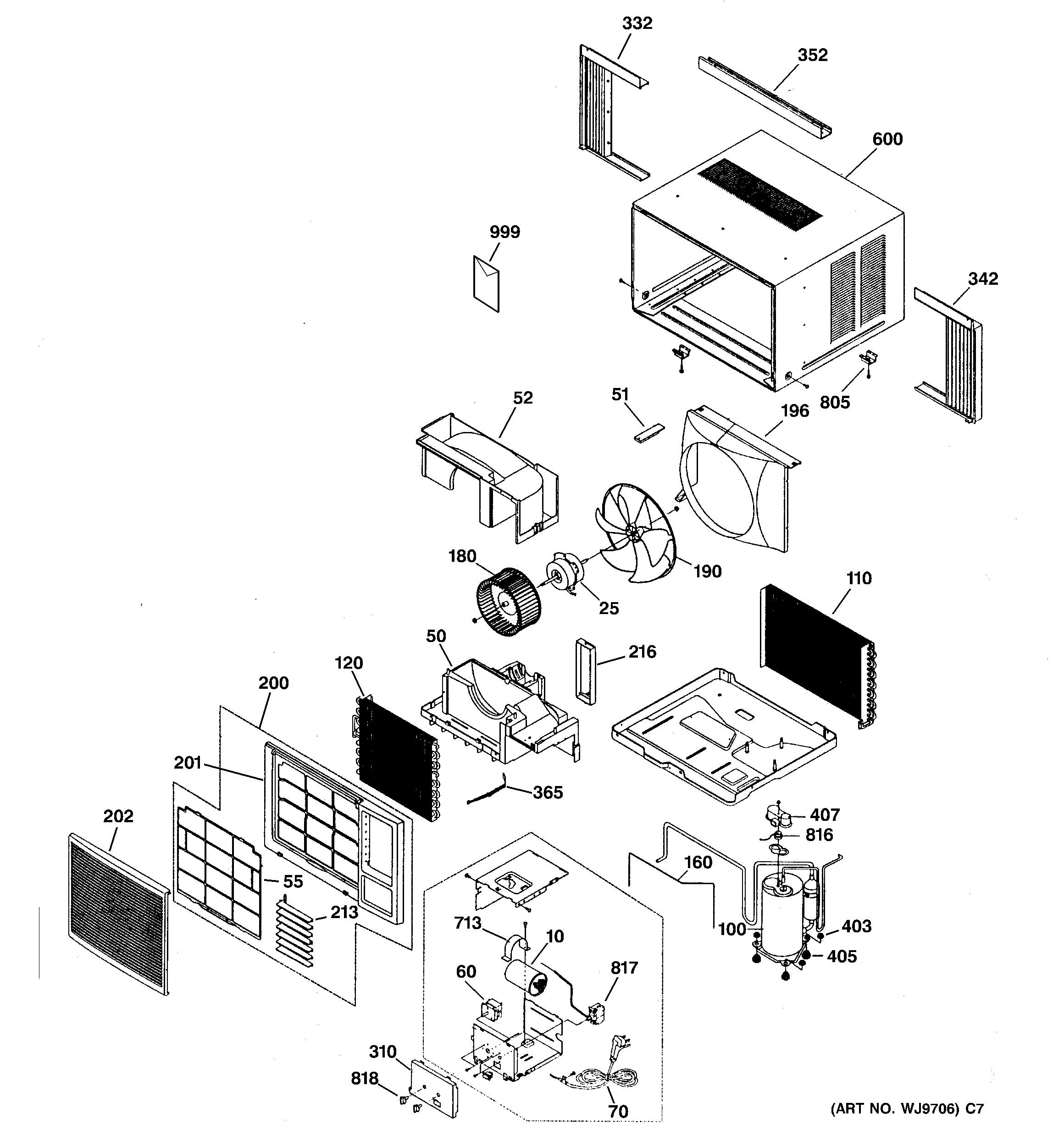

Position	Product
10	GEN WJ20X10038
25	GEN WJ94X10074
50	LOUVER ASS'Y
51	FRAME REINF
52	GEN WJ76X10072
55	GUARD AIR-FILTER
60	SWITCH ROTARY
70	GEN WJ35X10033
100	GEN WJ98X10050
110	CONDENSER ASS'Y
120	GEN WJ87X10045
160	CAPILLARY TUBE
180	GEN WJ73X10034
190	GEN WJ73X10033
196	GEN WJ76X10062
200	GEN WJ71X10172
201	GEN WJ71X10159
202	GEN WJ71X10173
213	GEN WJ71X10157
216	GEN WJ71X10158
310	GEN WJ26X10035
332	GEN WJ86X10030
342	GEN WJ86X10031
352	GEN WJ86X10029
365	GEN WJ14X10023
403	GEN WJ01X10119
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
600	GEN WJ90X10025
713	CLIP-CAPACITOR
805	GEN WJ66X10034
816	OVER LOAD PROTECTOR
817	GEN WJ28X10016
818	KNOB THERMO-ASSY
999	GEN 49-7387
999	GEN 31-60617
