ASV06LBS2 ROOM AIR CONDITIONER

ASV06LBS2 ROOM AIR CONDITIONER

Written by

in

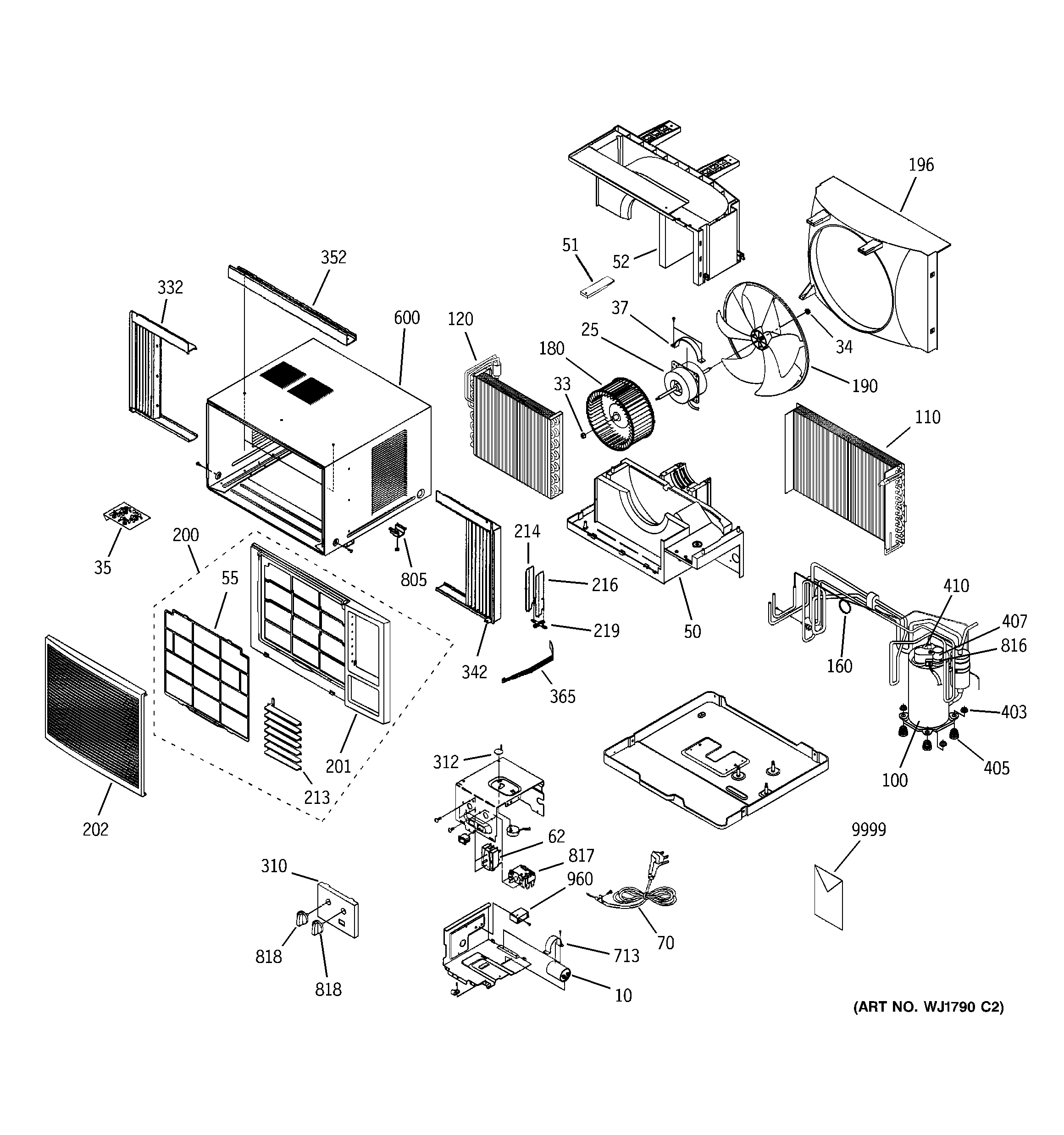

ASV06LBS2 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10038
25	GEN WJ94X10109
33	GEN WJ01X10162
34	GEN WJ01X10163
35	GEN WJ86X10044
50	LOUVER ASS'Y
51	FRAME REINF
52	GEN WJ76X10073
55	GUARD AIR-FILTER
62	SWITCH ROTARY
70	GEN WJ35X10040
100	GEN WJ98X10050
110	CONDENSER ASS'Y
120	GEN WJ87X10045
160	CAPILLARY TUBE
180	GEN WJ73X10034
190	GEN WJ73X10033
196	GEN WJ76X10062
201	GEN WJ71X10159
202	GEN WJ71X10173
213	GEN WJ71X10157
216	GEN WJ71X10158
310	GEN WJ26X10041
332	GEN WJ86X10042
342	GEN WJ86X10043
352	GEN WJ86X10041
365	GEN WJ14X10023
403	GEN WJ01X10119
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
600	GEN WJ90X10032
713	CLIP-CAPACITOR
805	GEN WJ66X10034
816	OVER LOAD PROTECTOR
817	GEN WJ28X10016
818	KNOB THERMO-ASSY
960	GEN WJ20X10053
9999	GEN 31-60712
9999	GEN 49-7400
