ASV12ABS1 ROOM AIR CONDITIONER – Aparts

ASV12ABS1 ROOM AIR CONDITIONER

Products

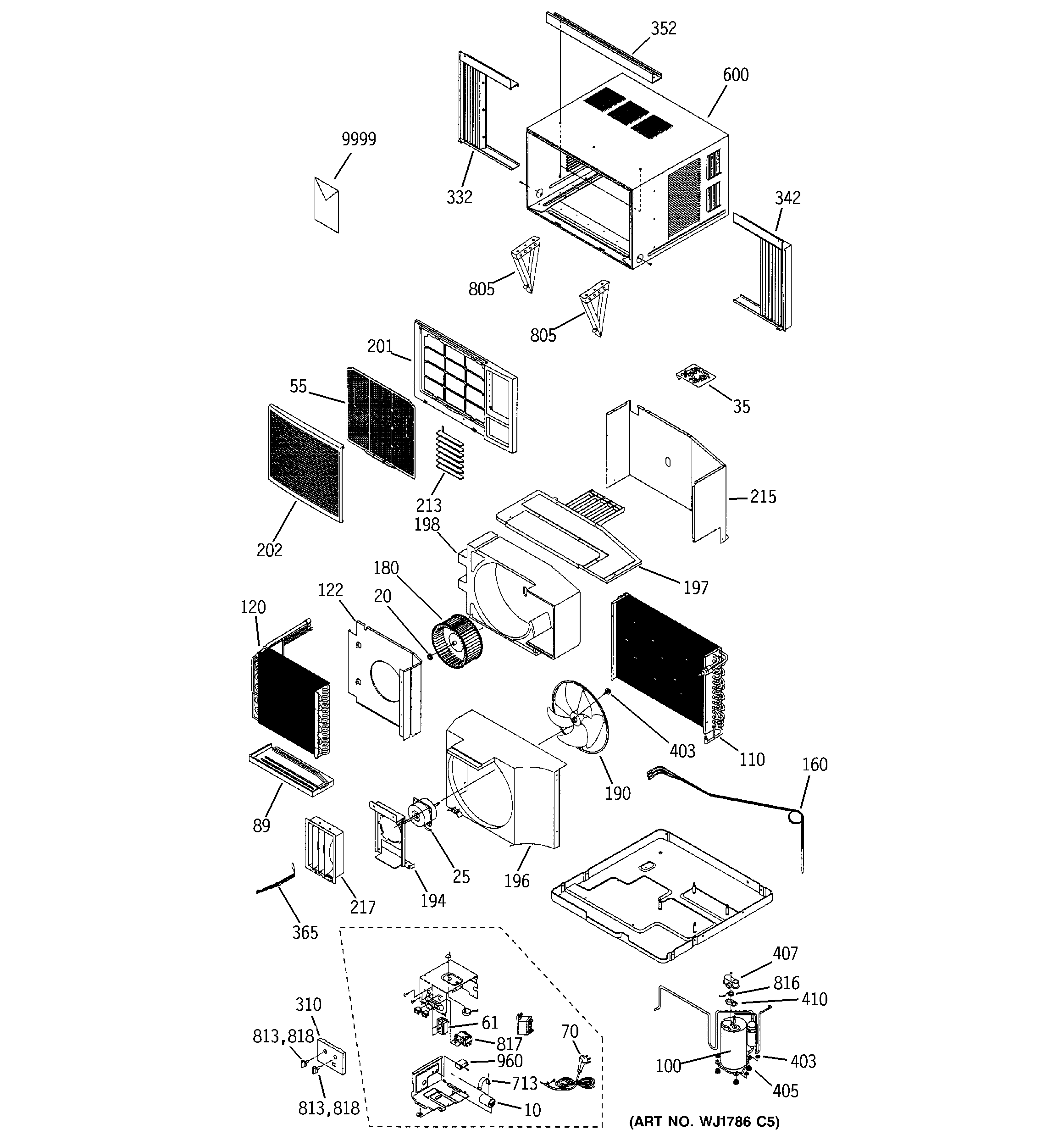

Position	Product
10	GEN WJ20X10059
25	GEN WJ94X10116
35	ASSY-SCREW HARDWARE PACK
55	GUARD AIR-FILTER
61	SWITCH ROTARY
70	GEN WJ35X10043
89	TRAY-DRAIN
100	GEN WJ98X10077
110	GEN WJ88X10070
120	GEN WJ87X10073
122	GEN WJ76X10057
160	TUBE-CAPILLARY
180	GEN WJ73X10043
190	FAN BLADE - O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
198	GEN WJ76X10087
201	GRILLE FRAME
202	GRILLE AIR INLET
213	LOUVERS HORIZONTAL
217	GEN WJ71X10163
310	GEN WJ26X10042
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	GEN WJ14X10019
403	GEN WJ01X10151
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ68X10018
816	GEN WJ23X10033
817	GEN WJ28X10016
818	KNOB THERMO-ASSY
960	GEN WJ20X10060
9999	GEN 31-60719
9999	GEN 49-7405
