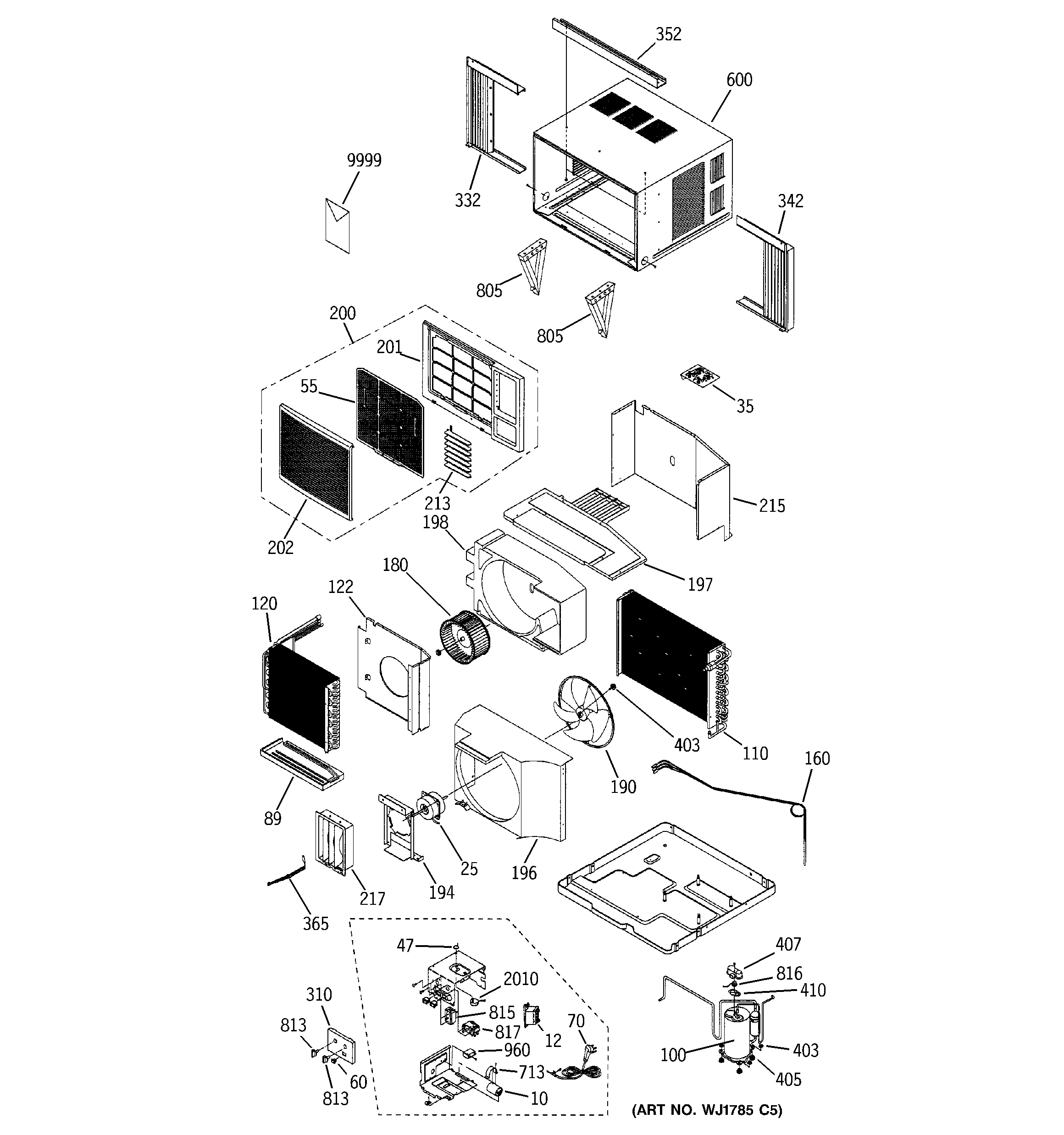

ASV24DAD2 ROOM AIR CONDITIONER – Aparts

ASV24DAD2 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10052
12	GEN WJ24X10003
25	GEN WJ94X10110
35	ASSY-SCREW HARDWARE PACK
47	GEN WJ01X10113
55	GUARD AIR-FILTER
60	GEN WJ26X10024
70	GEN WJ35X10042
89	TRAY-DRAIN
100	GEN WJ98X10046
110	CONDENSER
120	EVAPORATOR
122	GEN WJ76X10061
160	CAPILLARY TUBE
180	GEN WJ73X10043
190	FAN BLADE - O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
198	GEN WJ76X10087
200	GEN WJ71X10154
201	GRILLE FRAME
202	GRILLE AIR INLET
213	LOUVERS HORIZONTAL
215	GEN WJ71X10142
217	GEN WJ71X10215
310	GEN WJ26X10044
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	GEN WJ14X10019
403	GEN WJ01X10119
405	GEN WJ01X10112
407	GEN WJ86X10014
410	GEN WJ43X10017
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ68X10018
813	KNOB THERMO-ASSY
815	GEN WJ26X10026
816	GEN WJ23X10033
817	GEN WJ28X10016
960	GEN WJ20X10060
2010	GEN WJ94X10071
9999	GEN 49-7405
9999	GEN 31-60726
