ASW06LAS1 ROOM AIR CONDITIONER

ASW06LAS1 ROOM AIR CONDITIONER

Written by

in

ASW06LAS1 ROOM AIR CONDITIONER

Products

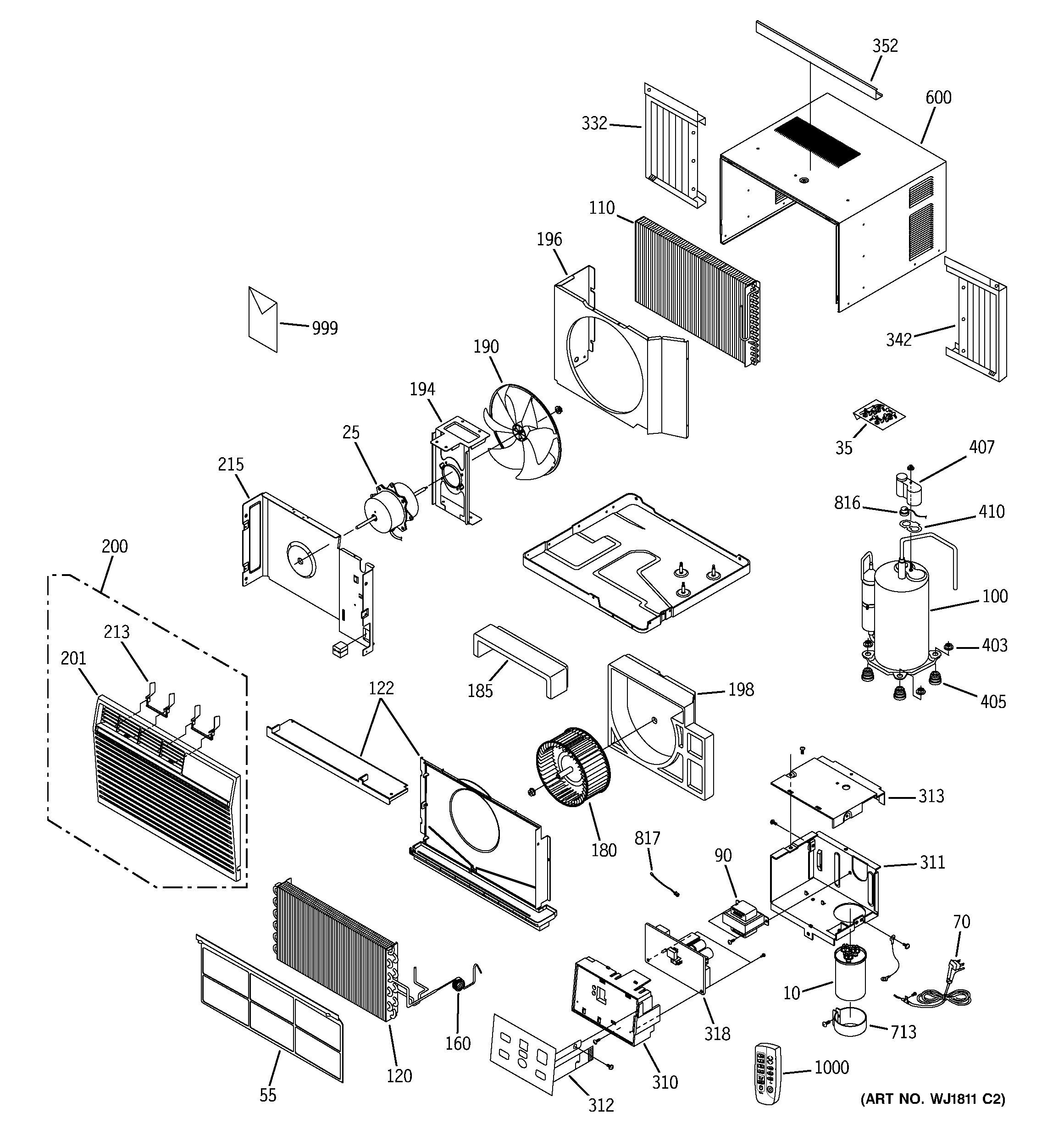

Position	Product
10	GEN WJ20X10034
25	GEN WJ94X10130
35	GEN WJ86X10037
55	GEN WJ85X10035
70	GEN WJ35X10039
90	GEN WJ27X10044
100	GEN WJ98X10070
110	CONDENSER ASS'Y
120	GEN WJ87X10064
122	GEN WJ76X10082
160	CAPILLARY TUBE
180	GEN WJ73X10042
185	GEN WJ76X10083
190	GEN WJ73X10029
194	MOUNTER MOTOR
196	CASE CONDENSER
198	GEN WJ76X10084
200	GEN WJ71X10271
201	GEN WJ71X10272
213	GEN WJ71X10269
215	GEN WJ71X10208
310	GEN WJ07X10070
311	GEN WJ07X10072
312	GEN WJ26X10074
313	GEN WJ07X10071
318	GEN WJ26X10076
332	SHUTTER LEFT ASS'Y
342	SHUTTER RIGHT ASS'Y
352	SHUTTER ANGLE,UP
403	GEN WJ01X10119
405	GEN WJ01X10114
407	COVER-TERMINAL
410	GEN WJ43X10018
600	GEN WJ90X10044
713	GEN WJ03X10023
816	OVER LOAD PROTECTOR
817	GEN WJ28X10029
999	GEN 49-7423
999	GEN 31-60816
1000	REMOCON ASS'Y
