ASW18DAS1 ROOM AIR CONDITIONER

ASW18DAS1 ROOM AIR CONDITIONER

Written by

in

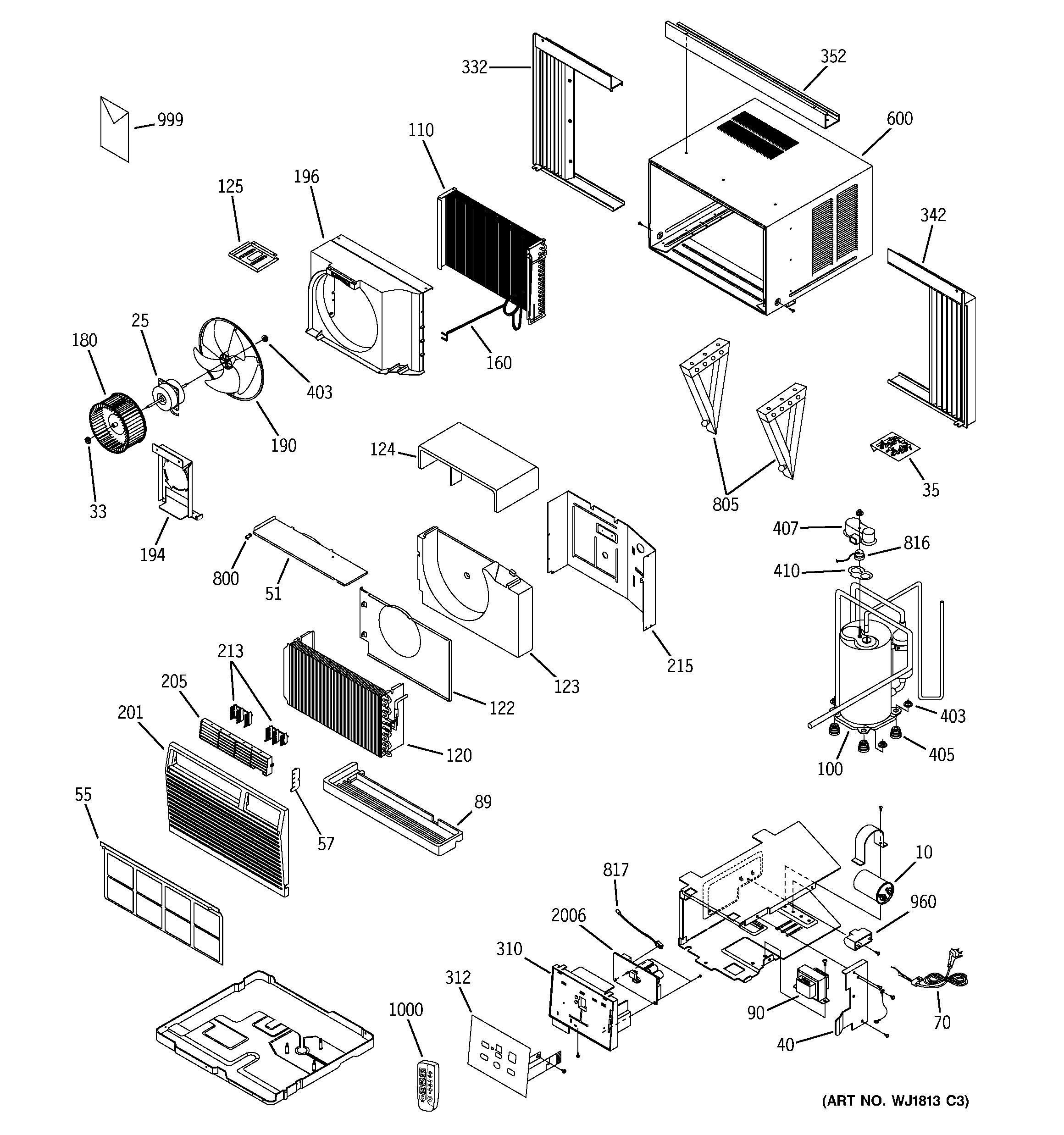

ASW18DAS1 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10050
25	MOTOR(YSK160-6A)
33	GEN WJ01X10147
35	GEN WJ01X10181
40	GEN WJ66X10049
51	GEN WJ66X10045
55	FILTER
70	GEN WJ35X10045
89	GEN WJ89X10036
90	GEN WJ27X10045
100	GEN WJ98X10049
110	GEN WJ88X10089
120	GEN WJ87X10094
122	GEN WJ73X10052
123	GEN WJ73X10053
124	GEN WJ73X10054
125	GEN WJ71X10234
160	GEN WJ53X10064
180	GEN WJ73X10043
190	FAN BLADE – O.D.
194	GEN WJ95X10003
196	CASE-COND
201	PANEL FRONT
205	FRAME BLADE
213	GEN WJ71X10236
215	GEN WJ71X10237
310	GEN WJ26X10082
312	GEN WJ26X10083
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
403	GEN WJ01X10119
405	GROMMET-ISOLATOR
407	COVER-TERMINAL
410	GEN WJ43X10018
600	GEN WJ90X10033
800	GEN WJ71X10239
805	GEN WJ66X10046
816	GEN WJ23X10029
817	GEN WJ28X10029
960	GEN WJ20X10051
999	GEN 49-7425
999	GEN 31-60820
1000	REMOCON ASS'Y
2006	GEN WJ26X10080
