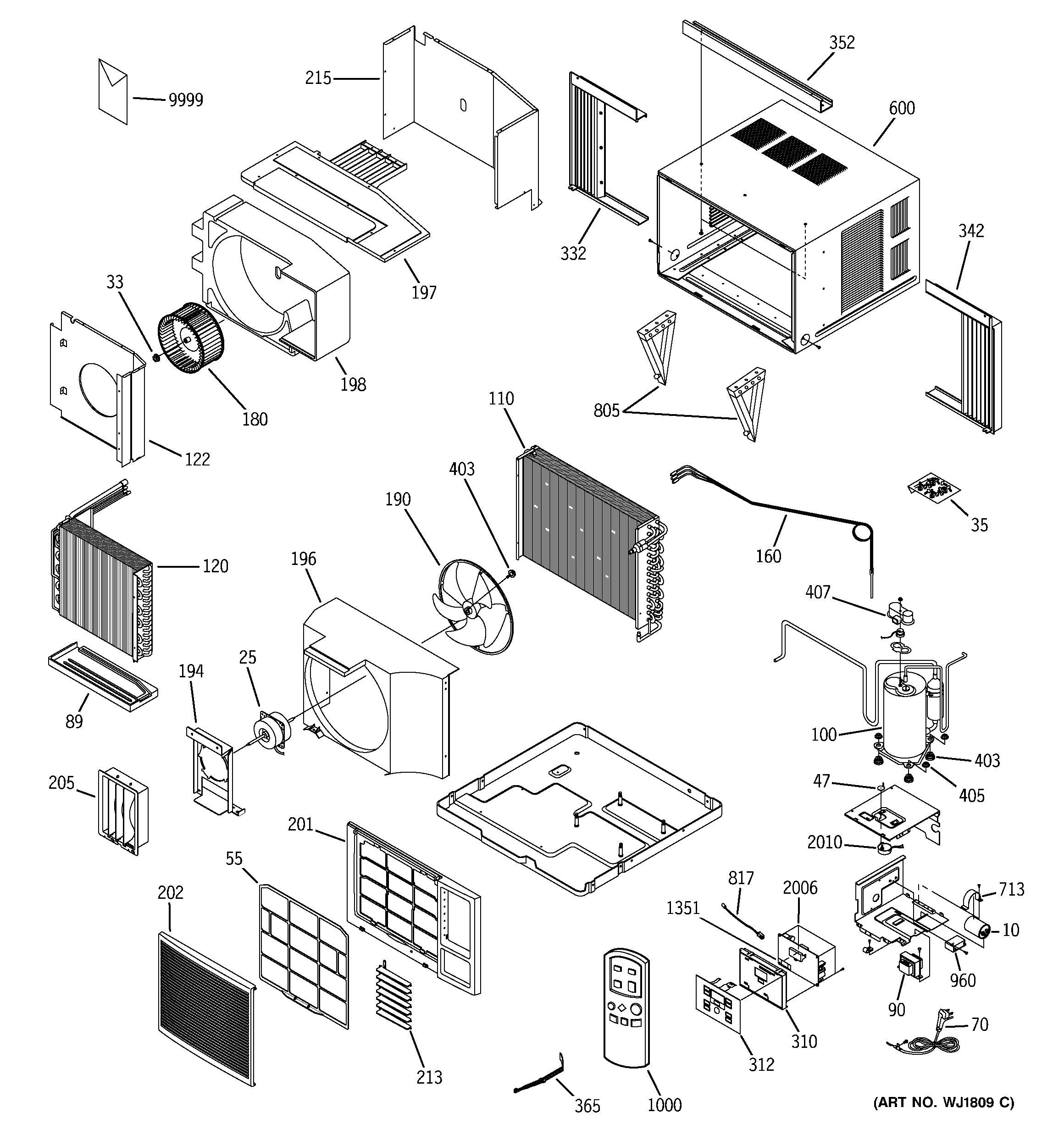

ASW24DBS1 ROOM AIR CONDITIONER

Products

Position	Product
10	GEN WJ20X10076
25	MOTOR(YSK160-6A)
33	GEN WJ01X10147
35	GEN WJ01X10181
47	GEN WJ01X10144
55	GUARD AIR-FILTER
70	GEN WJ35X10042
89	TRAY-DRAIN
90	GEN WJ27X10045
100	GEN WJ98X10095
110	GEN WJ88X10090
120	GEN WJ87X10095
122	GEN WJ76X10061
160	GEN WJ53X10065
180	GEN WJ73X10043
190	FAN BLADE – O.D.
194	GEN WJ95X10003
196	CASE-COND
197	GEN WJ01X10111
198	GEN WJ76X10087
201	GRILLE FRAME
202	GRILLE AIR INLET
205	GEN WJ71X10215
213	LOUVERS HORIZONTAL
215	GEN WJ71X10292
310	GEN WJ26X10085
312	GEN WJ26X10086
332	SHUTTER,LF
342	SHUTTER,RH
352	SHUTTER-ANGLE UPP
365	GEN WJ14X10019
403	GEN WJ01X10119
405	GEN WJ01X10182
407	COVER-TERMINAL
600	GEN WJ90X10033
713	CLIP-CAPACITOR
805	GEN WJ66X10046
817	GEN WJ28X10029
960	GEN WJ20X10051
1000	GEN WJ26X10087
1351	FUSE 3.15A
2006	GEN WJ26X10088
2010	GEN WJ94X10071
9999	GEN 31-60821
9999	GEN 49-7425
