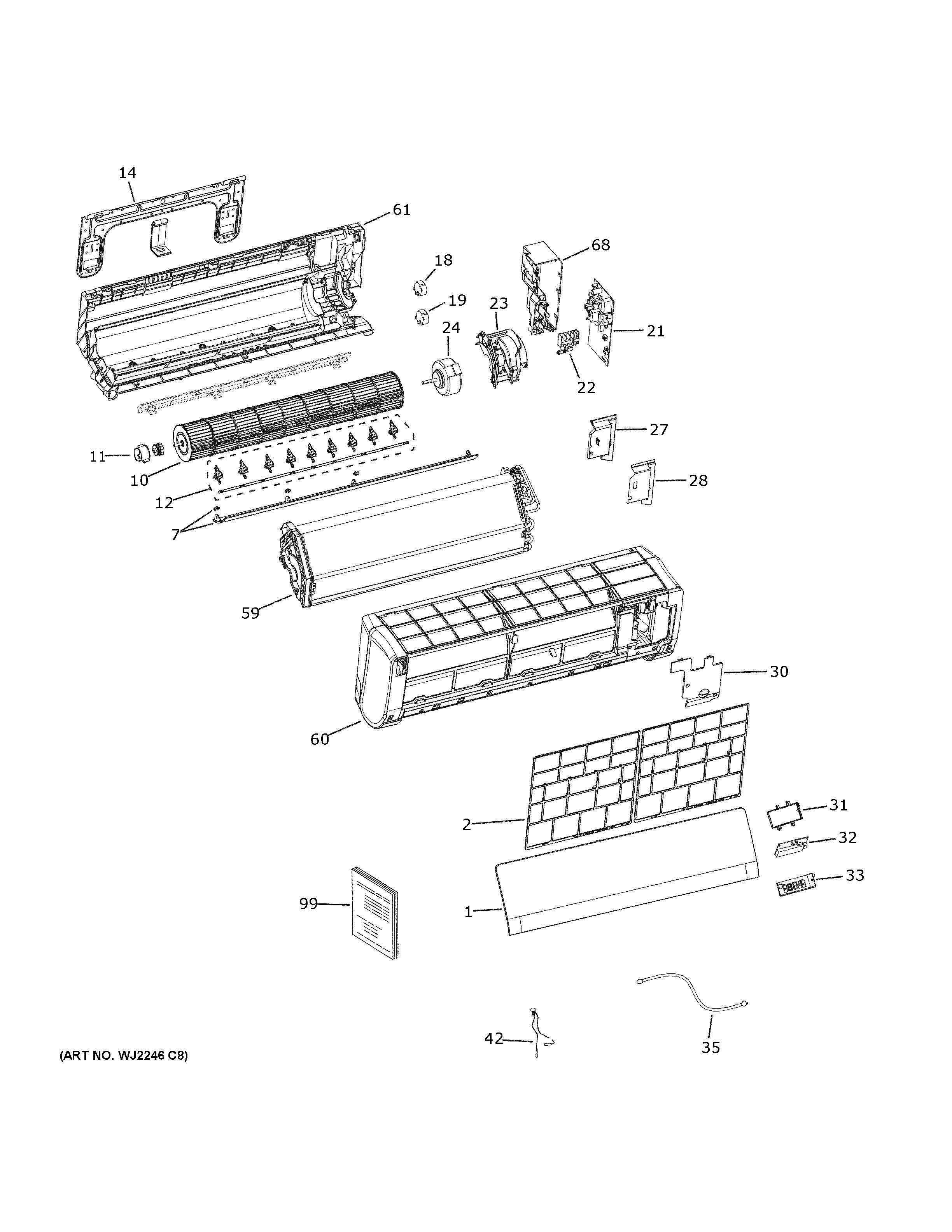

ASYW09PRDWB ROOM AIR CONDITIONER

Products

PositionProduct
1TOP COVER
2WJ85X30473 GE Air Filter
7WJ71X23034 GE Horizontal Louvre
10WJ73X23027 GE Fan Cross Flow
11WJ73X23028 GE Fan Cross Flow Bearing
12WJ71X23045 GE Vertical Louvre
14REAR BRACKET
18WJ94X23041 GE Louver Motor Horizontal
19WJ94X23040 GE Vertical Louver Motor
21WJ26X23142 GE Indoor Control Board Power
22WJ26X23043 GE Terminal Block
23WJ76X23036 GE Indoor Motor Cover
24WJ94X23035 GE Indoor Motor
27ELECTRICAL BOX COVER (PLASTIC)
28WJ76X24360 GE Electrical Box Cover (Metal)
30COVER
31WJ76X23235 GE Display Board Assembly
32WJ26X23236 GE Display Panel
33DISPLAY BOARD COVER
35WJ35X23134 GE Wiring Harness
42WJ26X23042 GE Temperature Sensor Assembly
59EVAPORATOR COIL
60WJ76X31374 GE Casing Assembly
61WJ71X24719 GE Washer Evaporator Case Assembly with Drain Pan
68ELECTRICAL BOX
99PM INSTALL INSTRUCTIONS
99PM OWNERS MANUAL
