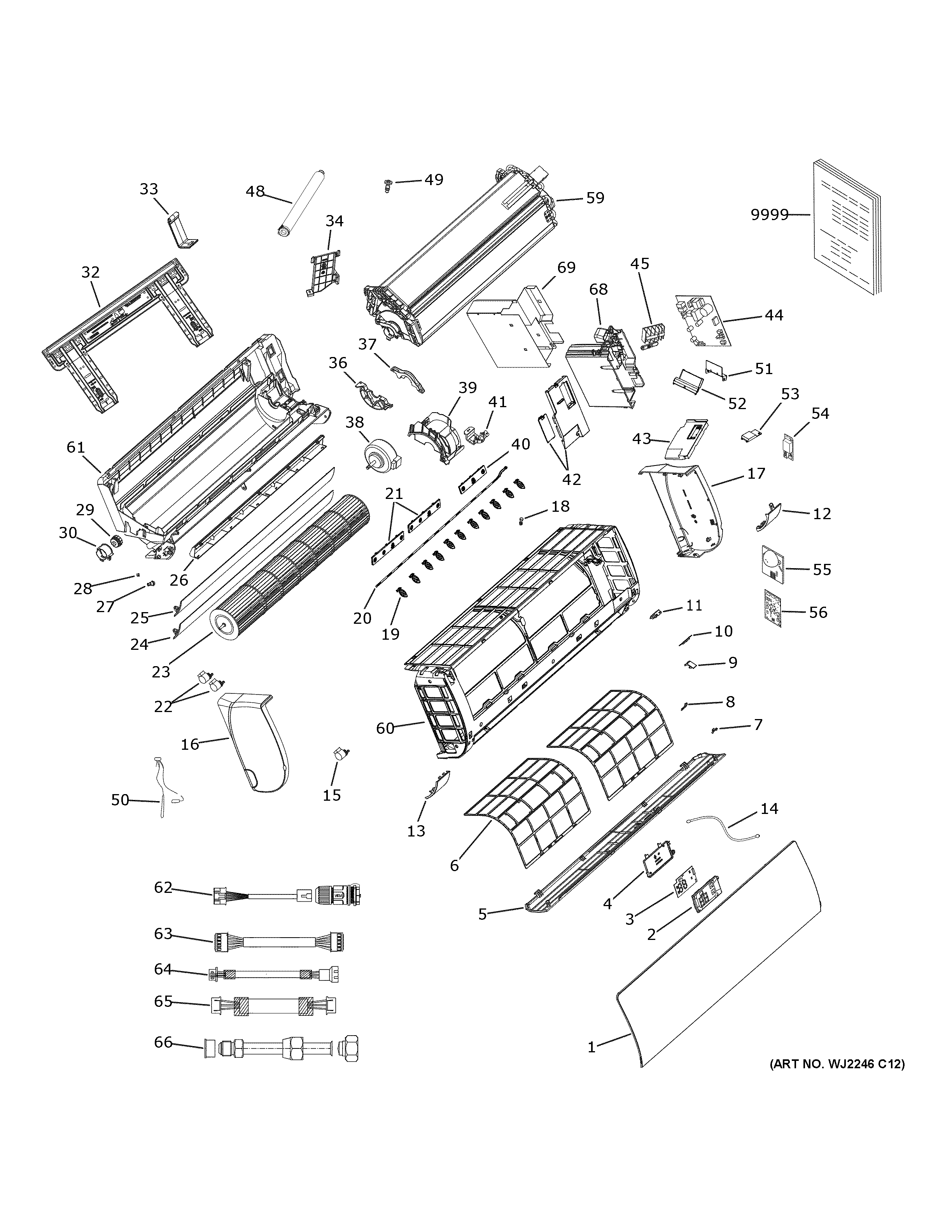

ASYW09URDEB1 ROOM AIR CONDITIONER

Products

Position	Product
1	FRONT COVER
2	WJ76X26408 GE Display Board Assembly
3	WJ26X26460 GE Display Panel
4	WJ76X26409 GE Display Board Cover
5	BOTTOM ACESS PANEL
6	WJ85X26432 GE Air Filter
7	WJ01X26403 GE Panel Latch
8	WJ01X26404 GE Pin
9	WJ76X26411 GE Cover Screw
10	POWER SWITCH
11	WJ76X26407 GE Power Switch Box
12	WJ76X26456 GE Right Cover
13	WJ76X26413 GE Left Cover
14	WJ35X33413 GE PCB Display Wire Harness
15	WJ94X26439 GE Vertical Motor Louver
16	LEFT END PANEL
17	RIGHT END PANEL
18	WJ01X26402 GE Connecting Rod Link
19	WJ71X26420 GE Vertical Louver
20	WJ01X26421 GE Connecting Rod
21	WJ71X29739 GE 4-Hole Louver Socket
22	WJ94X26438 GE Dishwasher Horizontal Louver Motor
23	CROSS FLOW FAN
24	HORIZONTAL LOUVER
25	WJ71X26415 GE Louver Horizontal
26	WJ76X29800 GE Wire Cover Washer
27	WJ01X26410 GE Louver Motor Adapter
28	WJ01X24240 GE Louver Bushing
29	WJ73X23028 GE Fan Cross Flow Bearing
30	CROSS FLOW FAN BEARING COVER
32	MOUNTING BRACKET
33	WJ65X29559 GE Drain Pipe Bracket
34	WJ76X29799 GE Channel Cover Pipe
36	WJ65X26400 GE Motor Bracket
37	WJ65X25953 GE Motor Bracket
38	WJ94X23249 GE Indoor Fan Motor
39	WJ76X26494 GE Indoor Motor Cover
40	WJ71X29740 GE Louver Socket 5 Hole
41	WJ65X26406 GE Vertical Louver Motor Bracket
42	WJ76X29557 GE Metal Cover
43	WJ76X28918 GE Cover Board
44	WJ26X33216 GE Indoor Power Control Board
45	WJ26X23043 GE Terminal Block
48	WJ53X23256 GE Drain Pipe
49	WJ01X26401 GE Drain Plug
50	WJ26X23042 GE Temperature Sensor Assembly
51	ELECTRIC BOX COVER 1
52	ELECTRIC BOX COVER 2
53	WIFI MODULE COVER
54	WJ26X32653 GE Wi-Fi Module
55	OCUPANCY SENSOR
56	WJ26X26464 GE Wired Control Adapter Board
59	WJ87X31372 GE Evaporator Coil
60	WJ76X28916 GE Casing Assembly
61	WJ71X33092 GE Evaporator Case Assembly with Drain Pan
62	RJ45
63	WiFi WIRING HARNESS
64	WJ35X27135 GE Wiring Harness
65	WJ35X27136 GE Wiring Harness
66	WJ01X27116 GE 1/2" X 3/8" Adapter
68	WJ76X31365 GE Box Electrical
69	WJ76X31355 GE Electrical Box Protector
9999	GEN 495000491
