ASYW09URDWA ROOM AIR CONDITIONER

Products

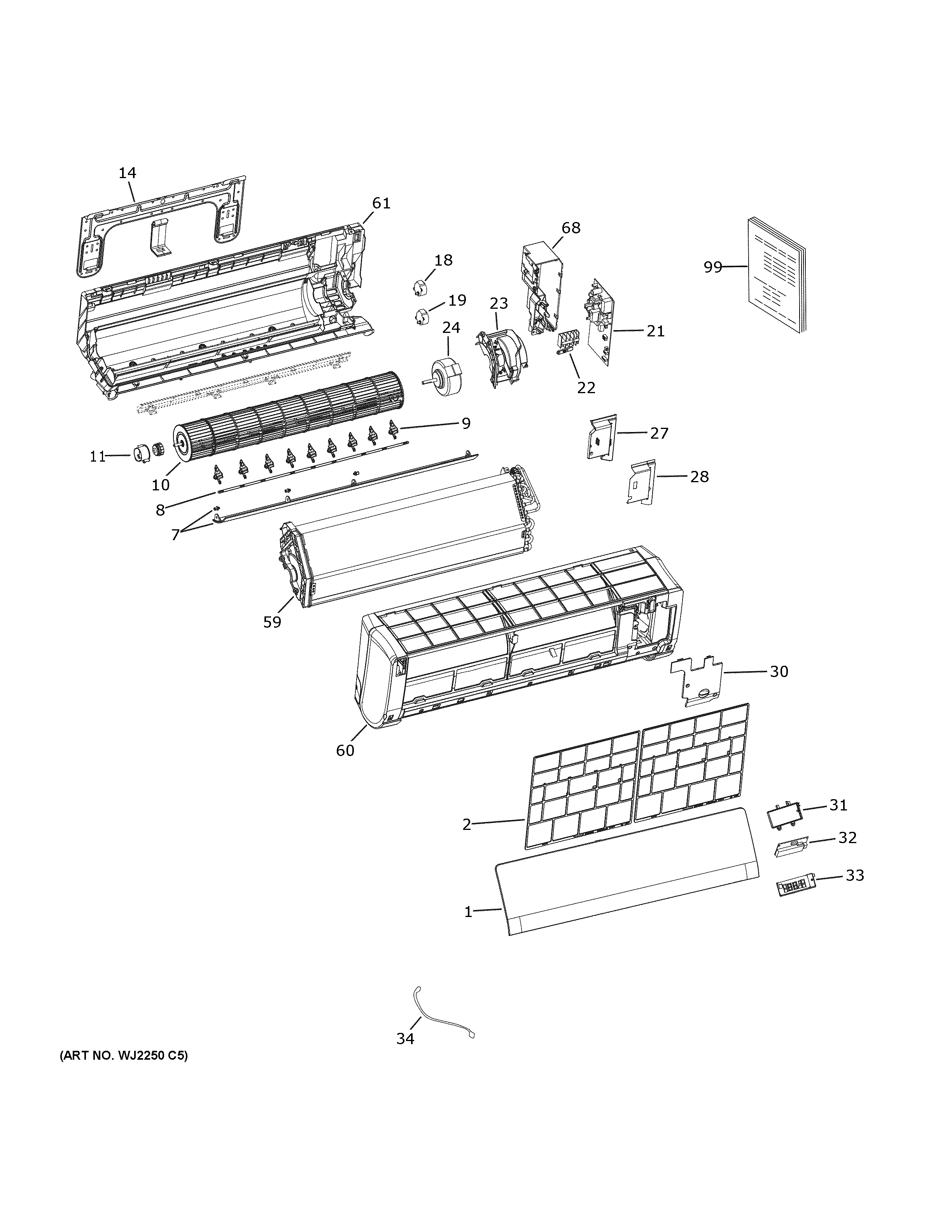

Position	Product
1	WJ71X25433 GE Top Cover
2	WJ85X30473 GE Air Filter
7	WJ71X23034 GE Horizontal Louvre
8	WJ65X23033 GE Connecting Rod
9	WJ71X23045 GE Vertical Louvre
10	WJ73X23027 GE Fan Cross Flow
11	WJ73X23028 GE Fan Cross Flow Bearing
14	REAR BRACKET
18	WJ94X23041 GE Louver Motor Horizontal
19	WJ94X23040 GE Vertical Louver Motor
21	WJ26X25213 GE Indoor Power Control Board
22	WJ26X23043 GE Terminal Block
23	WJ76X23036 GE Indoor Motor Cover
24	WJ94X23035 GE Indoor Motor
27	ELECTRICAL BOX COVER (PLASTIC)
28	WJ76X24360 GE Electrical Box Cover (Metal)
30	COVER
31	WJ76X23235 GE Display Board Assembly
32	WJ26X23236 GE Display Panel
33	DISPLAY BOARD COVER
34	WJ26X23042 GE Temperature Sensor Assembly
59	EVAPORATOR COIL
60	WJ76X31374 GE Casing Assembly
61	WJ71X24719 GE Washer Evaporator Case Assembly with Drain Pan
68	ELECTRICAL BOX
99	PM OWNERS MANUAL
