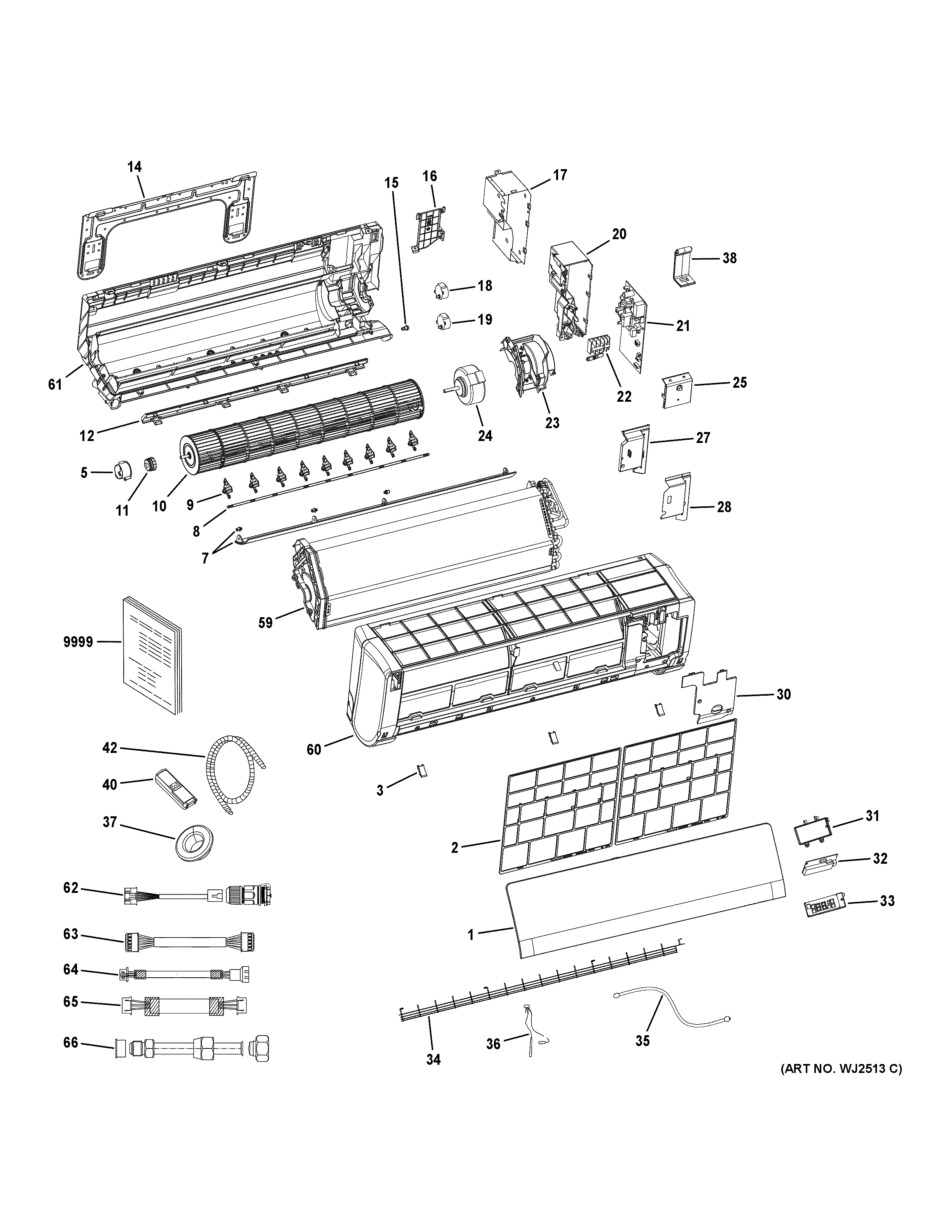

ASYW12PRDBB1 ROOM AIR CONDITIONERadmin2025-04-26T08:46:16+00:00ASYW12PRDBB1 ROOM AIR CONDITIONER ProductsPositionProduct1WJ71X25433 GE Top Cover2AIR FILTER3SCREW COVER5CROSS FLOW FAN BEARING COVER7WJ71X23034 GE Horizontal Louvre8CONNECTING ROD9LOUVERS10WJ73X23027 GE Fan Cross Flow11WJ73X23028 GE Fan Cross Flow Bearing12WJ65X33083 GE Wire Cover14REAR BRACKET15WJ01X24235 GE Shaft Jacket16WJ76X29674 GE Pipe Channel Cover17WJ76X31354 GE Electrical Box Protector18WJ94X23041 GE Louver Motor Horizontal19WJ94X23040 GE Vertical Louver Motor20ELECTRIC BOX21WJ26X33178 GE Indoor Power Control Board22WJ26X23043 GE Terminal Block23WJ76X23036 GE Indoor Motor Cover24WJ94X23035 GE Indoor Motor25WJ76X31356 GE Electrical Box27ELECTRICAL BOX COVER (PLASTIC)28WJ76X26713 GE Electrical Box Cover (Metal)30COVER31WJ76X23235 GE Display Board Assembly32WJ26X23236 GE Display Panel33DISPLAY BOARD COVER34WJ71X33033 GE Outlet Guard35WJ35X23134 GE Wiring Harness36WJ26X23042 GE Temperature Sensor Assembly37WJ53X28913 GE Ring Guard38DRAIN PIPE BRACKET40WJ01X25115 GE Remote Control Unit42DRAIN HOSE59EVAPORATOR COIL60WJ76X31374 GE Casing Assembly61WJ71X33091 GE Vertical Louvre Assembly62RJ4563WiFi WIRING HARNESS64WJ35X27135 GE Wiring Harness65WJ35X27136 GE Wiring Harness66WJ01X27116 GE 1/2" X 3/8" Adapter9999PM INSTALL INSTRUCTIONS9999PM OWNERS MANUAL
