ASYW18CRDDA1 ROOM AIR CONDITIONER

ASYW18CRDDA1 ROOM AIR CONDITIONER

Written by

in

ASYW18CRDDA1 ROOM AIR CONDITIONER

Products

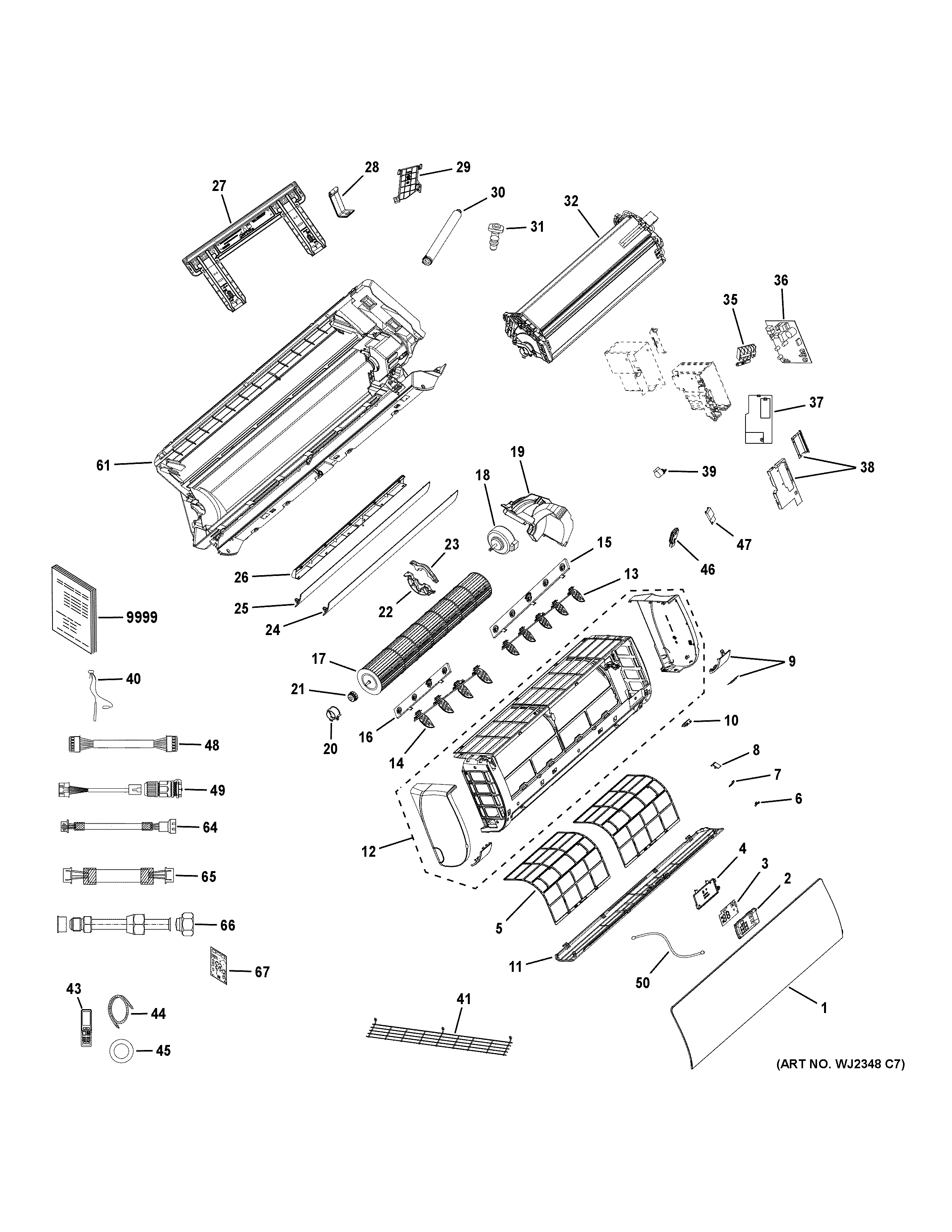

PositionProduct
1WJ71X29913 GE Access Panel
2WJ76X26408 GE Display Board Assembly
3WJ26X26460 GE Display Panel
4WJ76X27413 GE Display Box Cover
5WJ85X26432 GE Air Filter
6WJ01X26403 GE Panel Latch
7WJ01X26404 GE Pin
8WJ76X26411 GE Cover Screw
9RIGHT END PANEL
10WJ76X26407 GE Power Switch Box
11BOTTOM ACESS PANEL
12CASING ASSEMBLY
13VERTICAL LOUVRE
14WJ71X29743 GE Vertical Louvre
15WJ71X29740 GE Louver Socket 5 Hole
16WJ71X29739 GE 4-Hole Louver Socket
17CROSS FLOW FAN
18WJ94X23249 GE Indoor Fan Motor
19WJ76X26494 GE Indoor Motor Cover
20CROSS FLOW FAN BEARING COVER
21WJ73X23028 GE Fan Cross Flow Bearing
22WJ65X26400 GE Motor Bracket
23WJ65X25953 GE Motor Bracket
24HORIZONTAL LOUVER
25WJ71X26415 GE Louver Horizontal
26WJ76X29800 GE Wire Cover Washer
27MOUNTING BRACKET
28WJ65X29559 GE Drain Pipe Bracket
29WJ76X29799 GE Channel Cover Pipe
30WJ53X23256 GE Drain Pipe
31WJ01X26401 GE Drain Plug
32WJ87X29748 GE Evaporator Assembly
35WJ26X23043 GE Terminal Block
36WJ26X29034 GE Indoor PCB
37WJ76X28918 GE Cover Board
38WJ76X29557 GE Metal Cover
39WJ94X26439 GE Vertical Motor Louver
40WJ26X23042 GE Temperature Sensor Assembly
41WJ71X29796 GE Outlet Guard
43WJ01X29213 GE Remote Control
44WJ53X29553 GE Drain Hose
45WJ53X28913 GE Ring Guard
46WiFi-module
47WIFI MODULE COVER
48RJ45
49WiFi WIRING HARNESS
50WJ35X33413 GE PCB Display Wire Harness
61WJ71X31822 GE Vertical Louvre Assembly
64WJ35X27135 GE Wiring Harness
65WJ35X27136 GE Wiring Harness
66WJ01X27116 GE 1/2" X 3/8" Adapter
67WJ26X26464 GE Wired Control Adapter Board
9999PM OWNERS MANUAL
9999PM OWNERS MANUAL
