ASYW18URDEB1 ROOM AIR CONDITIONER

ASYW18URDEB1 ROOM AIR CONDITIONER

Written by

in

ASYW18URDEB1 ROOM AIR CONDITIONER

Products

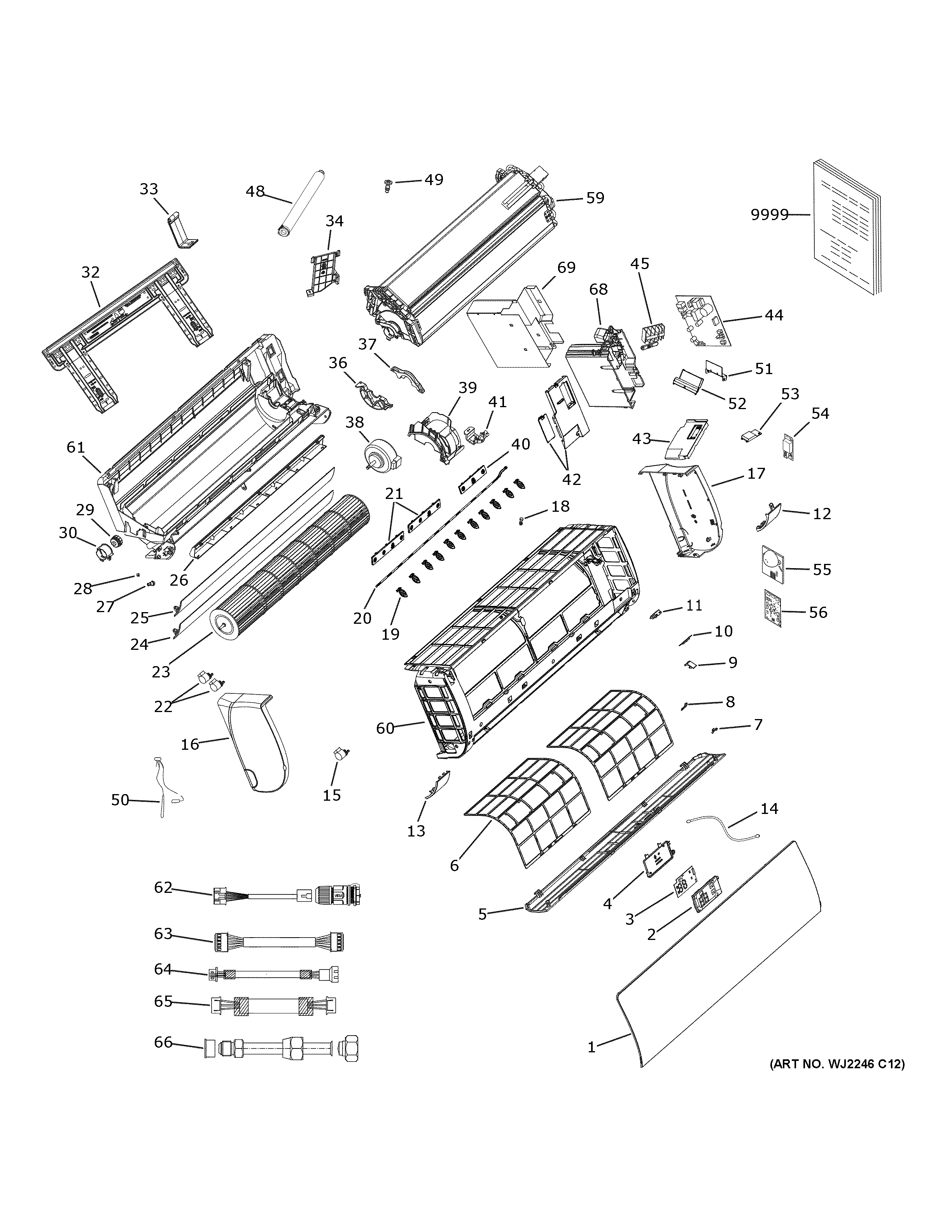

Position	Product
1	FRONT COVER
2	WJ76X26408 GE Display Board Assembly
3	WJ26X26460 GE Display Panel
4	WJ76X26409 GE Display Board Cover
5	BOTTOM ACESS PANEL
6	WJ85X26433 GE Air Filter
7	WJ01X26403 GE Panel Latch
8	WJ01X26404 GE Pin
9	WJ76X26422 GE Cover Screw
10	POWER SWITCH
11	WJ76X26407 GE Power Switch Box
12	WJ76X26425 GE Right Cover
13	WJ76X26424 GE Left Cover
14	WJ35X33413 GE PCB Display Wire Harness
15	WJ94X26439 GE Vertical Motor Louver
16	WJ71X26428 GE Left End Panel
17	WJ71X26429 GE Right End Panel
18	WJ01X26402 GE Connecting Rod Link
19	WJ71X26420 GE Vertical Louver
20	WJ01X29697 GE Connecting Rod
21	WJ71X29741 GE Louver Socket 4 Hole
22	WJ94X26438 GE Dishwasher Horizontal Louver Motor
23	WJ73X23255 GE Cross Flow Fan
24	WJ71X26427 GE Horizontal Louver
25	WJ71X26426 GE Horizontal Louver Assembly
26	WIRE COVER
27	WJ01X26410 GE Louver Motor Adapter
28	WJ01X24240 GE Louver Bushing
29	WJ73X23028 GE Fan Cross Flow Bearing
30	CROSS FLOW FAN BEARING COVER
32	MOUNTING BRACKET
33	WJ65X29559 GE Drain Pipe Bracket
34	PIPE CHANEL COVER
36	WJ65X26399 GE Motor Bracket – Bottom
37	WJ65X26398 GE Top Motor Bracket
38	WJ94X23054 GE Indoor Motor Assembly
39	WJ76X26430 GE Indoor Motor Cover
40	WJ71X29742 GE 5-Hole Louver Socket
41	WJ65X26406 GE Vertical Louver Motor Bracket
42	WJ76X29558 GE Metal Cover
43	WJ76X29564 GE Cover Board
44	WJ26X33216 GE Indoor Power Control Board
45	WJ26X23043 GE Terminal Block
48	WJ53X23256 GE Drain Pipe
49	WJ01X26401 GE Drain Plug
50	WJ26X23042 GE Temperature Sensor Assembly
51	ELECTRIC BOX COVER 1
52	ELECTRIC BOX COVER 2
53	WIFI MODULE COVER
54	WJ26X32653 GE Wi-Fi Module
55	OCUPANCY SENSOR
56	WJ26X26464 GE Wired Control Adapter Board
59	EVAPORATOR COIL
60	WJ71X31363 GE Casing Assembly
61	WJ71X31364 GE Vertical Louvre Assembly
62	RJ45
63	WiFi WIRING HARNESS
64	WJ35X27135 GE Wiring Harness
65	WJ35X27136 GE Wiring Harness
66	WJ01X27116 GE 1/2" X 3/8" Adapter
68	WJ76X31366 GE Electrical Box
69	GEN WJ76X33074
9999	GEN 495000491
