ASYW24CRDDA1 ROOM AIR CONDITIONER

ASYW24CRDDA1 ROOM AIR CONDITIONER

Written by

in

ASYW24CRDDA1 ROOM AIR CONDITIONER

Products

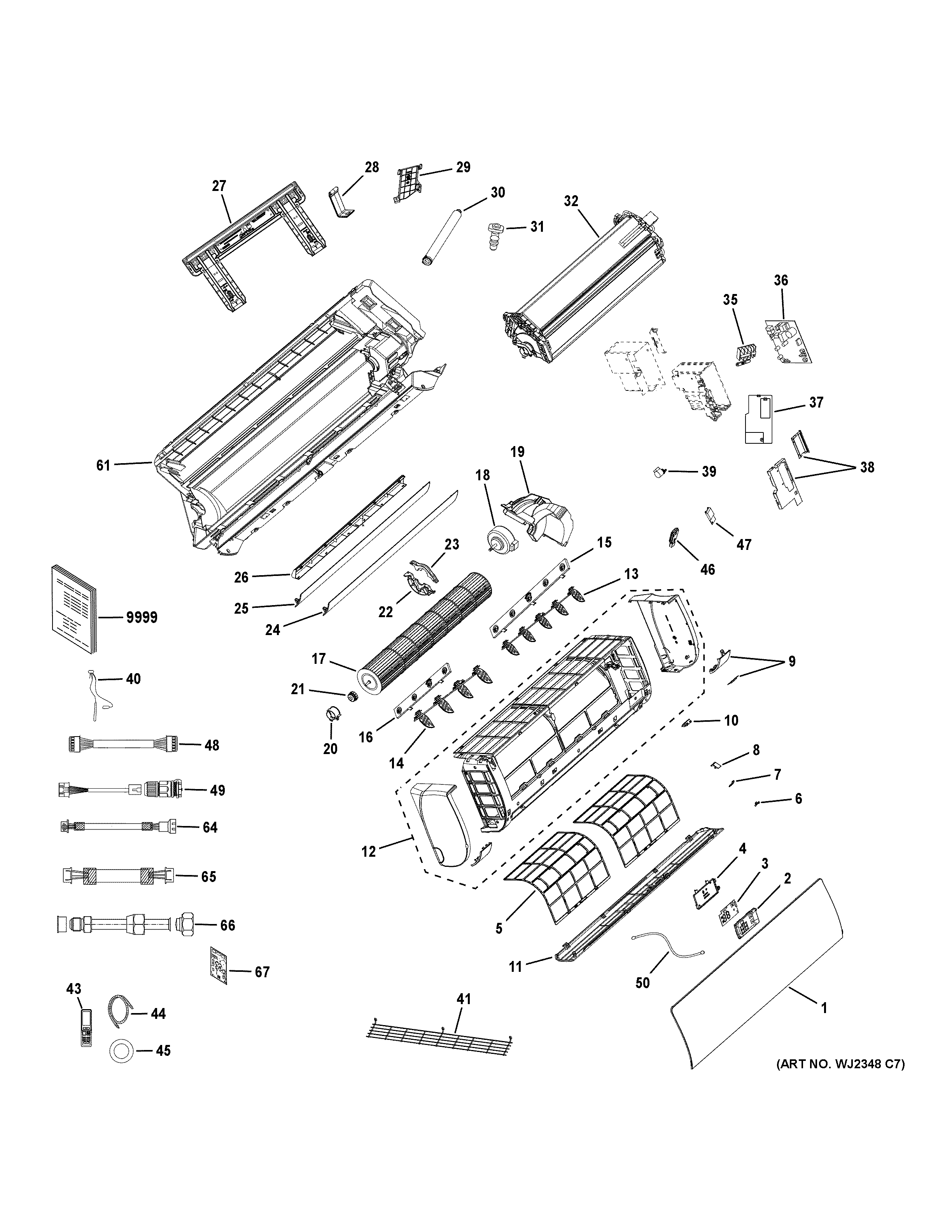

PositionProduct
1WJ71X29914 GE Access Panel
2WJ76X26408 GE Display Board Assembly
3WJ26X26460 GE Display Panel
4WJ76X27413 GE Display Box Cover
5WJ85X26433 GE Air Filter
6WJ01X26403 GE Panel Latch
7WJ01X26404 GE Pin
8WJ76X26422 GE Cover Screw
9WJ76X29752 GE Right Cover
10WJ76X26407 GE Power Switch Box
11BOTTOM ACESS PANEL
12WJ71X29751 GE Casing Assembly
13WJ71X29746 GE Vertical Louvre
14WJ71X29745 GE Louvre Vertical
15WJ71X29742 GE 5-Hole Louver Socket
16WJ71X29741 GE Louver Socket 4 Hole
17WJ73X23255 GE Cross Flow Fan
18WJ94X23054 GE Indoor Motor Assembly
19WJ76X26430 GE Indoor Motor Cover
20CROSS FLOW FAN BEARING COVER
21WJ73X23028 GE Fan Cross Flow Bearing
22WJ65X26399 GE Motor Bracket – Bottom
23WJ65X26398 GE Top Motor Bracket
24WJ71X26426 GE Horizontal Louver Assembly
25WJ71X26427 GE Horizontal Louver
26WIRE COVER
27MOUNTING BRACKET
28WJ65X29559 GE Drain Pipe Bracket
29PIPE CHANEL COVER
30WJ53X23256 GE Drain Pipe
31WJ01X26401 GE Drain Plug
32EVAPORATOR
35WJ26X23043 GE Terminal Block
36WJ26X29034 GE Indoor PCB
37WJ76X29564 GE Cover Board
38WJ76X29558 GE Metal Cover
39WJ94X26439 GE Vertical Motor Louver
40WJ26X23042 GE Temperature Sensor Assembly
41WJ71X29797 GE Guard Outlet
43WJ01X29213 GE Remote Control
44WJ53X29553 GE Drain Hose
45WJ53X28913 GE Ring Guard
46WiFi-module
47WIFI MODULE COVER
48RJ45
49WiFi WIRING HARNESS
50WJ35X33413 GE PCB Display Wire Harness
61WJ71X31823 GE Vertical Louvre Assembly
64WJ35X27135 GE Wiring Harness
65WJ35X27136 GE Wiring Harness
66WJ01X27116 GE 1/2" X 3/8" Adapter
67WJ26X26464 GE Wired Control Adapter Board
9999PM OWNERS MANUAL
9999PM OWNERS MANUAL
