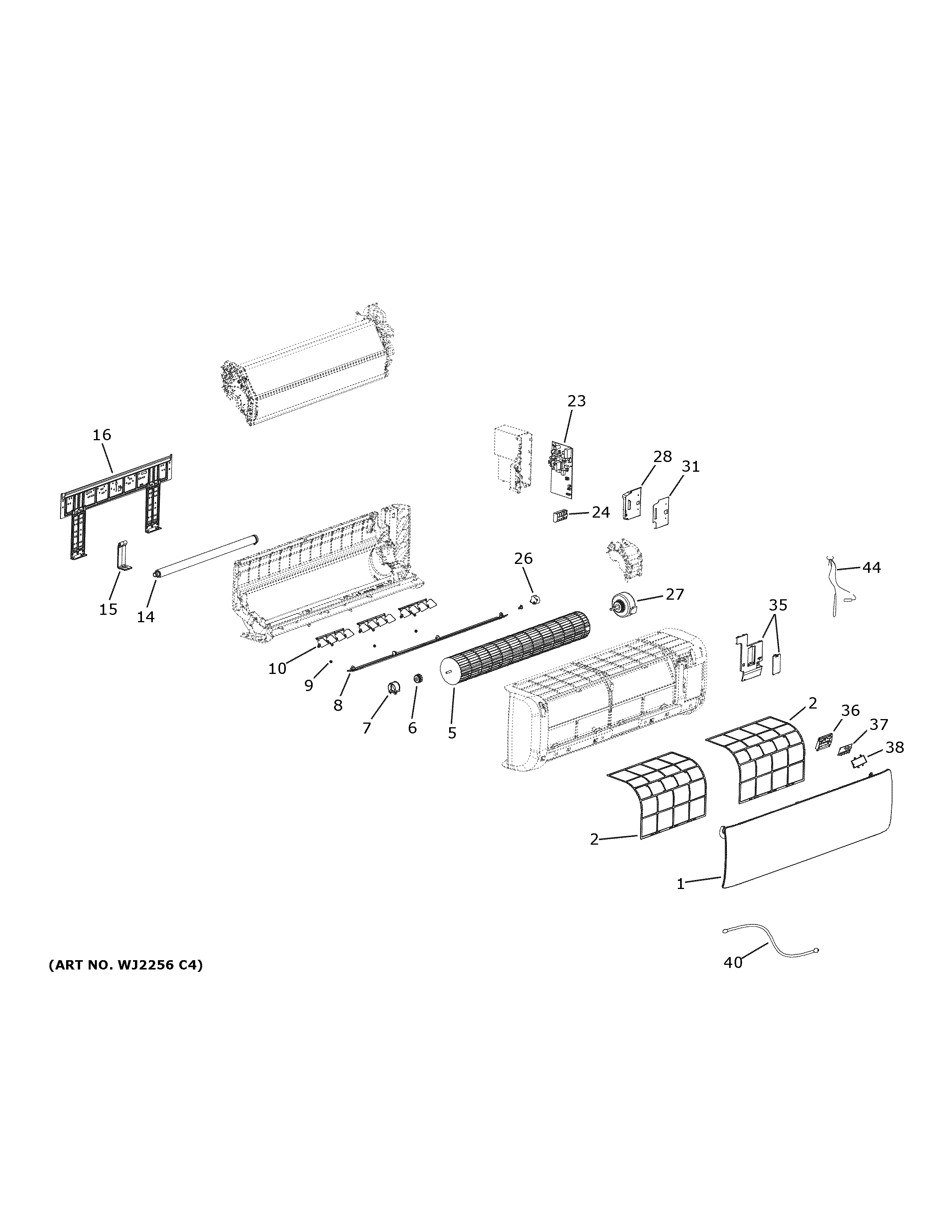

ASYW24CRDWA1 ROOM AIR CONDITIONER

Products

Position	Product
1	TOP PANEL
2	WJ85X23253 GE Air Filter
5	WJ73X23255 GE Cross Flow Fan
6	WJ73X23028 GE Fan Cross Flow Bearing
7	CROSS FLOW FAN BEARING COVER
8	HORIZONTAL LOUVER
9	WJ01X24240 GE Louver Bushing
10	VERTICAL LOUVER
14	WJ53X23256 GE Drain Pipe
15	WJ65X23248 GE Bracket Drain Pipe
16	WJ65X23056 GE Mounting Bracket
23	WJ26X23250 GE Indoor Power Control Board
24	WJ26X23043 GE Terminal Block
26	SWING MOTOR
27	WJ94X23054 GE Indoor Motor Assembly
28	WJ76X24724 GE Electrical Box Cover
31	ELECTRICAL BOX COVER (METAL)
35	BOARD COVER
36	WJ76X23235 GE Display Board Assembly
37	WJ26X23236 GE Display Panel
38	WJ76X25954 GE Display Board Cover
40	WJ35X23134 GE Wiring Harness
44	WJ26X23042 GE Temperature Sensor Assembly
