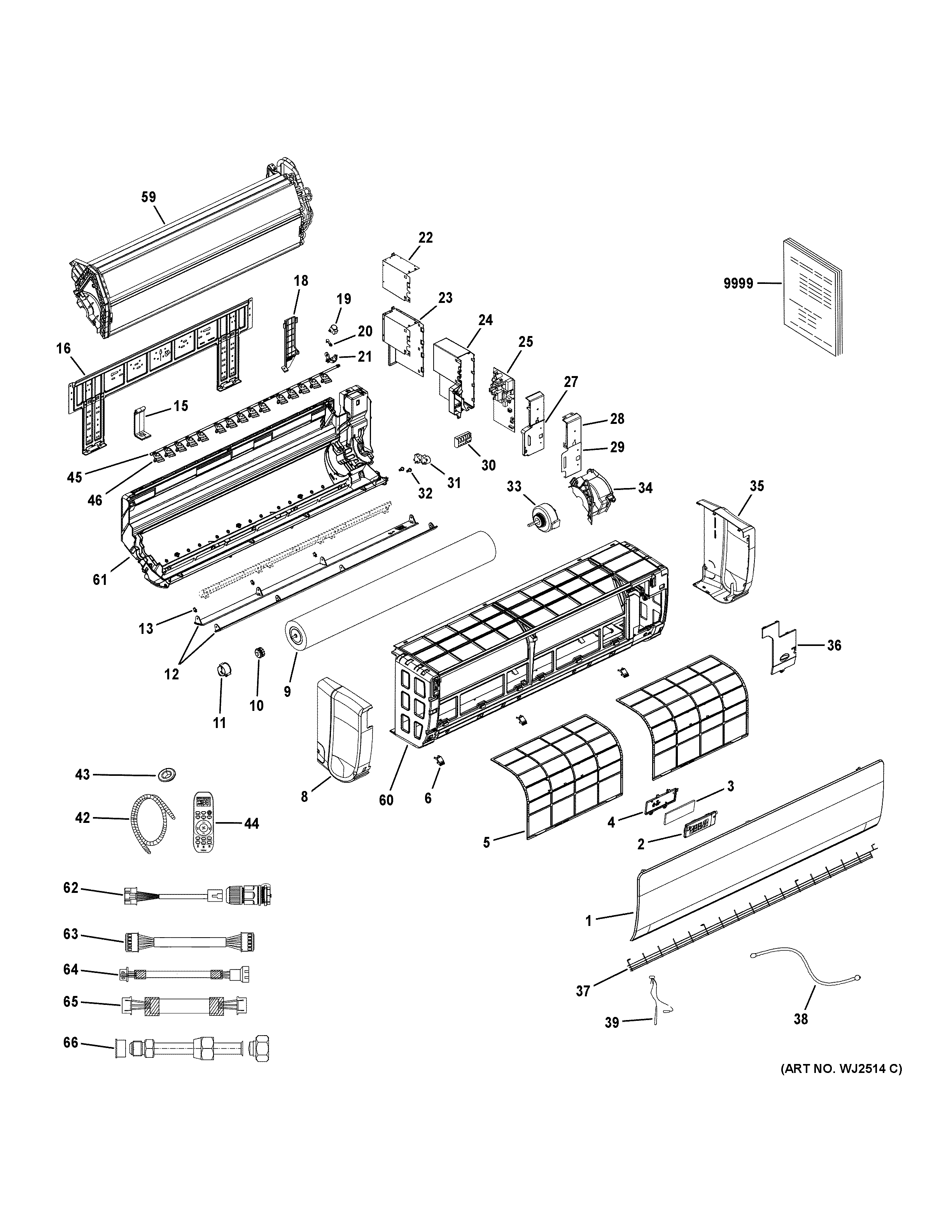

ASYW24PRDBB1 ROOM AIR CONDITIONERadmin2025-04-26T08:45:57+00:00ASYW24PRDBB1 ROOM AIR CONDITIONER ProductsPositionProduct1TOP COVER2DISPLAY BOARD COVER3WJ26X23236 GE Display Panel4WJ76X23235 GE Display Board Assembly5WJ85X23046 GE Air Filter6SCREW COVER8LEFT COVER9WJ73X23049 GE Fan Cross Flow10WJ73X23028 GE Fan Cross Flow Bearing11CROSS FLOW FAN BEARING COVER12WJ71X22765 GE Air Louvre13WJ65X24232 GE Horizontal Louver Bushings15WJ65X29559 GE Drain Pipe Bracket16WJ65X23056 GE Mounting Bracket18PIPE CHANEL COVER19SWING MOTOR20WJ76X23057 GE Power Cable Cover21WJ65X23059 GE Stepper Motor Bracket22WJ76X29662 GE Board Protector23WJ76X31353 GE Electrical Box Protector24WJ76X31361 GE Electrical Box25WJ26X33178 GE Indoor Power Control Board27WJ76X24724 GE Electrical Box Cover28WJ76X29514 GE Cover Protect Board29WJ76X26714 GE Electrical Box Cover30WJ26X23043 GE Terminal Block31WJ94X23058 GE Stepper Motor Horizontal32WJ01X24220 GE Axletree Cover Assembly33WJ94X23054 GE Indoor Motor Assembly34INDOOR MOTOR COVER35RIGHT COVER36COVER BOARD37PROTECT NET38WJ35X23134 GE Wiring Harness39WJ26X23042 GE Temperature Sensor Assembly42DRAIN HOSE43WJ53X28913 GE Ring Guard44WJ01X25115 GE Remote Control Unit45WJ65X33040 GE Appliance Connecting Rod46WJ71X33039 GE Louver59EVAPORATOR COIL60WJ76X31358 GE Casing Assembly61WJ71X33047 GE Indoor Assembly Chassis62RJ4563WiFi WIRING HARNESS64WJ35X27135 GE Wiring Harness65WJ35X27136 GE Wiring Harness66WJ01X27116 GE 1/2" X 3/8" Adapter9999PM INSTALL INSTRUCTIONS9999PM OWNERS MANUAL
