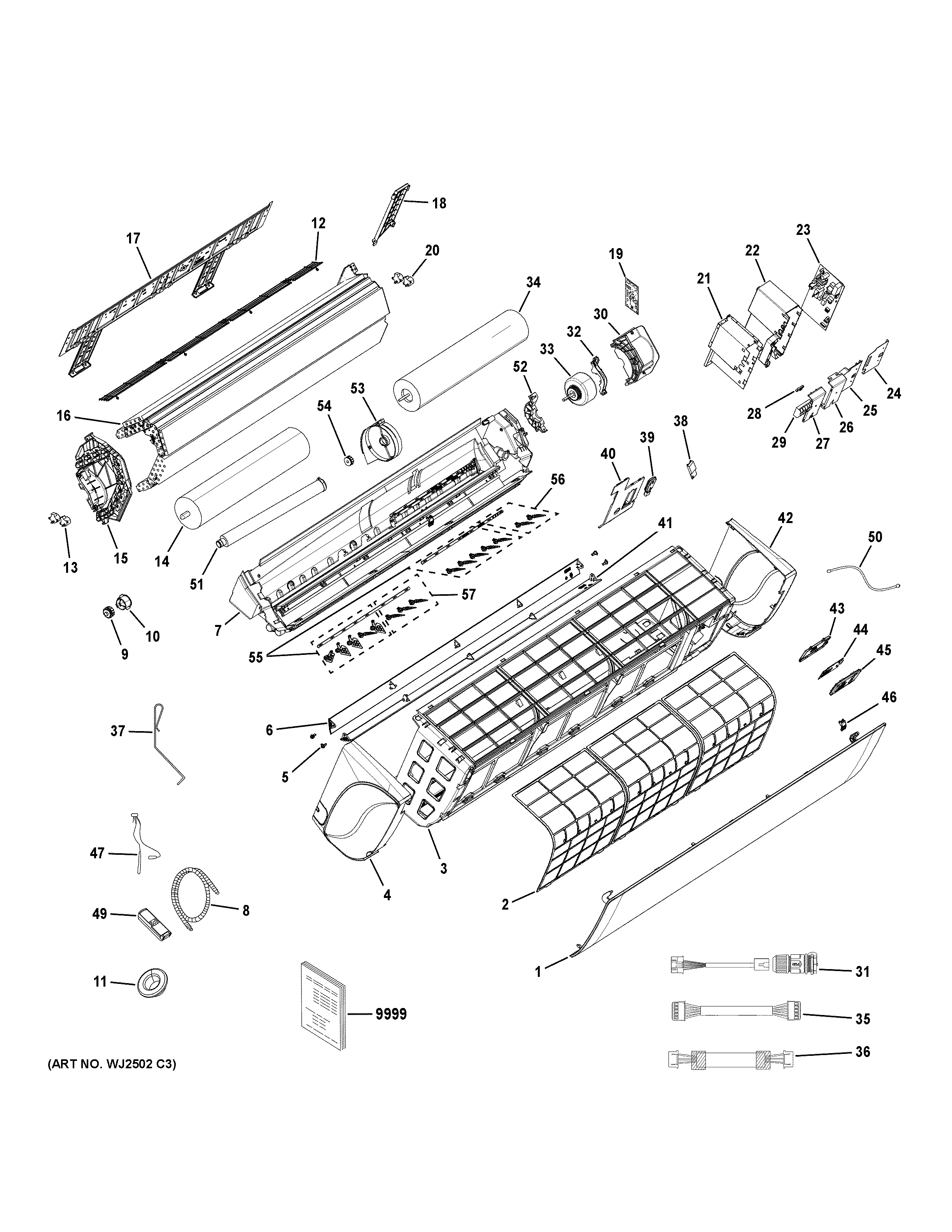

ASYW30TRDFA1 ROOM AIR CONDITIONER

Products

Position	Product
1	TOP PANEL
2	AIR FILTER
3	WJ76X29517 GE Casing
4	WJ71X30533 GE Left End Cap
5	WJ01X24235 GE Shaft Jacket
6	WJ71X24239 GE Flap Assembly
7	WJ71X30722 GE Evap Case Assembly W/Drain Pan
8	DRAIN HOSE
9	CROSS FLOW FAN BEARING
10	CROSS FLOW FAN BEARING COVER
11	WJ53X28913 GE Ring Guard
12	WJ71X29515 GE Fan Guard
13	LH HORIZONTAL LOUVER MOTOR
14	CROSS FLOW FAN RIGHT
15	WJ65X31114 GE Support Evaporator
16	WJ87X29754 GE Evaporator
17	MOUNTING BRACKET
18	WJ65X31113 GE Line Set Plate
19	WJ26X26464 GE Wired Control Adapter Board
20	WJ94X29526 GE Stepper Motor
21	WJ76X29662 GE Board Protector
22	WJ76X29661 GE Electrical Box
23	INDOOR PCB
24	WJ76X29660 GE Electrical Box Cover
25	WJ76X24362 GE Electrical Box Cover
26	WJ76X29514 GE Cover Protect Board
27	WJ76X29516 GE Electric Box Cover Board
28	WJ76X23057 GE Power Cable Cover
29	WJ35X29528 GE Terminal Block
30	WJ76X29520 GE Motor Cover
31	RJ45
32	WJ65X26398 GE Top Motor Bracket
33	INDOOR MOTOR
34	CROSS FLOW FAN LEFT
35	WiFi WIRING HARNESS
36	WJ35X27136 GE Wiring Harness
37	SENSOR CLIP
38	WIFI MODULE COVER
39	WiFi-module
40	WJ71X29524 GE Access Panel
41	WJ94X24391 GE Top Horizontal Louver
42	WJ71X30534 GE Right End Cap
43	WJ76X26408 GE Display Board Assembly
44	WJ26X26460 GE Display Panel
45	WJ76X26409 GE Display Board Cover
46	WJ76X29521 GE Screw Cover
47	WJ26X23042 GE Temperature Sensor Assembly
49	WJ01X29213 GE Remote Control
50	WJ35X33413 GE PCB Display Wire Harness
51	WJ53X29673 GE Drain Hose
52	WJ65X26399 GE Motor Bracket – Bottom
53	WJ65X29522 GE Fan Bracket
54	BEARING 1
55	CONNECTING ROD
56	WJ71X29734 GE Vertical Louver
57	WJ71X30834 GE Vertical Louver Assembly
9999	PM OWNERS MANUAL
9999	PM INSTALL INSTRUCTIONS
