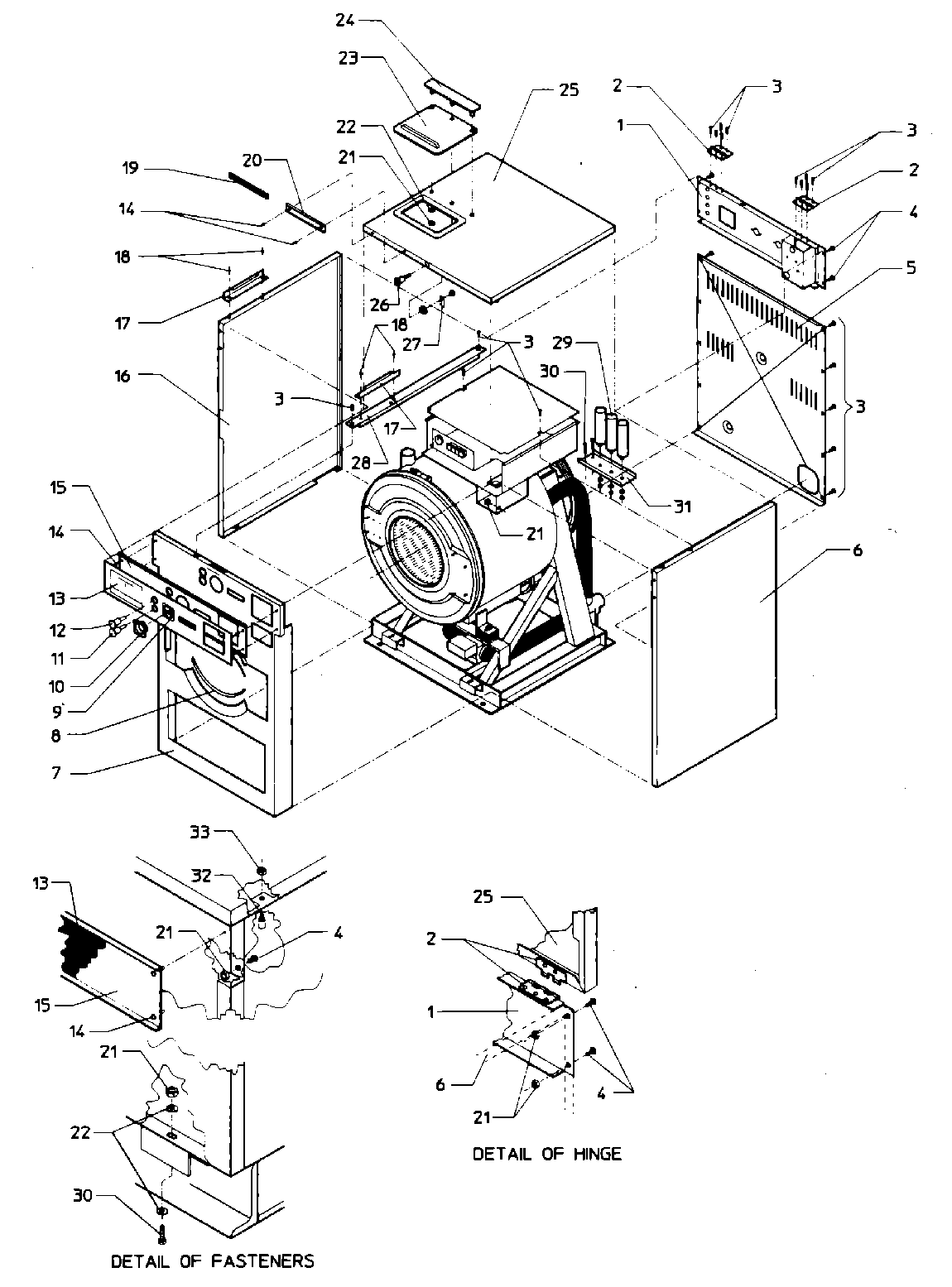

AT18MC1 01 – MAIN EXPLODED VIEW – FINAL ASSEMBLY

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001	MAY 24001170
001	MAY 24001169
002	MAY 24001676
002	HINGE (TAKE APART)
003	MAY 24001301
004	MAY 24001323
005	MAY 24001403
005	MAY Y24001400
006	PANEL KIT, SIDE (RT.)18
006	MAY 24001159
007	PANEL ASSY. (INR. FRNT.)
007	MAY 24001678
008	TRIM, PANEL (INR. FRNT.)
009	MAY 24001679
010	MAY 24001680
011	MAY 24001681
012	MAY 24001682
013	MAY 24001683
013	MAY 24001684
014	MAY 24001533
015	MAY 24001687
016	MAY 24001157
016	MAY 24001155
017	MAY 24001539
018	MAY 24001540
020	MAY 24001671
021	MAY 24001510
022	MAY 24001295
023	COVER, SOAP DISPENSER
024	MAY 24001542
025	DOWEL PIN FOR HANDLE
025	COVER ASSY KIT, TOP
026	MAY 24001220
027	MAY 24001221
028	MAY 24001695
028	MAY 24001690
029	CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
029	CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS)
029	CAPACITOR W/RES. (130MF) (SINGLE PHASE)
029	CAPACITOR (10MF) (W/CENTURY MOTORS)
029	CAPACITOR (100MF) (SINGLE PHASE)
030	MAY 24001303
031	MAY 24001692
031	MAY 24001674
032	MAY 24001305
033	MAY 24001425
