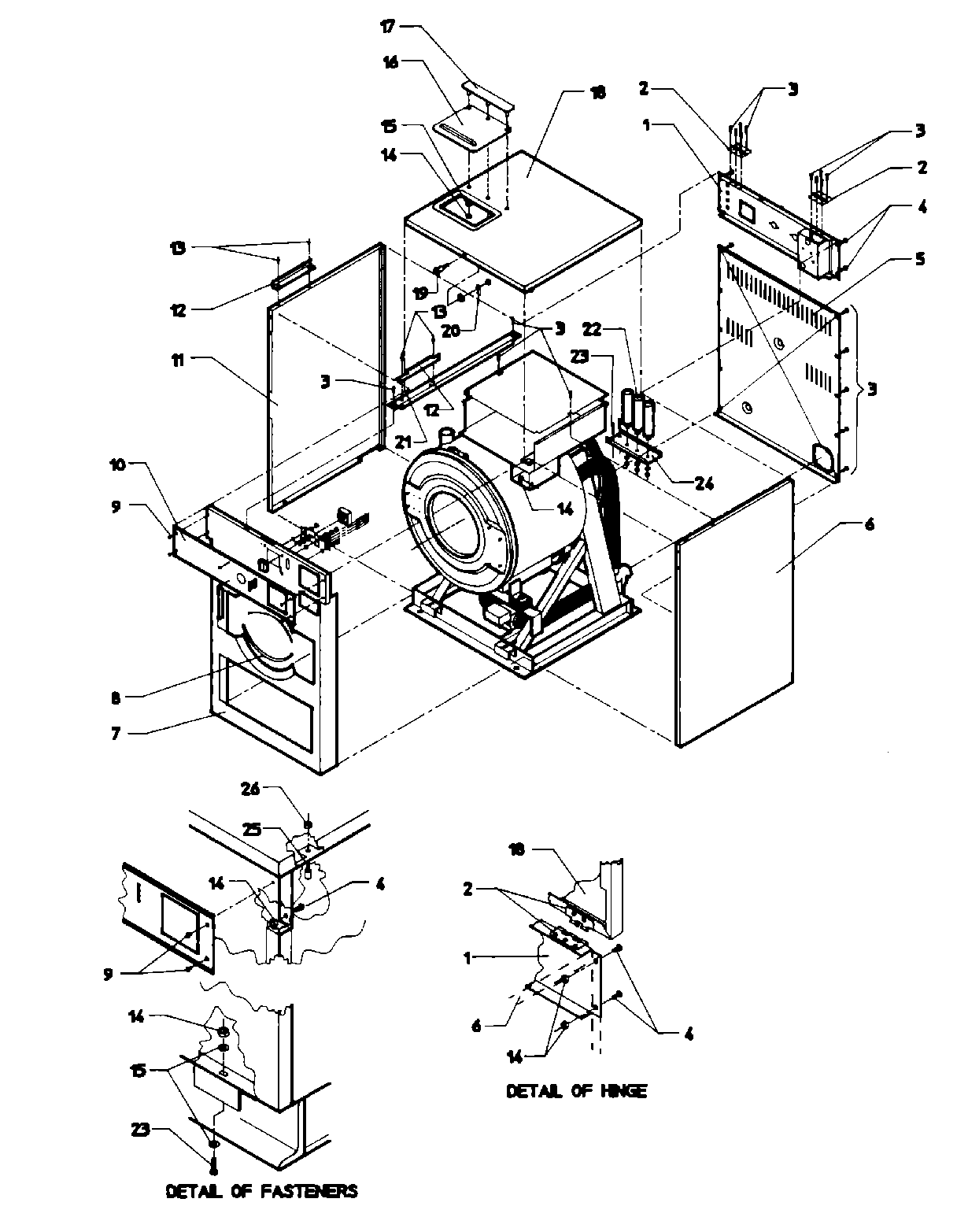

AT18MC2 01 – MAIN EXPLODED VIEW (FINAL ASSEMBLY)

AT18MC2 01 – MAIN EXPLODED VIEW (FINAL ASSEMBLY)

Written by

in

AT18MC2 01 – MAIN EXPLODED VIEW (FINAL ASSEMBLY)

Products

PositionProduct
001MAY 24001169
001MAY 24001170
002HINGE (TAKE APART)
003MAY 24001301
004MAY 24001323
005MAY 24001403
005MAY Y24001400
006MAY 24001159
006PANEL KIT, SIDE (RT.)18
007MAY 24001678
007PANEL ASSY. (INR. FRNT.)
008TRIM, PANEL (INR. FRNT.)
009MAY 24001212
011MAY 24001157
012MAY 24001539
013MAY 24001540
014MAY 24001510
015MAY 24001304
016COVER, SOAP DISPENSER
017MAY 24001542
018COVER ASSY KIT, TOP
018DOWEL PIN FOR HANDLE
019MAY 24001220
020MAY 24001221
021MAY 24001690
021MAY 24001695
022MAY 24001698
022MAY 24001675
022CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS)
022CAPACITOR W/RES. (130MF) (SINGLE PHASE)
022CAPACITOR (10MF) (W/CENTURY MOTORS)
022MAY 24001239
022MAY 24001238
022CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
022CAPACITOR (100MF) (SINGLE PHASE)
023MAY 24001303
024MAY 24001674
024MAY 24001692
025MAY 24001546
026MAY 24001425
