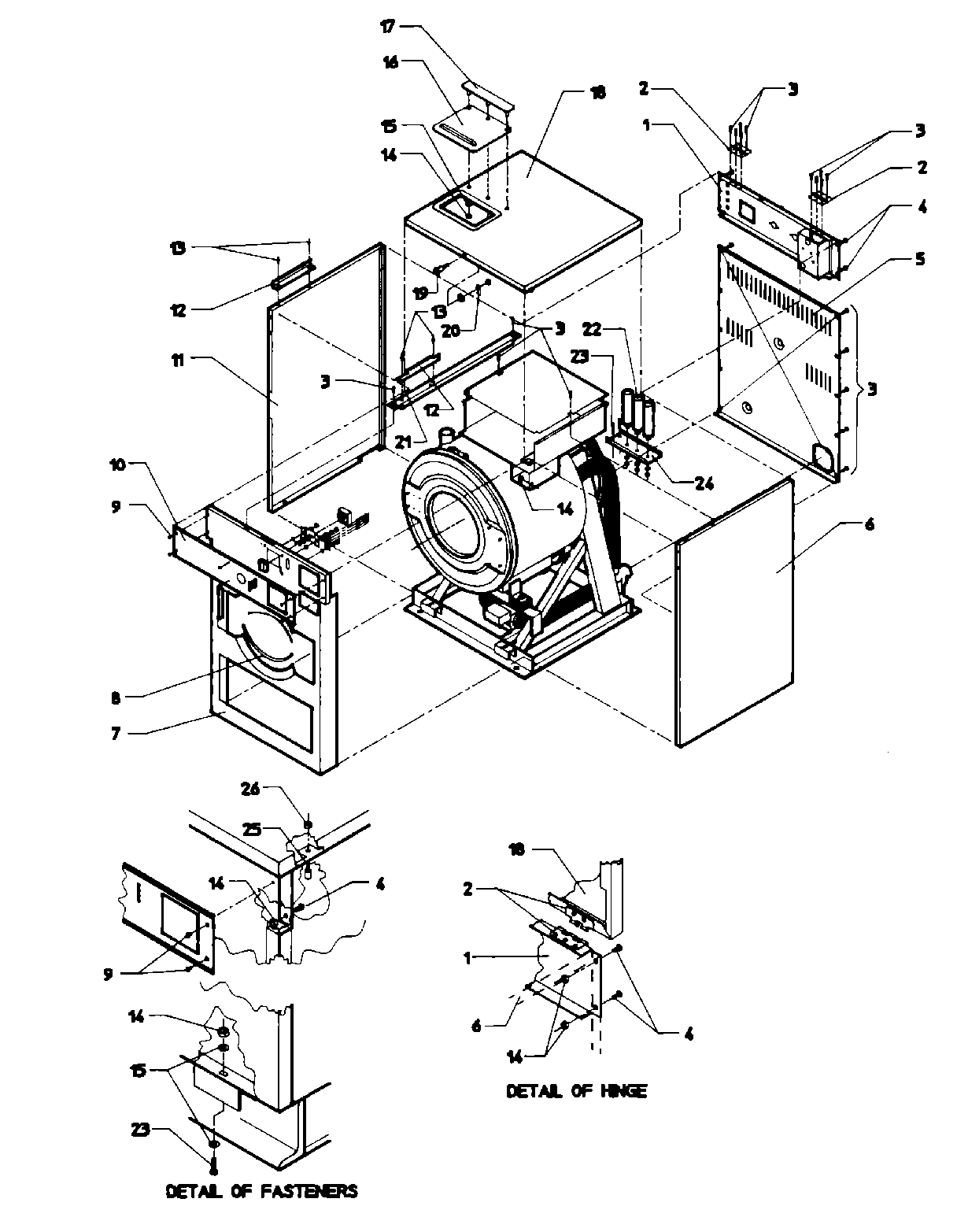

AT18MN2 01 – MAIN EXPLODED VIEW (FINAL ASSEMBLY)

Products

Position	Product
001	MAY 24001169
001	MAY 24001170
002	HINGE (TAKE APART)
003	MAY 24001301
004	MAY 24001323
005	MAY 24001403
005	MAY Y24001400
006	MAY 24001159
006	PANEL KIT, SIDE (RT.)18
007	MAY 24001678
007	PANEL ASSY. (INR. FRNT.)
008	TRIM, PANEL (INR. FRNT.)
009	MAY 24001212
011	MAY 24001157
012	MAY 24001539
013	MAY 24001540
014	MAY 24001510
015	MAY 24001304
016	COVER, SOAP DISPENSER
017	MAY 24001542
018	COVER ASSY KIT, TOP
018	DOWEL PIN FOR HANDLE
019	MAY 24001220
020	MAY 24001221
021	MAY 24001690
021	MAY 24001695
022	MAY 24001698
022	MAY 24001675
022	CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS)
022	CAPACITOR W/RES. (130MF) (SINGLE PHASE)
022	CAPACITOR (10MF) (W/CENTURY MOTORS)
022	MAY 24001239
022	MAY 24001238
022	CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
022	CAPACITOR (100MF) (SINGLE PHASE)
023	MAY 24001303
024	MAY 24001674
024	MAY 24001692
025	MAY 24001546
026	MAY 24001425
