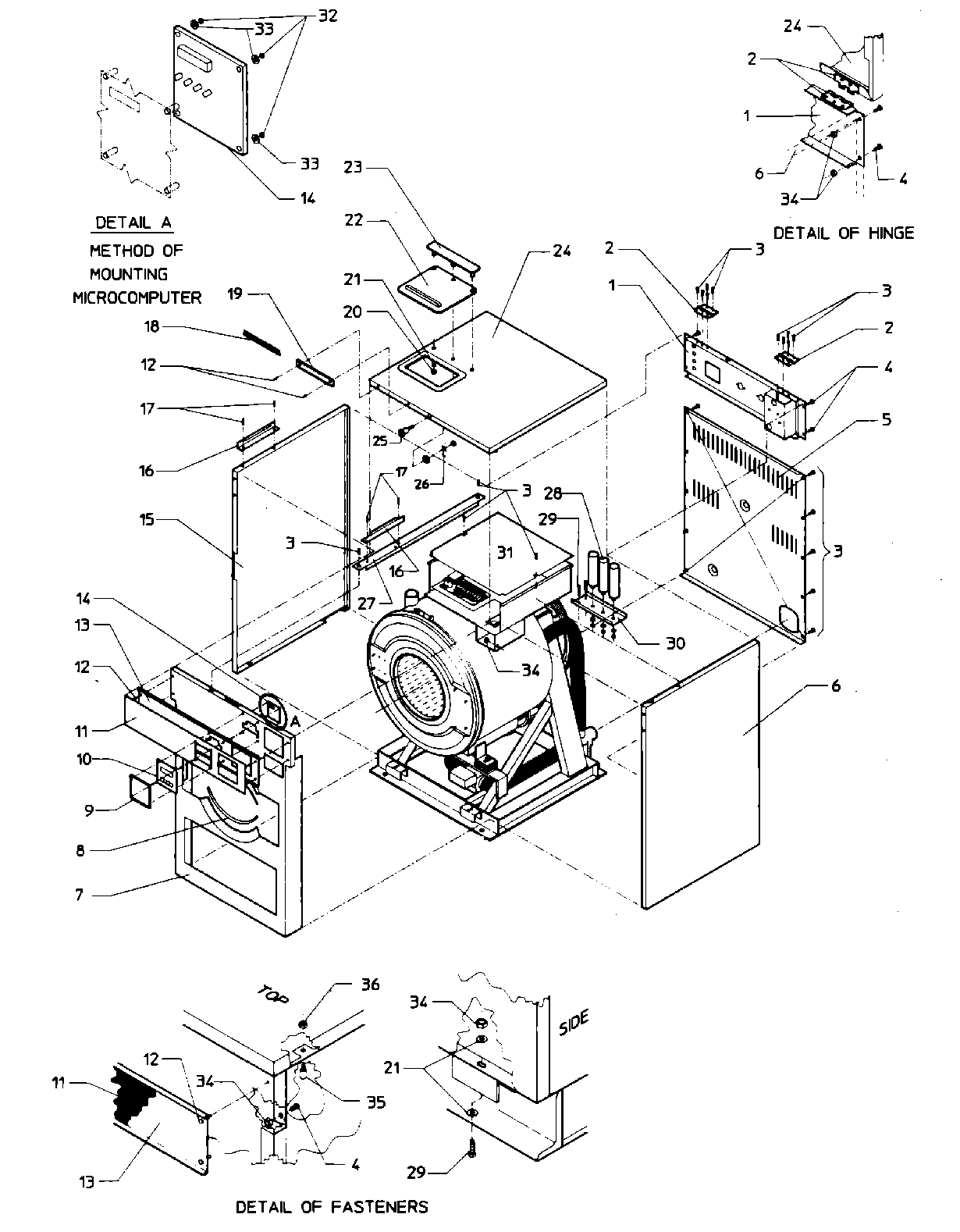

AT18PC2 01 – MAIN EXPLODED VIEW – COMPUTER MODELS

AT18PC2 01 – MAIN EXPLODED VIEW – COMPUTER MODELS

Written by

in

AT18PC2 01 – MAIN EXPLODED VIEW – COMPUTER MODELS

Products

PositionProduct
001MAY 24001169
002MAY 24001676
002HINGE (TAKE APART)
003MAY 24001301
004MAY 24001323
005MAY Y24001400
006PANEL KIT, SIDE (RT.)18
007MAY 24001701
008TRIM, PANEL (INR. FRNT.)
010MAY 24001112
012MAY 24001533
014MAY 24001709
014MAY 24001010
016MAY 24001539
017MAY 24001540
018DOWEL PIN FOR HANDLE
019MAY 24001671
020MAY 24001510
021MAY 24001295
022COVER, SOAP DISPENSER
023MAY 24001542
024COVER ASSY KIT, TOP
025MAY 24001220
026MAY 24001221
027MAY 24001695
028CAPACITOR (100MF) (SINGLE PHASE)
028MAY 24001698
029MAY 24001303
030MAY 24001692
031MAY 24001545
032MAY 24001417
033MAY 24001415
034MAY 24001305
035MAY 24001546
036MAY 24001425
036MAY 24001675
