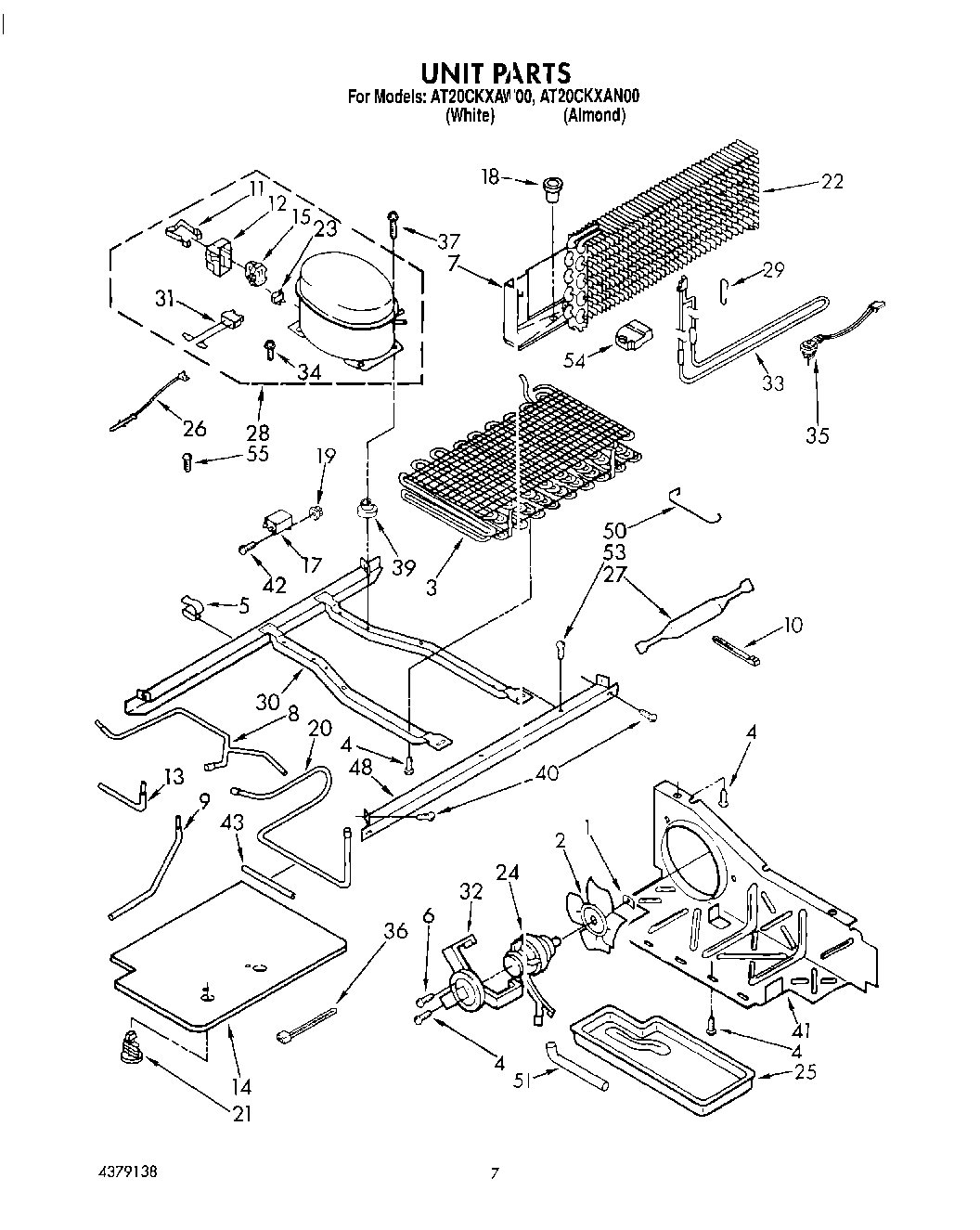

AT20CKXAN00 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Tube, Discharge
9	Tube, Condenser To Heat Loop
10	WPW10339879 Whirlpool Wire Tie
11	Strap
12	Cover
13	2154109 Whirlpool Refrigerator Tube
14	Cover-Unit Btm.
15	Relay (See Overload)
17	Running Capacitor (Service)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	Drain Fitting
19	Screw Grommet
20	Tube, Suction
21	489396 Whirlpool Refrigerator Clip
22	Evaporator
23	OVERLOAD
23	Overload
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Wire, Assembly Overload
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	Unit Mounting Frame
31	WP2172890 Whirlpool Refrigerator Wire
32	Fan, Motor Bracket
33	Heater, Defrost
34	W11693756 Whirlpool Screw Assembly
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
43	SLEEVE
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	Screw, 1/4-28 x 1/2 (2)
54	Support-Evaporator (L.S.)
54	Support (R.S.)
55	876764 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (1/2“)
55	978026 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (5/8“)
55	978030 Whirlpool Refrigerator Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	WP978025 Whirlpool Refrigerator Valve
