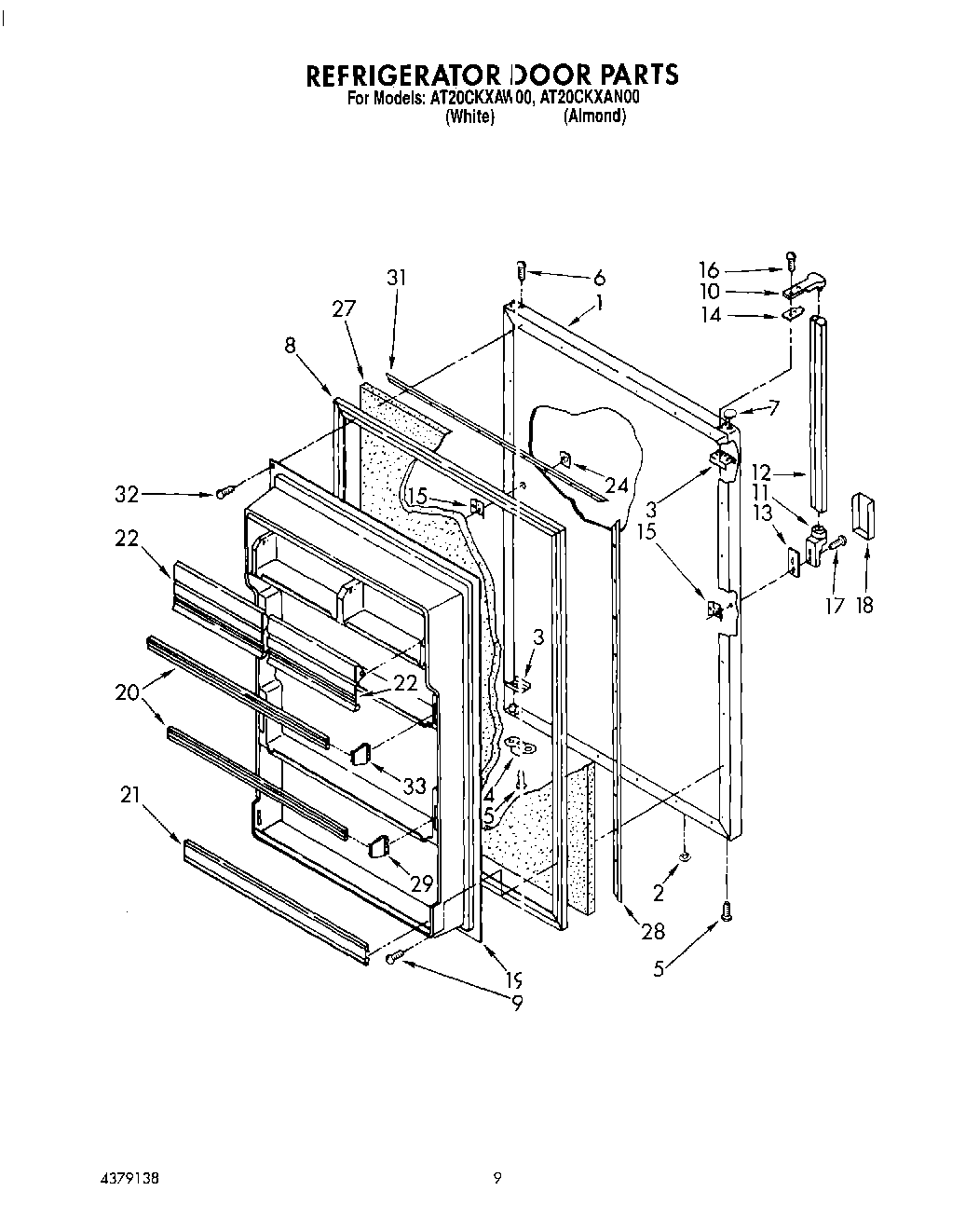

AT20CKXAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

AT20CKXAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

AT20CKXAW00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2166608
	WPL LIT2166601
	WPL LIT2154075
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188450A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End,
12	Handle, Center (Almond)
12	Handle, Center (White)
13	Shim, Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Cover, End Cap
19	Interior Door Panel
20	Trim, Door (2)
21	Trim, Door
22	Compartment Door (R.S.)
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
28	Gasket, Retainer
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
31	Gasket Retainer, Top & Bottom
33	212643 Whirlpool Refrigerator Permagum Sealer
33	Golden Harvest (Uncut)
33	350930 Whirlpool White Spray Paint
33	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
33	Almond (Uncut)
33	Leveler (Thinner)
33	WP72107 Whirlpool Touchup
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	350942 Whirlpool Spray Paint
33	511873 Whirlpool Refrigerator Paint
33	606755 Whirlpool Refrigerator Bag
33	WPL 876029
33	285006 Whirlpool Spray
33	72032 Whirlpool Touch Up Paint Black
33	WPL 799833
33	CEMENT, ALUMILASTIC (1 1/4 OZ.)
33	TAPE, VINYL (3/4 X 108“)
33	WP542638 Whirlpool Refrigerator Grease
33	WP505587 Whirlpool Refrigerator Sealer
33	4386917 Whirlpool Endcap Kit
33	WP503695 Whirlpool Refrigerator Sealer
33	876370 Whirlpool Refrigerator Insulation
33	833938 Whirlpool Refrigerator Terminal
33	350956 Whirlpool Spray Assembly
