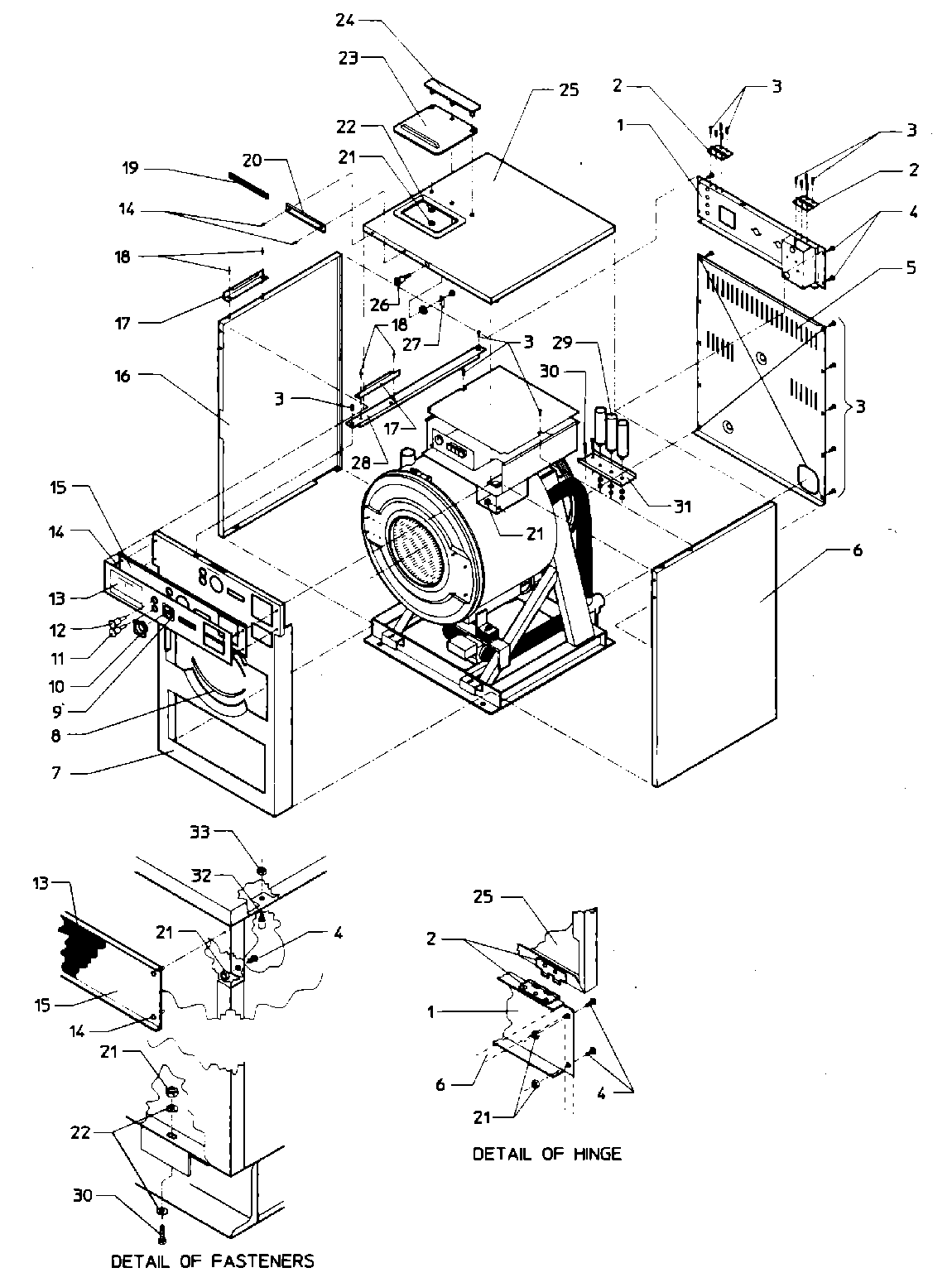

AT35MC1 01 – MAIN EXPLODED VIEW – FINAL ASSEMBLY

AT35MC1 01 – MAIN EXPLODED VIEW – FINAL ASSEMBLY

Written by

in

AT35MC1 01 – MAIN EXPLODED VIEW – FINAL ASSEMBLY

Products

PositionProduct
001MAY 24001170
001MAY 24001169
002HINGE (TAKE APART)
002MAY 24001676
003MAY 24001301
004MAY 24001323
005MAY 24001403
005MAY Y24001400
006MAY 24001159
006PANEL KIT, SIDE (RT.)18
007PANEL ASSY. (INR. FRNT.)
007MAY 24001678
008TRIM, PANEL (INR. FRNT.)
009MAY 24001679
010MAY 24001680
011MAY 24001681
012MAY 24001682
013MAY 24001683
013MAY 24001684
014MAY 24001533
015MAY 24001687
016MAY 24001155
016MAY 24001157
017MAY 24001539
018MAY 24001540
020MAY 24001671
021MAY 24001510
022MAY 24001295
023COVER, SOAP DISPENSER
024MAY 24001542
025DOWEL PIN FOR HANDLE
025COVER ASSY KIT, TOP
026MAY 24001220
027MAY 24001221
028MAY 24001695
028MAY 24001690
029CAPACITOR (100MF) (SINGLE PHASE)
029CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
029CAPACITOR (10MF) (W/CENTURY MOTORS)
029CAPACITOR W/RES. (130MF) (SINGLE PHASE)
029CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS)
030MAY 24001303
031MAY 24001692
031MAY 24001674
032MAY 24001305
033MAY 24001425
034NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
