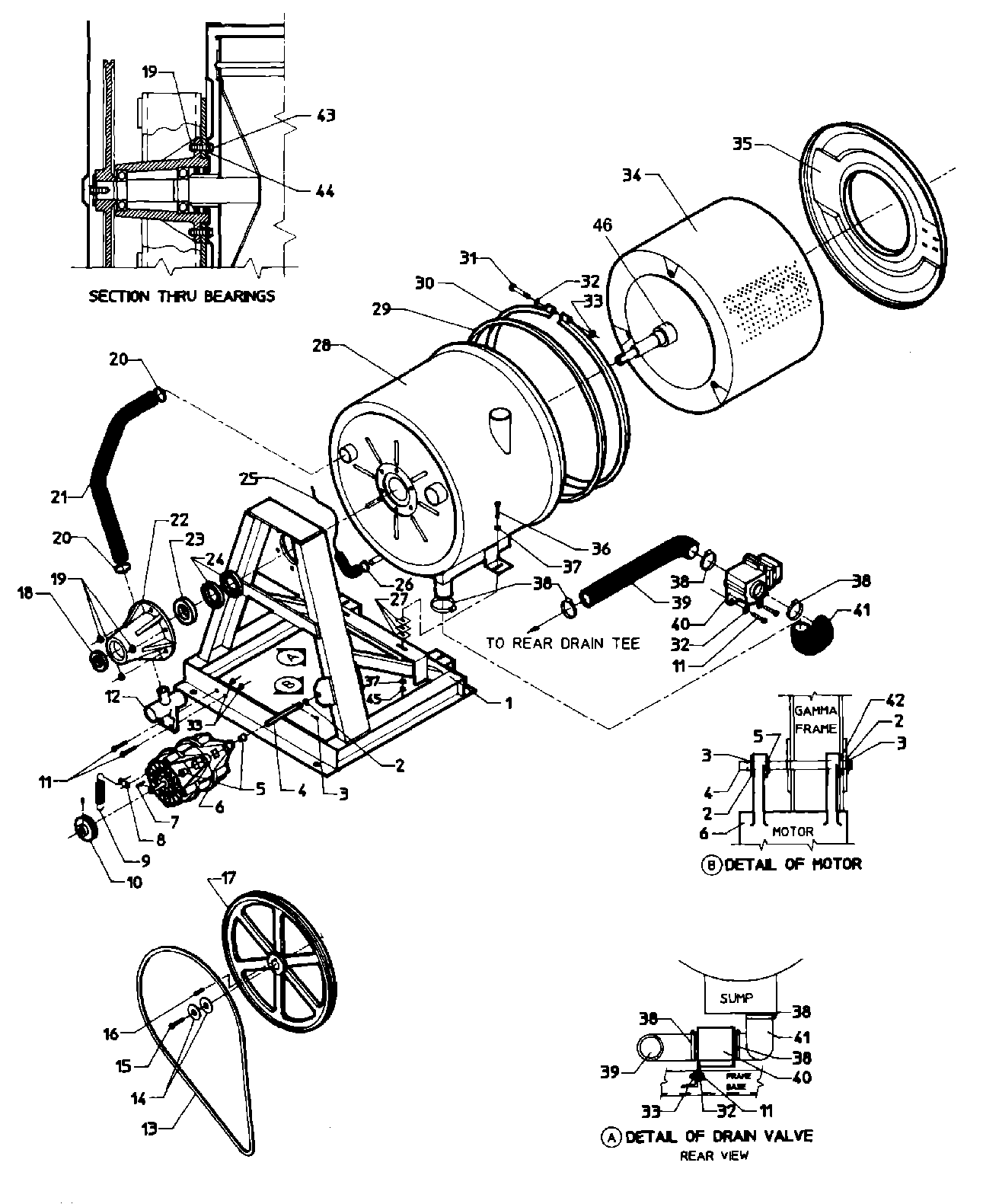

AT35MC1 08 – MAIN EXPLODED VIEW (SUB ASSEMBLY)

Products

Position	Product
001	MAY 24001369
001	MAY 24001371
002	MAY 24001511
003	MAY 24001512
004	MAY 24001802
004	MAY 24001647
005	MAY 24001021
006	MAY 24001078
006	MAY 24001083
006	MAY 24001082
006	MAY 24001079
007	MAY 24001648
008	MAY 24001651
009	MAY 24001650
010	MAY 24001086
011	MAY 24001502
012	MAY 24001826
013	MAY 24001093
013	MAY 24001095
014	MAY 24001501
015	MAY Y24001500
016	MAY 24001499
017	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
017	PULLEY, BASKET
018	MAY 24002048
018	MAY 24001015
019	MAY 24001495
019	MAY 24001563
020	MAY 24001283
021	MAY 24001506
021	MAY 24001662
023	MAY 24001016
023	MAY 24001014
024	MAY 24001019
024	MAY 24001020
025	AIR TRAP
026	MAY 24001438
027	MAY 24001803
028	MAY 24001836
028	MAY 24001375
028	MAY 24001377
029	MAY 24001184
030	MAY 24001389
030	MAY 24001388
033	MAY 24001215
034	MAY 24001804
034	MAY 24001266
035	MAY 24001384
035	MAY 24001385
036	MAY 24001657
037	MAY 24001516
038	MAY 24001353
039	MAY 24001564
039	MAY 24001660
040	MAY 24001116
041	MAY 24001565
042	MAY 24001805
043	MAY 24001807
043	MAY 24001659
043	MAY 24001497
044	MAY 24001810
044	MAY 24001809
044	MAY 24001808
045	MAY 24001260
045	MAY 24001258
045	MAY 24001515
046	MAY 24001130
046	MAY 24001271
