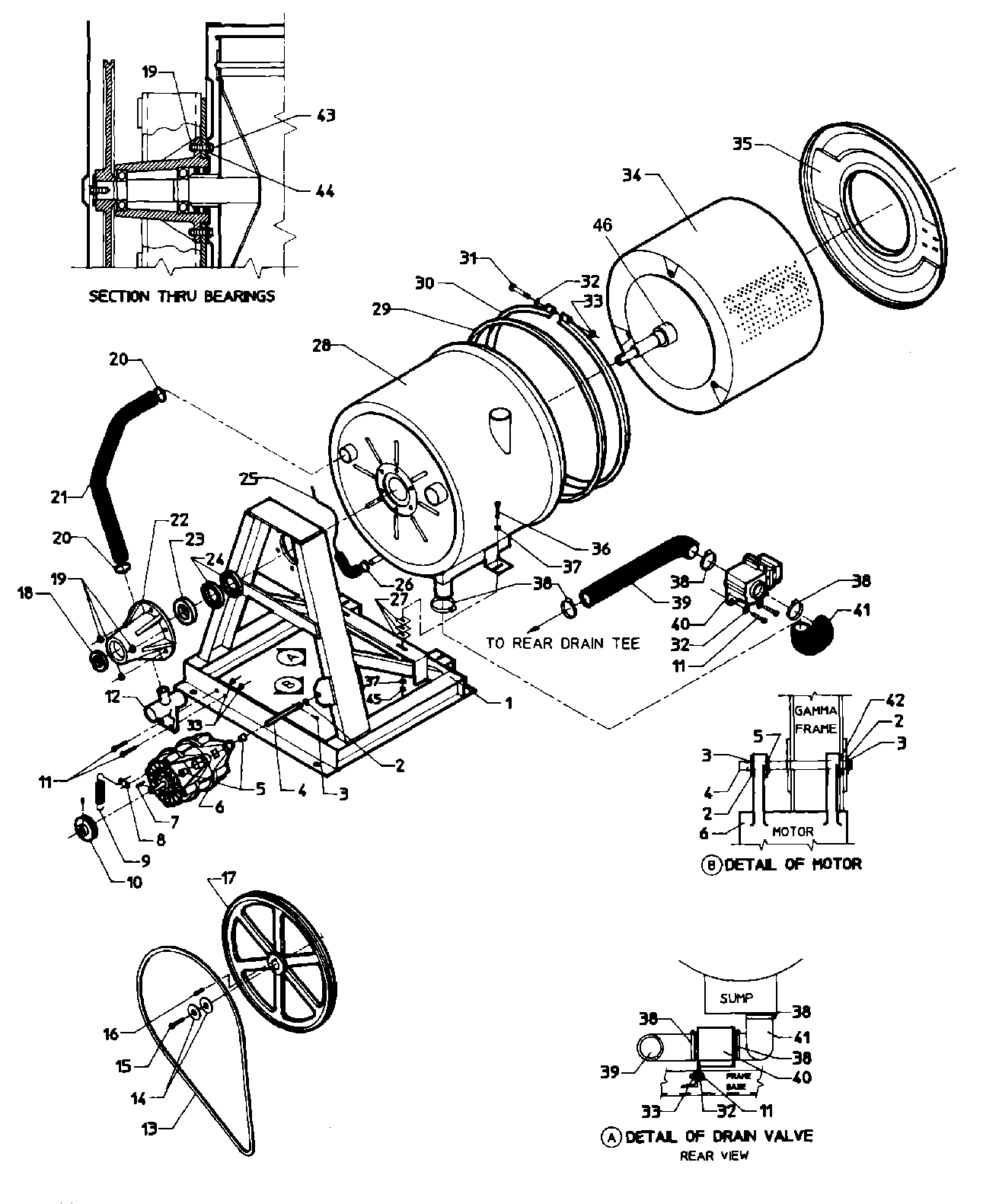

AT35MN1 12 – MAIN EXPLODED VIEW – SUB ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY 24001371 |
| 002 | MAY 24001511 |
| 003 | MAY 24001512 |
| 004 | MAY 24001802 |
| 005 | MAY 24001021 |
| 006 | MAY 24001079 |
| 006 | MAY 24001083 |
| 007 | MAY 24001648 |
| 008 | MAY 24001651 |
| 009 | MAY 24001650 |
| 010 | MAY 24001090 |
| 011 | MAY 24001502 |
| 012 | MAY 24001826 |
| 013 | MAY 24001095 |
| 014 | MAY 24001501 |
| 015 | MAY Y24001500 |
| 016 | MAY 24001499 |
| 018 | MAY 24001014 |
| 019 | MAY 24001563 |
| 019 | MAY 24001495 |
| 020 | MAY 24001283 |
| 021 | MAY 24001506 |
| 023 | MAY 24001016 |
| 024 | MAY 24001020 |
| 025 | AIR TRAP |
| 026 | MAY 24001438 |
| 027 | MAY 24001803 |
| 028 | MAY 24001836 |
| 028 | MAY 24001377 |
| 029 | MAY 24001184 |
| 030 | MAY 24001389 |
| 031 | MAY 24001215 |
| 034 | MAY 24001804 |
| 035 | MAY 24001385 |
| 036 | MAY 24001657 |
| 037 | MAY 24001516 |
| 038 | MAY 24001353 |
| 039 | MAY 24001564 |
| 040 | MAY 24001116 |
| 041 | MAY 24001565 |
| 043 | MAY 24001497 |
| 043 | MAY 24001807 |
| 044 | MAY 24001810 |
| 044 | MAY 24001809 |
| 045 | MAY 24001260 |
| 045 | MAY 24001515 |
| 046 | MAY 24001271 |
