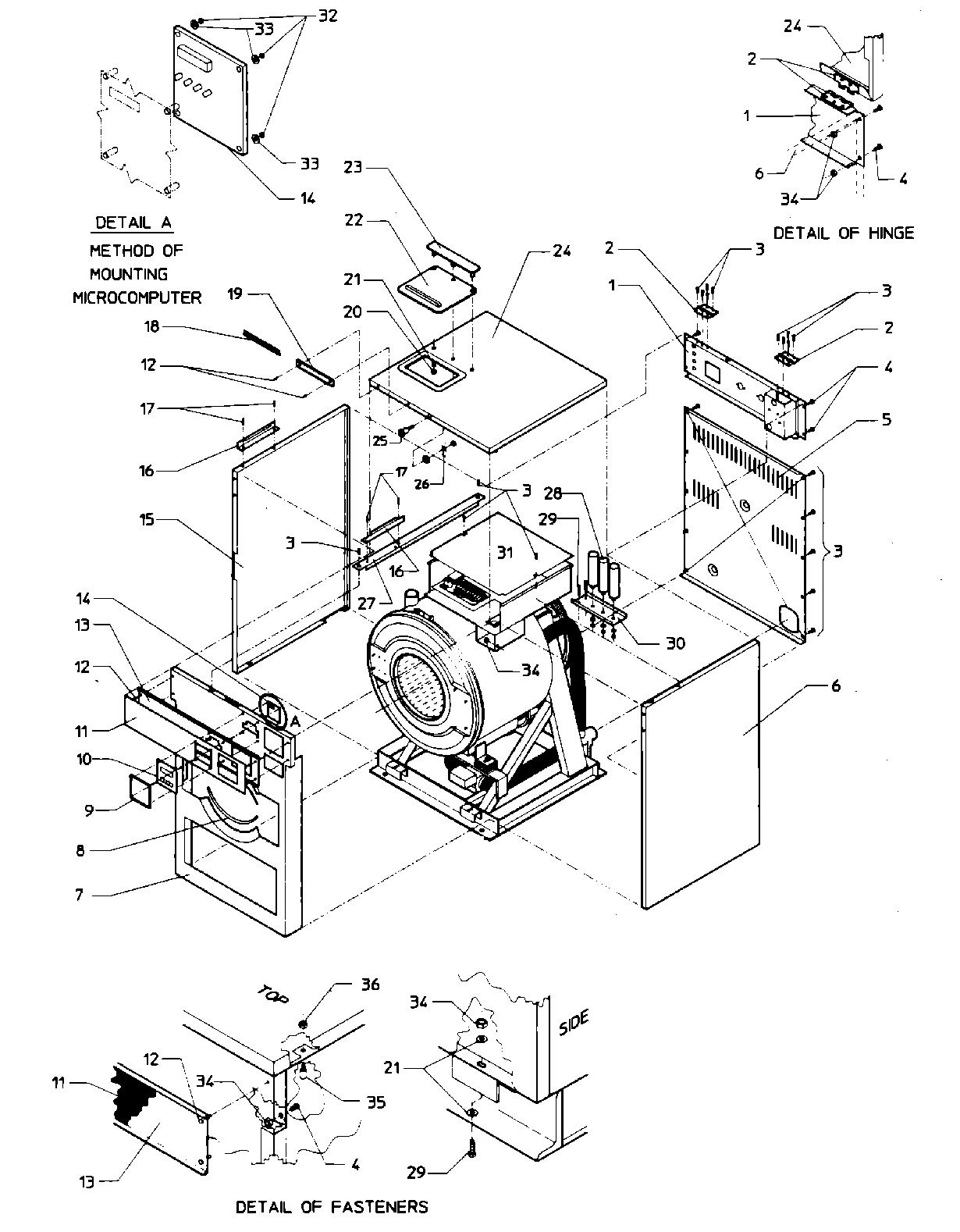

AT35PC2 01 – MAIN EXPLODED VIEW – COMPUTER MODELS

AT35PC2 01 – MAIN EXPLODED VIEW – COMPUTER MODELS

Written by

in

AT35PC2 01 – MAIN EXPLODED VIEW – COMPUTER MODELS

Products

PositionProduct
001MAY 24001170
002HINGE (TAKE APART)
002MAY 24001676
003MAY 24001301
004MAY 24001323
005MAY 24001403
006MAY 24001159
007MAY 24001702
008TRIM, PANEL (INR. FRNT.)
010MAY 24001114
010MAY 24001112
012MAY 24001533
013MAY 24001687
014MAY 24001010
014MAY 24001709
015MAY 24001157
016MAY 24001539
017MAY 24001540
019MAY 24001671
020MAY 24001510
021MAY 24001295
022COVER, SOAP DISPENSER
023MAY 24001542
024DOWEL PIN FOR HANDLE
025MAY 24001220
026MAY 24001221
027MAY 24001690
028CAPACITOR W/RES. (130MF) (SINGLE PHASE)
028CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
028MAY 24001238
028MAY 24001239
028CAPACITOR (10MF) (W/CENTURY MOTORS)
028CAPACITOR (160MF) (W/CENTURY OR ELMO MOTORS)
029MAY 24001303
030MAY 24001674
031MAY 24001545
032MAY 24001417
033MAY 24001415
034MAY 24001305
035MAY 24001546
036MAY 24001675
036MAY 24001425
