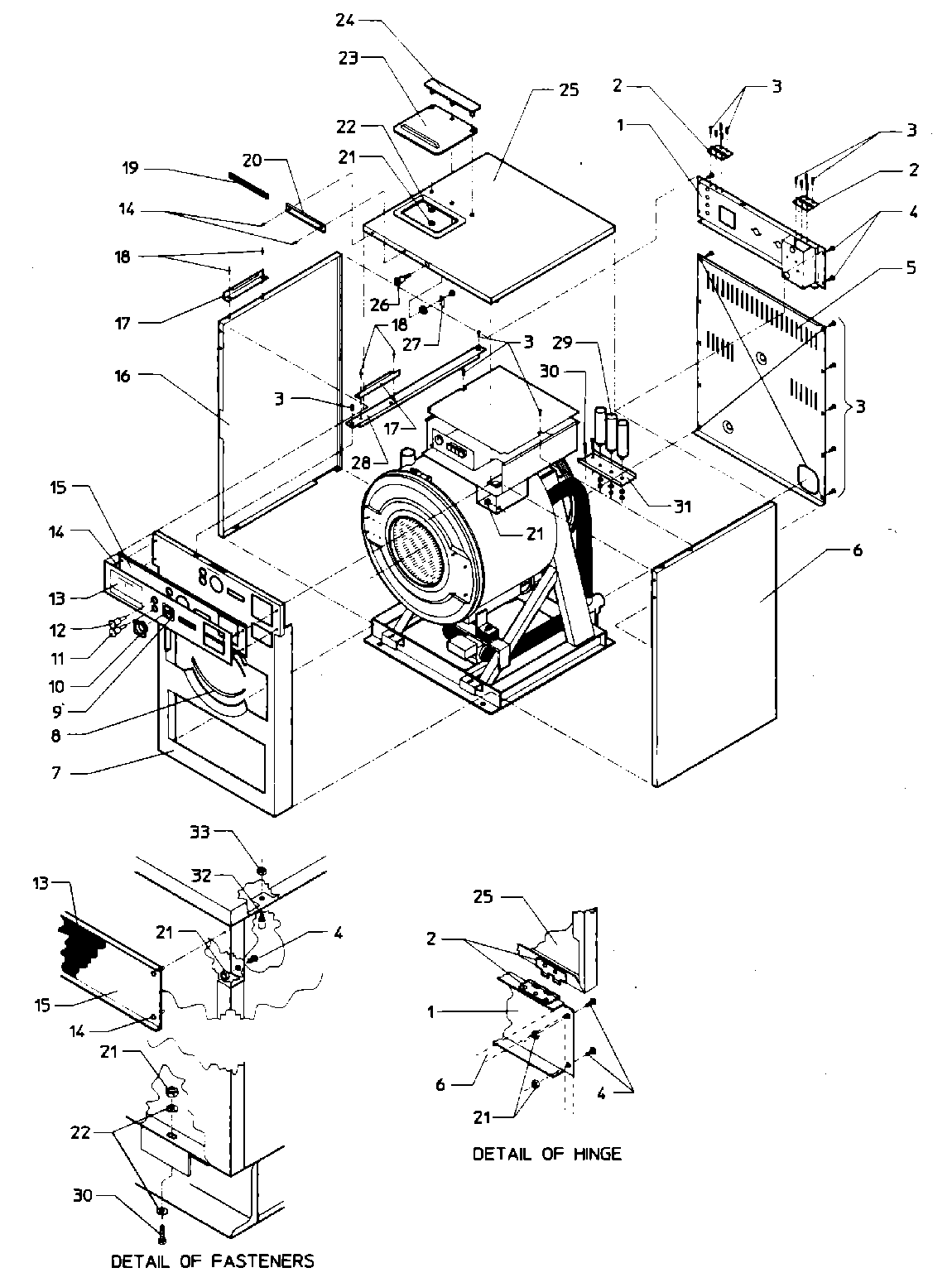

AT50MN1 02 – MAIN EXPLODED VIEW – FINAL ASSY. (AT50)

AT50MN1 02 – MAIN EXPLODED VIEW – FINAL ASSY. (AT50)

Written by

in

AT50MN1 02 – MAIN EXPLODED VIEW – FINAL ASSY. (AT50)

Products

PositionProduct
NINOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
001MAY 24001171
002MAY 24001676
002HINGE (TAKE APART)
003MAY 24001301
004MAY 24001323
005MAY 24001402
008TRIM, PANEL (INR. FRNT.)
009MAY 24001679
010MAY 24001680
011MAY 24001681
012MAY 24001682
013MAY 24001685
014MAY 24001540
015MAY 24001688
017MAY 24001539
018MAY 24001533
020MAY 24001671
021MAY 24001510
022MAY 24001295
023COVER, SOAP DISPENSER
024MAY 24001542
025DOWEL PIN FOR HANDLE
026MAY 24001220
027MAY 24001221
028MAY 24001691
029CAPACITOR W/RES. (130MF) (SINGLE PHASE)
029CAPACITOR (50MF) (W/CENTURY OR ELMO MOTORS)
029MAY 24001239
030MAY 24001303
031MAY 24001674
032MAY 24001305
033MAY 24001425
