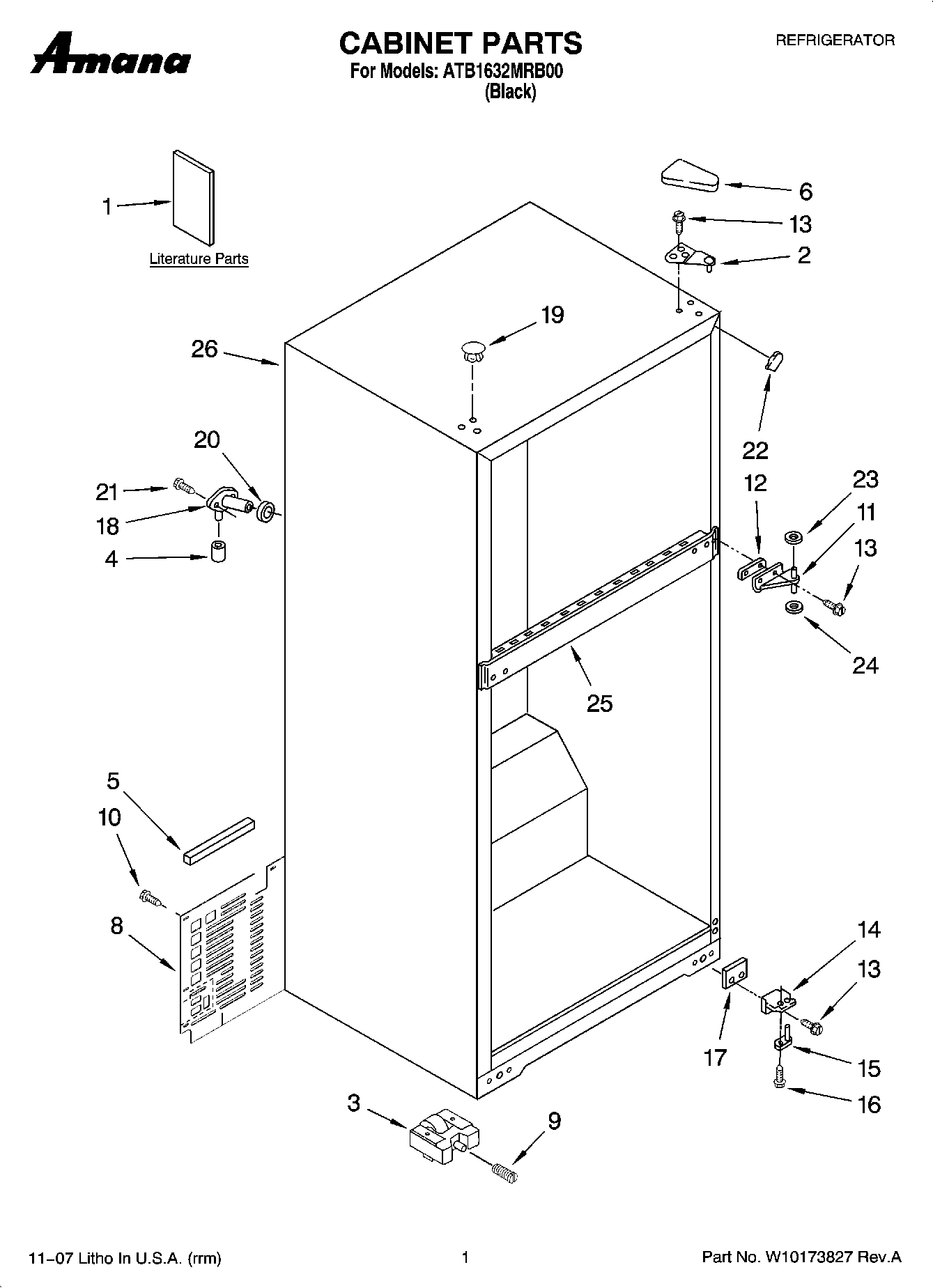

ATB1632MRB00 01 – CABINET PARTS

ATB1632MRB00 01 – CABINET PARTS

Written by

in

ATB1632MRB00 01 – CABINET PARTS

Products

PositionProduct
1MAY W10167273
1MAY W10145175
1SUPPORT
1MAY W10154917
1DO-IT-YOURSELF MANUAL REF./ FRZ.
2MAY 2261963
3Roller-Front
4CAP BUSHING
5SPACER, BACK CB
6MAY 2213363
8MAY 2264132
9SCREW
10MAY 489442
11MAY 2166086
12SHIM, CENTER HINGE (BLACK)
13MAY 489497
14MAY 2221926
15Hinge-Pin, Bottom
16MAY 3428970
17MAY 2201567
18MAY 2174760
19MAY 2183998
20Seal
21MAY 2262176
22Corner Filler (Black)
23Washer (7/64)
24Washer (1/16)
