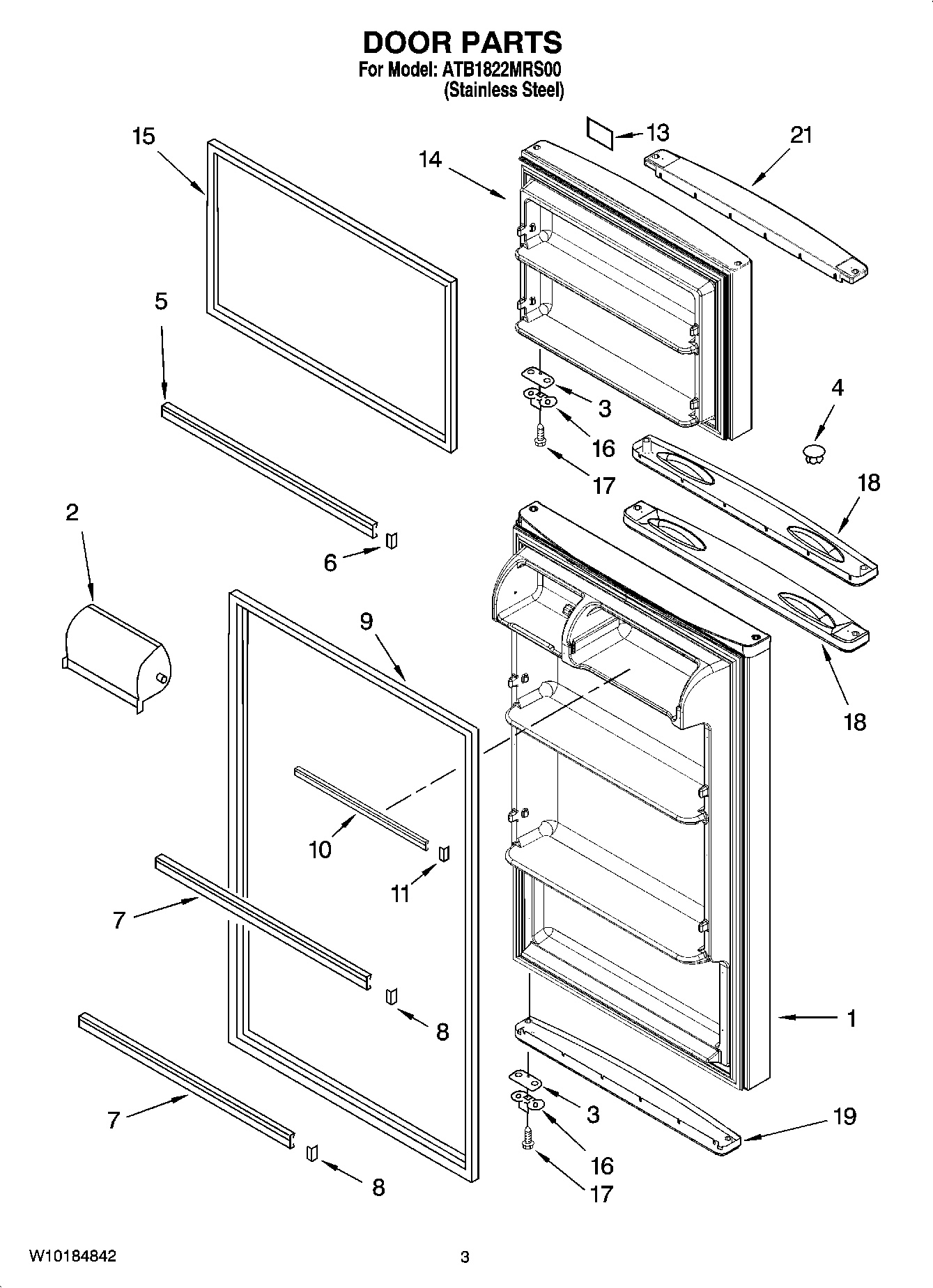

ATB1822MRS00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 9) (Stainless Steel)
2MAY 2207942
3Shim, Door Stop (Black)
4Hole Plug (Black)
5MAY 2266727
6END CAP, TRIM
7MAY 2266738
8PLUG-TRIM
9GASKET, RC (BLACK)
10Trim, Door
11Plug-Trim
13NAMEPLATE (SILVER)
14Freezer Door (Includes Illus. 15) (Stainless Steel)
15GASKET, FC (BLACK)
16MAY 2189202
17MAY 8533904
18Endcap, Handle (Black)
19Endcap, Bottom (Black)
21Endcap, Top (Black)
