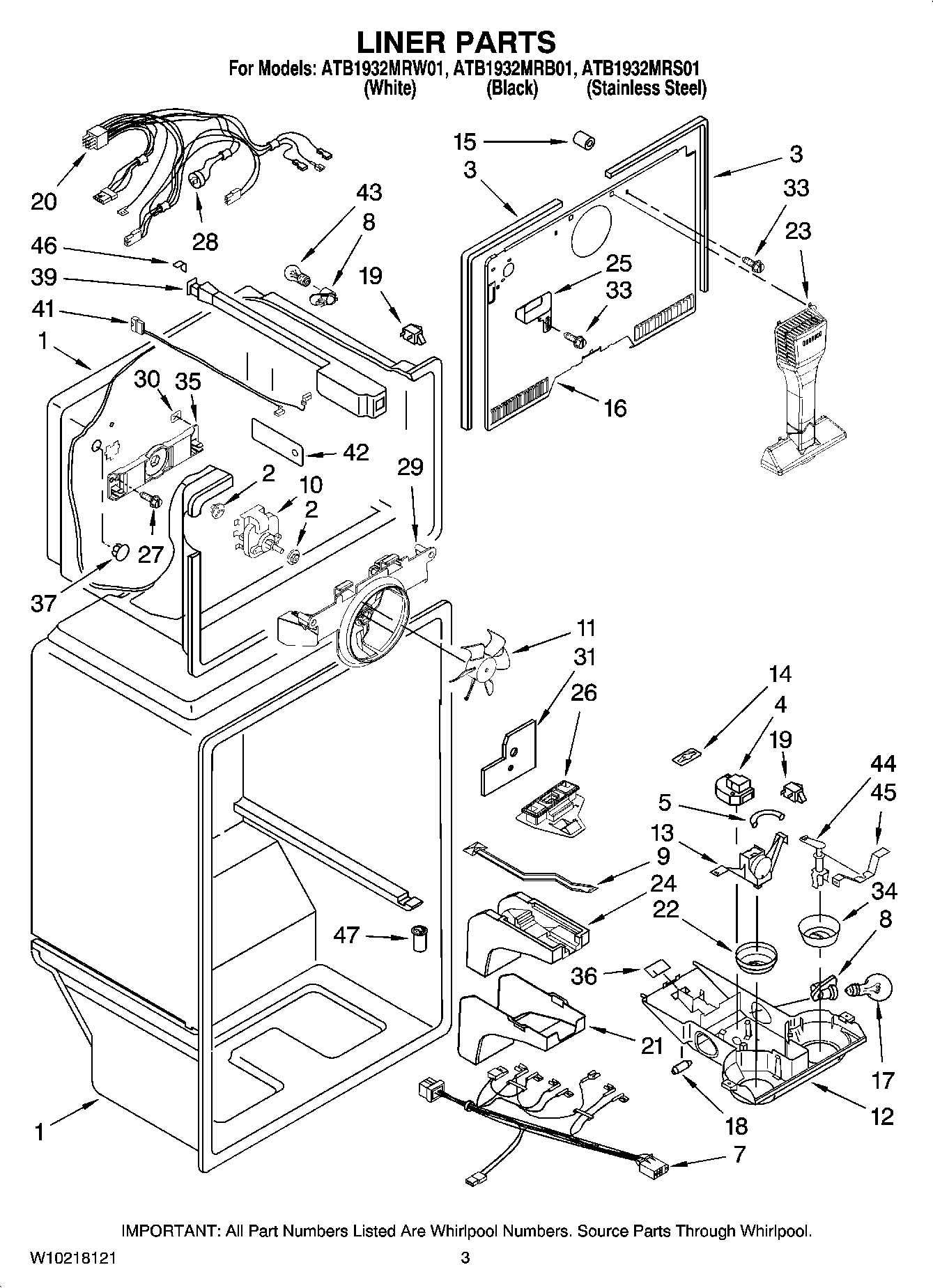

ATB1932MRS01 02 – LINER PARTS
Written by
in
ATB1932MRS01 02 – LINER PARTS
Products
Position
Product
2
MAY 2197380
3
MAY 2254359
4
MAY 2314156
5
MAY 2212485
7
Wire Assembly, Control Box
8
Socket, Light
9
MAY 2179858
10
MAY 2214986
11
Fan Blade
12
MAY 2200820
13
Thermostat Assembly (Includes Illus. 5 & 18)
14
Clip-Defrost Timer
15
CAP BUSHING
16
MAY 2320191
17
MAY 527949
18
MAY 2200831
19
MAY 1118894
20
Wire Assembly, Frzr. Compartment (Includes Illus. 28)
21
MAY 2176281
22
MAY 2200863
23
MAY 2254354
24
MAY 2189452
25
MAY 2205003
26
MAY 2210390
27
Screw
28
MAY 2321800
29
Bracket,
30
Retainer-Screw Fan Motor
31
MAY 2204639
33
MAY 489478
34
MAY 2302536
35
Bracket, Fan Back
36
MAY 2205079
37
MAY 941839
39
MAY 2300417
41
MAY 2187601
42
Electrical Shield, Freezer Light
43
Light Bulb
44
MAY 2179859
45
MAY 2163810
46
MAY 2166284
47
MAY 2210509
←
