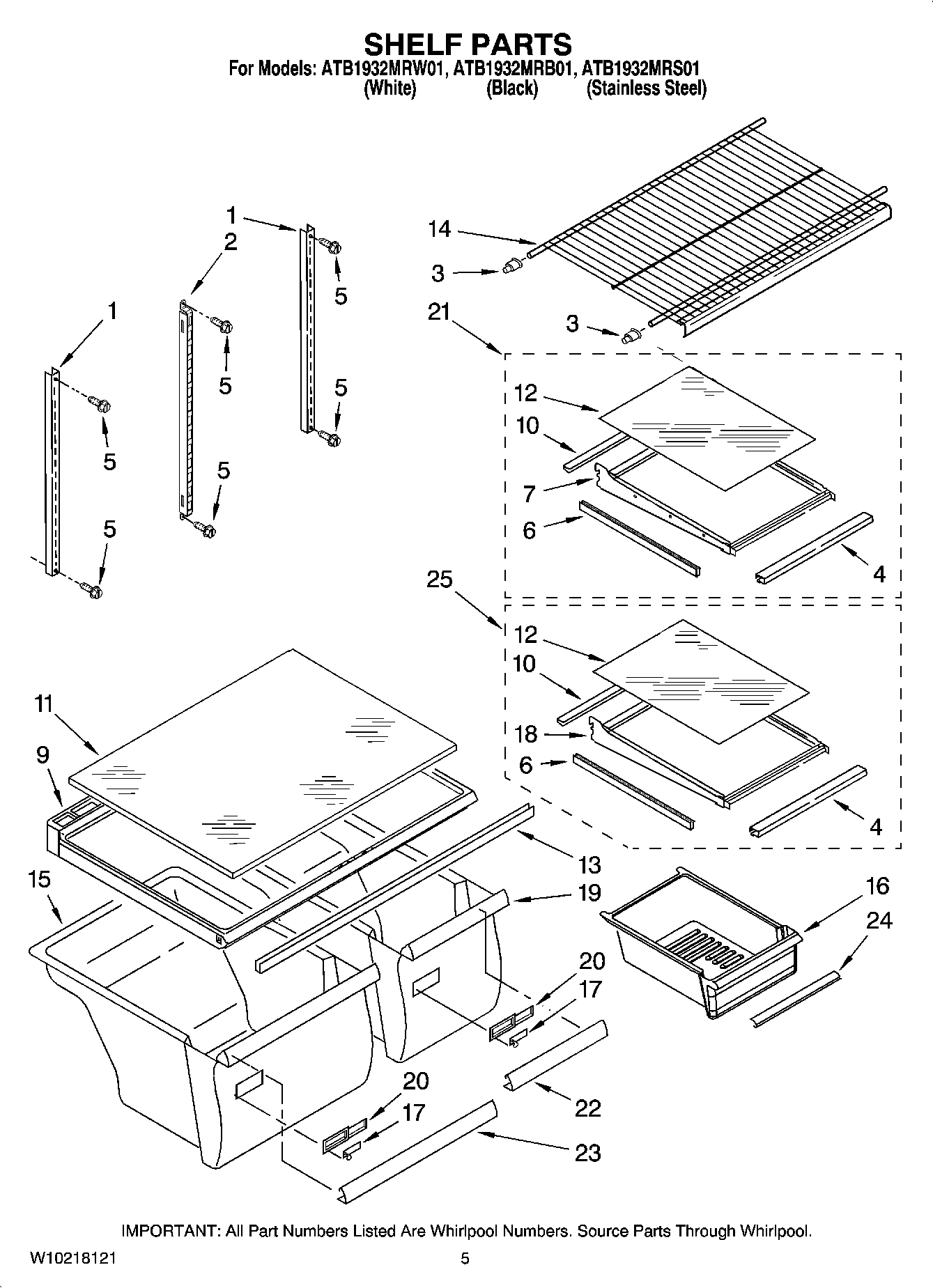

ATB1932MRW01 03 – SHELF PARTS

ATB1932MRW01 03 – SHELF PARTS

Written by

in

ATB1932MRW01 03 – SHELF PARTS

Products

Position	Product
1	MAY 2210522
2	MAY 2300520
3	MAY 2163762
4	Trim-Shelf, Front
5	MAY 489478
6	Trim Shelf, Side
7	Shelf Assy
9	MAY 2314548
10	Trim-Shelf, Rear
11	MAY 2221693
12	Glass, Half Shelf
13	Support, Crisper
14	MAY 2189453
15	Pan, Crisper (13-Inch) (Includes 17,20)
16	MAY 2218127
17	Slide, Humidity Control
18	Shelf-Cantilever
19	Pan, Crisper (10-Inch) (Includes 17, 20)
20	MAY 2212446
21	Shelf Assembly (W/Pan Slide)
22	MAY 2320384
23	MAY 2320386
24	MAY 2176356
25	Shelf Assembly
