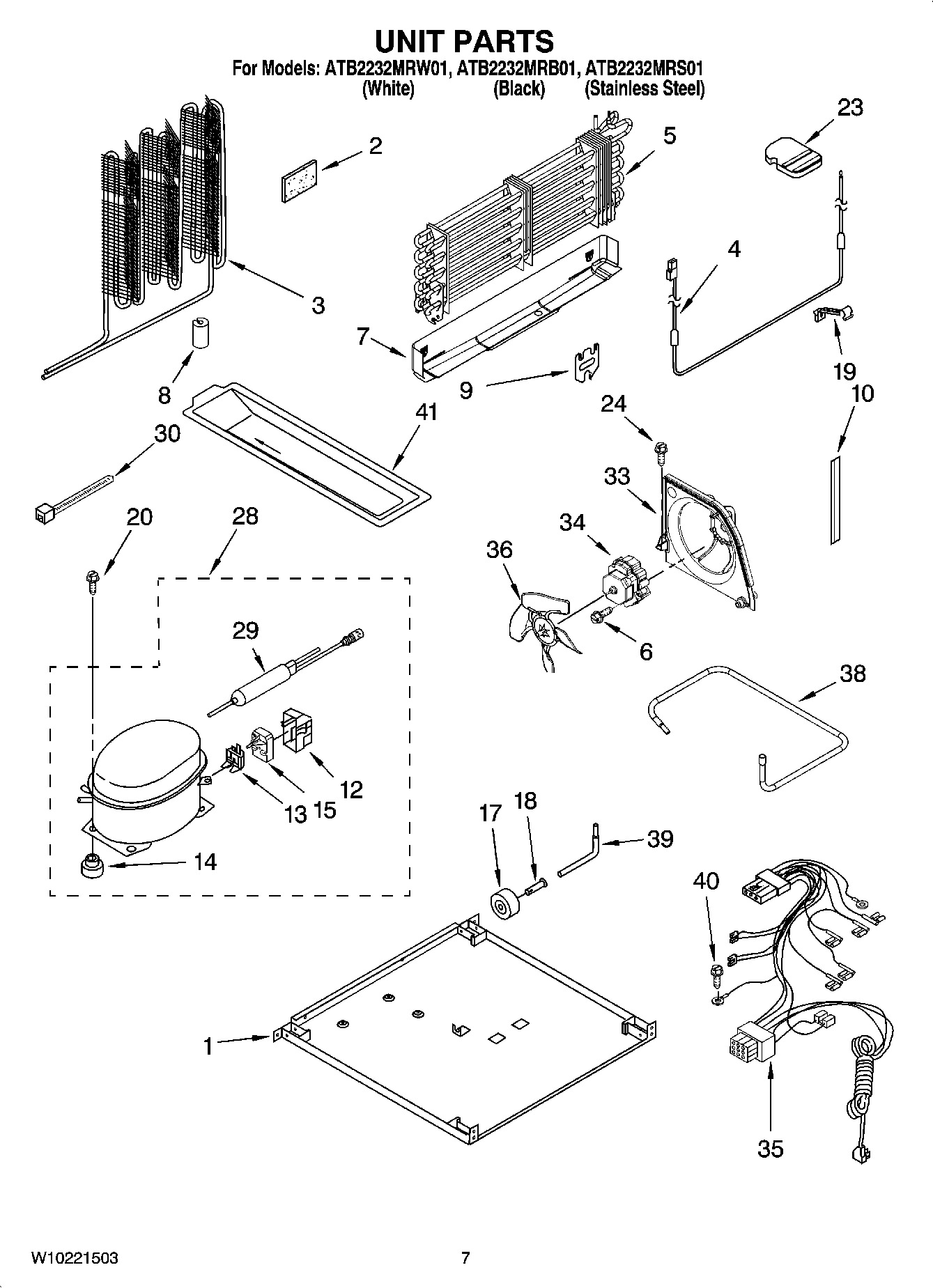

ATB2232MRS01 04 – UNIT PARTS

ATB2232MRS01 04 – UNIT PARTS

Written by

in

ATB2232MRS01 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
1	MAY 2320187
2	SEALER, INSULATION
3	MAY W10159808
4	MAY 2314157
5	MAY 2254249
6	MAY 8533961
7	MAY 2254295
8	GROMMET, CONDENSER
9	MAY 2176301
10	MAY 2300638
12	COVER ((SERVICE ONLY))
12	Cover (Production)
13	MAY 2302290
13	Overload (Service Only)
14	MAY 4387558
14	Grommet (Production)
15	MAY 2258450
17	Roller
18	MAY 2221797
19	MAY 2182338
20	MAY 489373
23	MAY 2201185
24	MAY 3400518
28	Compressor (Includes Items 12,13,14,29)
30	MAY 2155774
33	MAY 2315541
34	MOTOR, CONDENSOR
35	MAY 2187764
36	MAY 2225834
38	MAY 2205293
39	MAY 2212848
40	MAY 488500
41	Evaporator Tray
