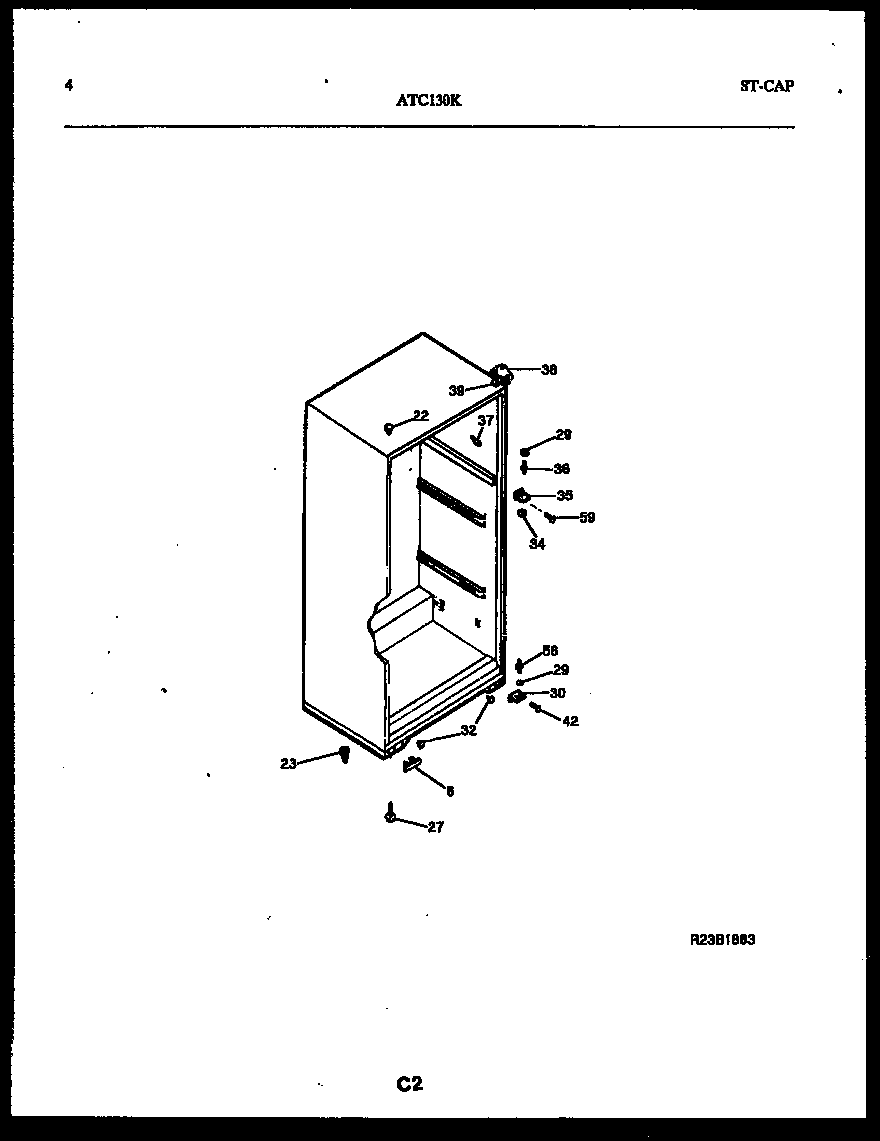

ATC130BK2 03 – CABINET PARTS

Products

Position	Product
*58824	SKID PAD, REAR CAB BASE (NI)
6	WCI 3206135
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303211514
27	SCREW-LEVELING, (2)
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 3206136
32	PLUG-BUTTON
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38	WCI 3206100
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM - UPPER HINGE
42	241710601 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	SCREW - MULLION (2)
