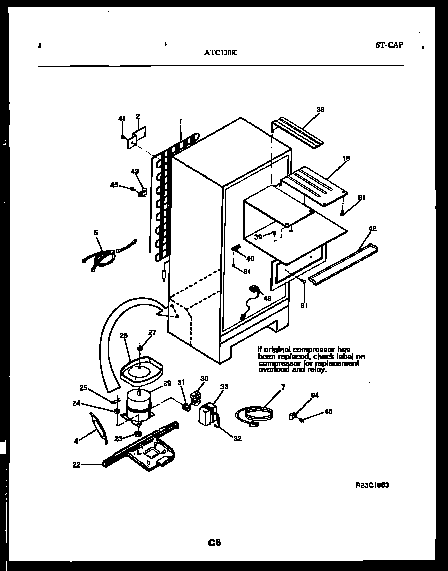

ATC130BK2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

ATC130BK2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

ATC130BK2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*58829WCI 3916557
*588295304455852 Frigidaire Refrigerator Screw
1WCI 215066900
1ASPACER-COND TUBE,BLACK
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET-MTG (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 5303276597
7CORD-ELECTRIC POWER
15WCI 5303271496
22A5304500008 Frigidaire Oven Screw
22WCI 3206126
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
29COMPRESSOR WITH ELECTRICALS
30216594300 Frigidaire Refrigerator Starter
31WCI 5303270406
325303006412 Frigidaire Refrigerator Cover Mounting Strap
38WCI 3200734
39WCI 08006983
40CLAMP-CONTROL BULB (NON-ILLUSTRATED)
415308000039 Frigidaire Refrigerator Screw
42WCI 5303211504
42AWCI 5303001380
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
46WCI 5303211511
815304455650 Frigidaire Refrigerator Screw
94CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
