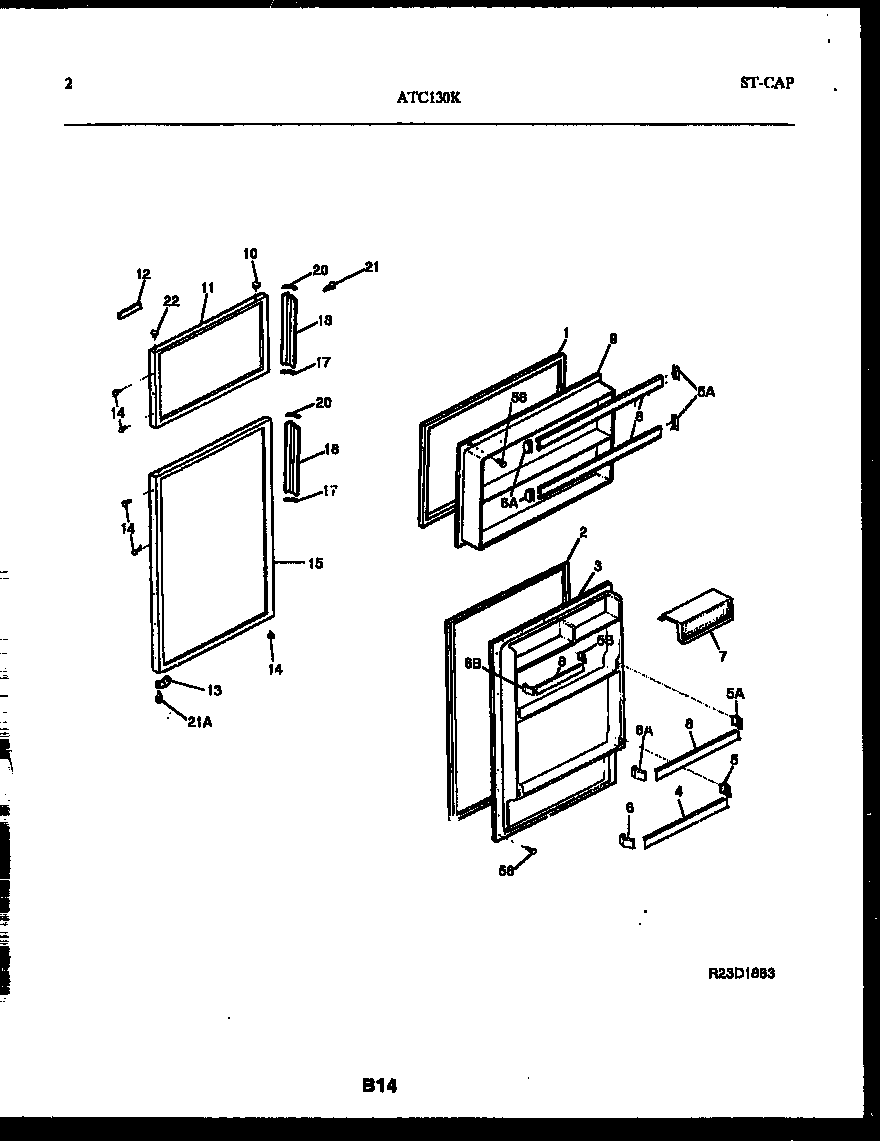

ATC130WK2 02 – DOOR PARTSadmin2025-04-26T08:47:05+00:00ATC130WK2 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *58822 | INSULATION-BULK (NON-ILLUSTRATED) |
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | GASKET-REFR DOOR, MAGNETIC |
| 3 | WCI 5303276182 |
| 4 | DOOR RACK - REFR |
| 5B | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 5 | WCI 3206150 |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 6A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 6 | WCI 3206151 |
| 6B | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 7 | WCI 5303276149 |
| 8 | DOOR RACK - REFR |
| 9 | PANEL-INNER DOOR, FRZR |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | WCI 5303916963 |
| 12 | WCI 5303276130 |
| 13 | WCI 5308000255 |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | WCI 5303916960 |
| 17 | END CAP-BOTTOM (2) |
| 18 | HANDLE |
| 20 | WCI 5308010239 |
| 21 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
