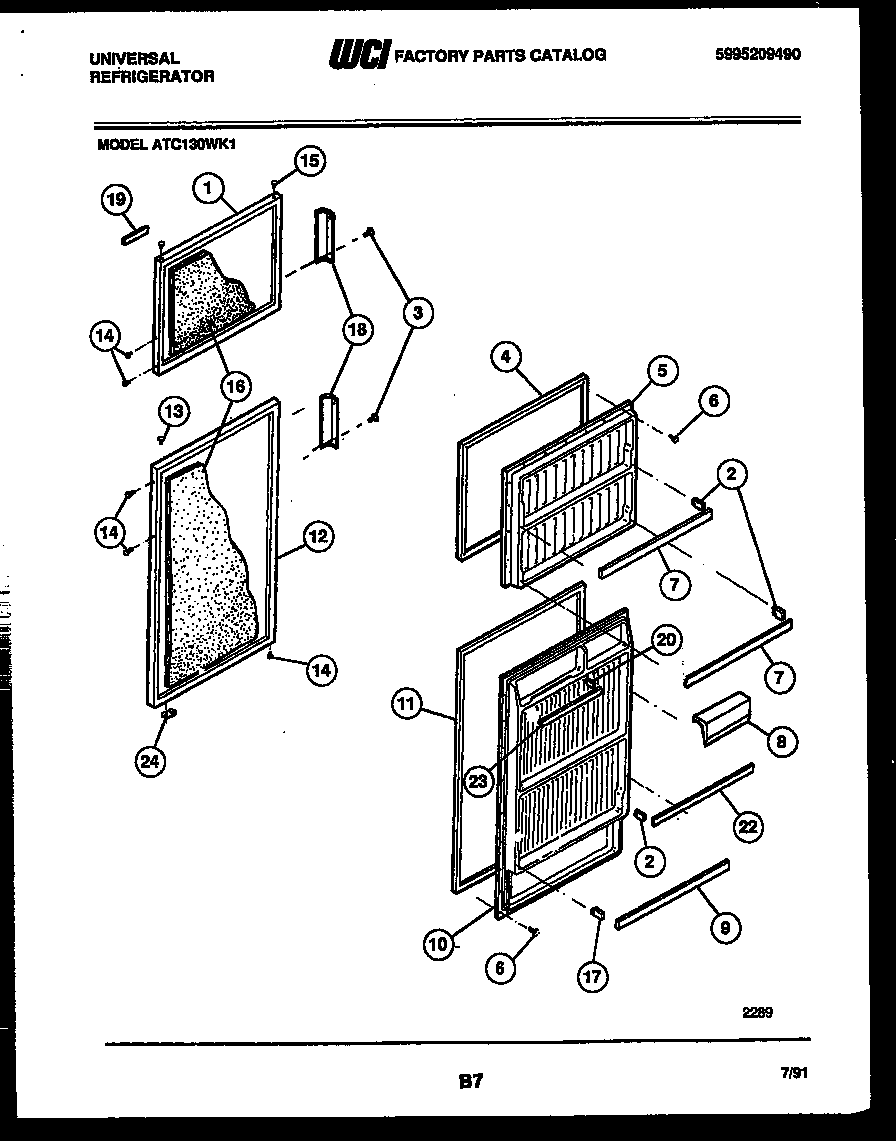

ATC130WKH1 02 – DOOR PARTSadmin2025-04-26T08:47:23+00:00ATC130WKH1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *47773 | WCI 5308011745 |
| 1 | WCI 5303916964 |
| 2 | 3206165 Frigidaire Bar Endcap Right Hand |
| 2A | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 3 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 4 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 5 | PANEL-INNER DOOR, FRZR |
| 6 | 5304455651 Frigidaire Refrigerator Screw |
| 7 | DOOR RACK - FREEZER - (2) |
| 8 | WCI 5303206149 |
| 9 | DOOR RACK - REFR |
| 10 | WCI 5303276182 |
| 11 | GASKET-REFR DOOR, MAGNETIC |
| 12 | WCI 5303916961 |
| 13 | BEARING-HINGE |
| 14 | BUTTON-WHEAT |
| 15 | BUTTON-WHEAT |
| 16 | INSULATION-BULK (NON-ILLUSTRATED) |
| 17A | WCI 3206150 |
| 17 | WCI 3206151 |
| 18 | HANDLE |
| 19 | WCI 5303276130 |
| 20 | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 20A | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 22 | DOOR RACK - REFR |
| 23 | WCI 5303276154 |
| 24 | WCI 5308000255 |
