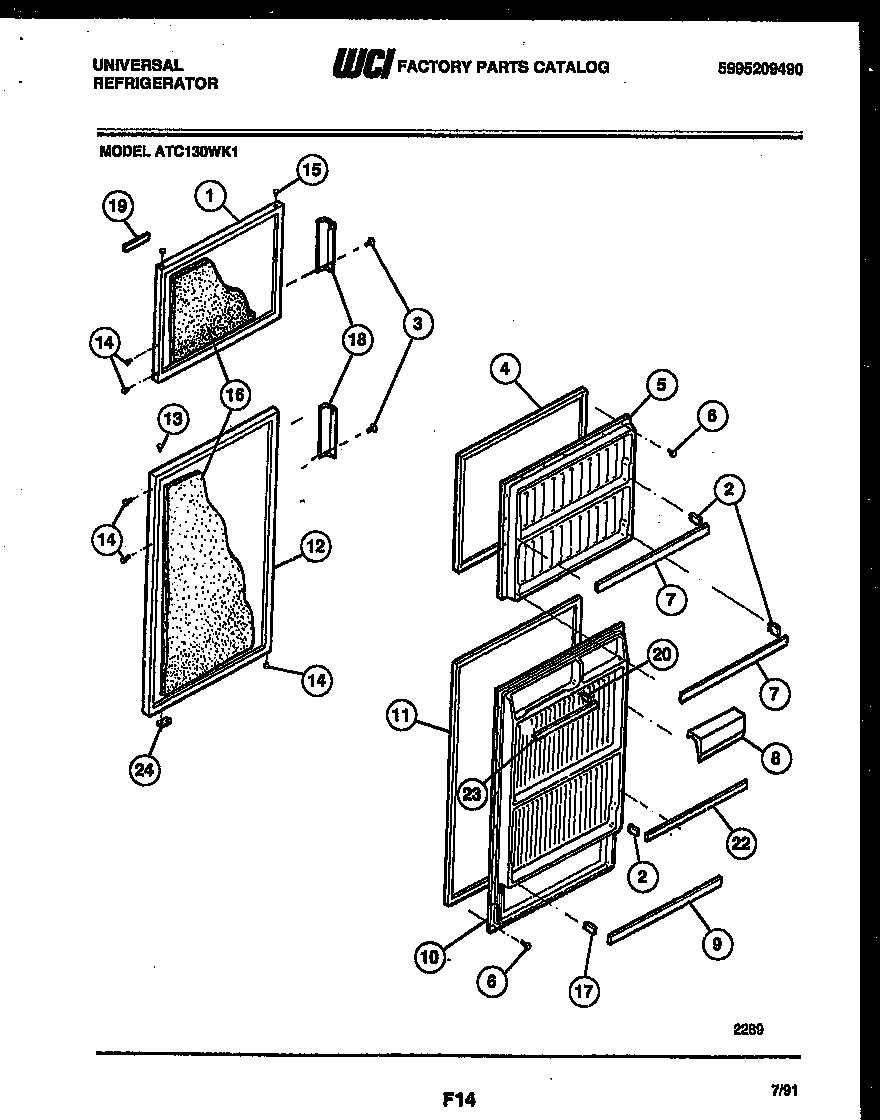

ATC130WKY1 02 – DOOR PARTS

Products

Position	Product
*54585	WCI 5308011745
1	WCI 5303916963
1	WCI 5303916964
1	WCI 5303916965
2	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
2	3206165 Frigidaire Bar Endcap Right Hand
3	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
4	GASKET, FRZR DOOR, BROWN, MAGNETIC
5	PANEL-INNER DOOR, FRZR
6	5304455651 Frigidaire Refrigerator Screw
7	DOOR RACK – FREEZER – (2)
8	WCI 5303206149
9	DOOR RACK – REFR
10	WCI 5303276182
11	GASKET-REFR DOOR, MAGNETIC
12	WCI 5303916960
12	WCI 5303916961
12	WCI 5303916962
13	BEARING-HINGE
14	BUTTON-WHEAT
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14	240494001 Frigidaire Refrigerator Plug Button
15	BUTTON-WHEAT
15	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
15	PLUG-BUTTON, WHITE, HINGE BRG HOLE
16	INSULATION-BULK (NON-ILLUSTRATED)
17	WCI 3206151
17	WCI 3206150
18	HANDLE
19	WCI 5303276130
20	SUPPORT-DOOR RACK, EXTENDS .56“, LH
20	SUPPORT-DOOR RACK, EXTENDS .56“, RH
22	DOOR RACK – REFR
23	WCI 5303276154
24	WCI 5308000255
