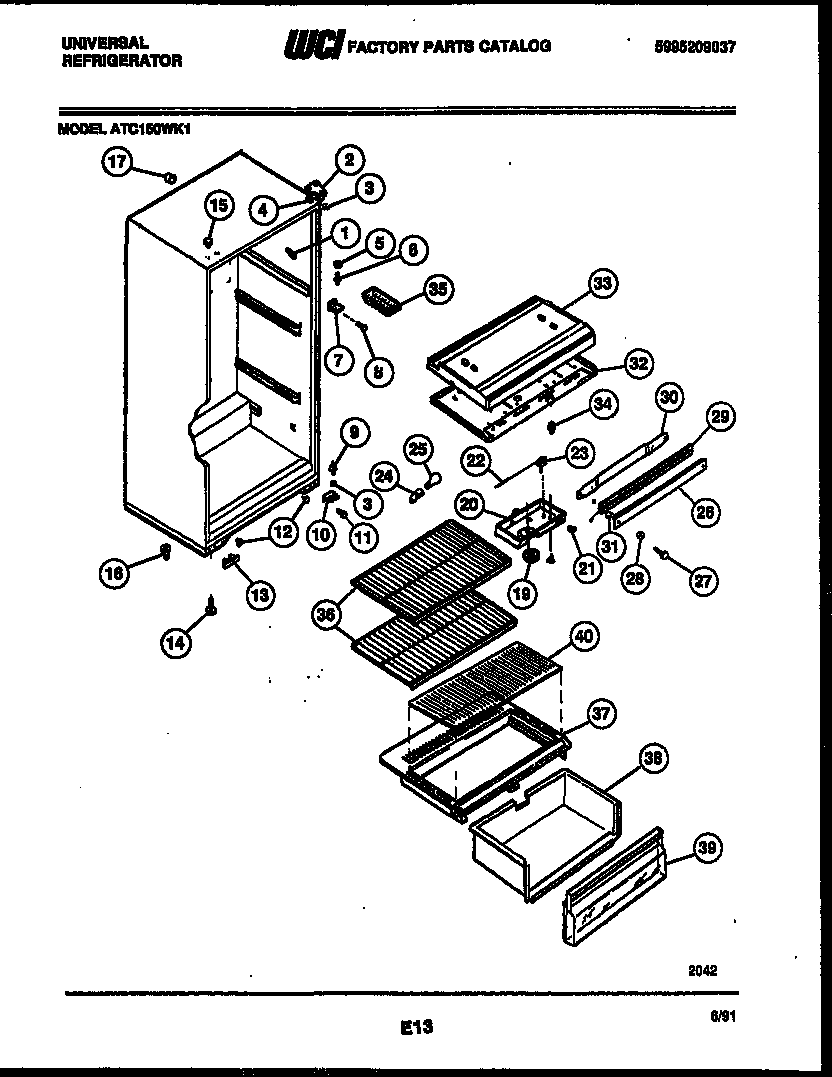

ATC150DK1 03 – CABINET PARTS

Products

Position	Product
1	TRIM-CABINET CORNER, ALMOND
1	TRIM-CABINET CORNER, WHITE
1	WCI 5303202338
2	WCI 3206100
3	WASHER, .34 X .62 X .05, NYLON
4	SHIM - UPPER HINGE
5	WCI 5308000186
6	WCI 5308000184
7	BRACKET-CTR HINGE
9	5303001321 Frigidaire Refrigerator Lower Hinge Pin
10	WCI 3206136
11	241710601 Frigidaire Refrigerator Screw
12	PLUG-BUTTON
13	WCI 3206135
14	SCREW-LEVELING, (2)
15	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
15	PLUG-BUTTON, WHITE
15	BUTTON-HINGE-WHEAT
16	WCI 5303211514
17	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
17	TUBE-RUBBER
19	WCI 5303209251
20	WCI 5303211508
20	5304455650 Frigidaire Refrigerator Screw
21	WCI 3206129
22	TUBE
23	WCI 5303211506
23	WCI 5303001260
24	218906802 Frigidaire Light Lamp Socket
25	316538904 Frigidaire Oven Lamp Light
26	WCI 3206121
26	WCI 3206125
26	WCI 3206123
27	SCREW - MULLION (2)
28	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
29	WCI 3206120
30	WCI 5308003604
31	SPACER-MULLION MTG, STEEL
32	WCI 5303001380
32	WCI 5303211503
33	WCI 5303211502
33	WCI 5303211512
33	3205266 Frigidaire Refrigerator Edge Protector
34	5309918806 Frigidaire Refrigerator Light Switch Door
35	215667501 Frigidaire Refrigerator Ice Tray Primary
36	WCI 3206099
37	COVER-CRISPER PAN, WITH BEAM, LESS INSERT
38	5303285386 Frigidaire Refrigerator Crisper Pan
39	WCI 3206106
40	WCI 3206111
