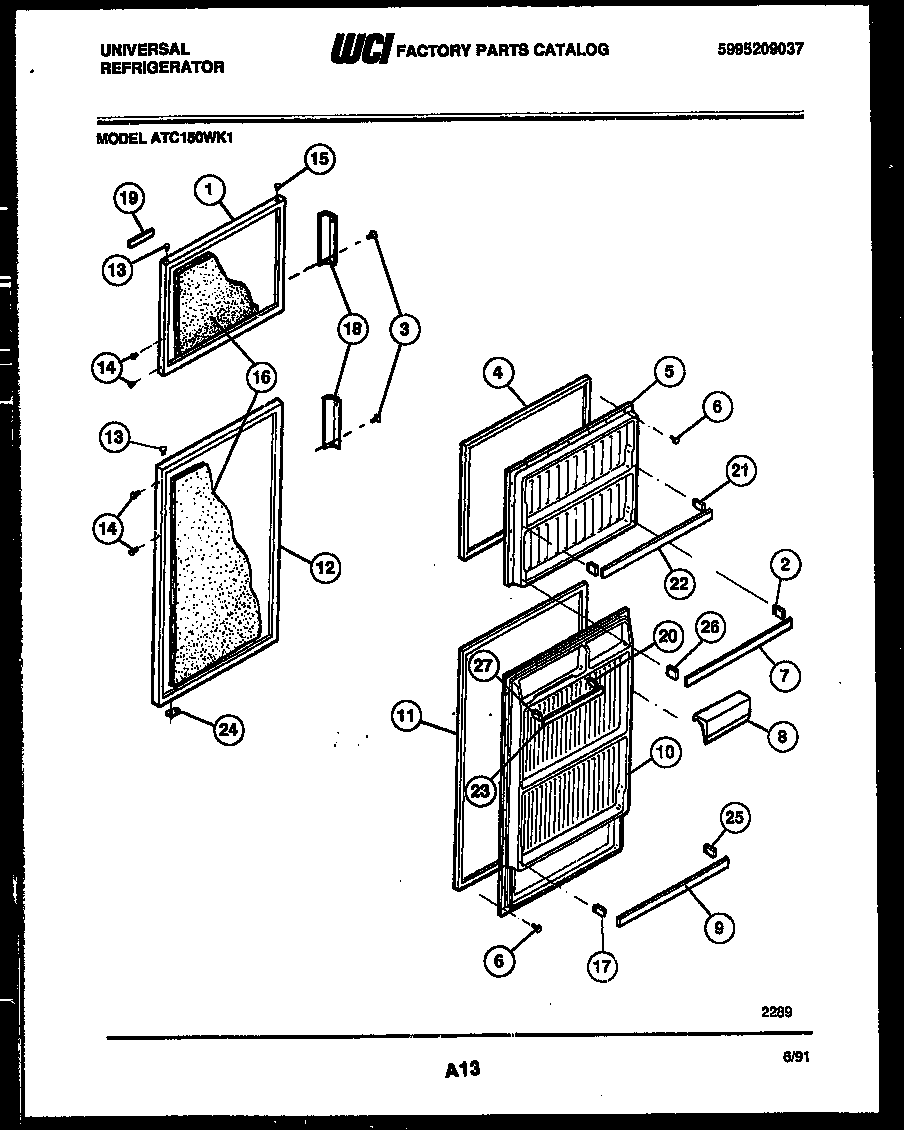

ATC150WKB1 02 – DOOR PARTS

Products

PositionProduct
1WCI 5303916965
2SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
3SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
4GASKET, FRZR DOOR, BROWN, MAGNETIC
5WCI 5303276517
65304455651 Frigidaire Refrigerator Screw
7DOOR RACK-FREEZER-LWR
8WCI 5303206149
9DOOR RACK – REFR
10WCI 5303276518
11218730603 Frigidaire Door Gasket
12WCI 5303916980
13BEARING-HINGE
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PLUG-BUTTON, ALMOND, HINGE BRG HOLE
16INSULATION-BULK (NON-ILLUSTRATED)
17WCI 3206151
18HANDLE
19WCI 5303276130
20SUPPORT-DOOR RACK, EXTENDS .56“, RH
21A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
213206165 Frigidaire Bar Endcap Right Hand
22DOOR RACK – FREEZER – (2)
23WCI 5303276519
24AWCI 5308011745
24WCI 5308000255
25WCI 3206150
26SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
27SUPPORT-DOOR RACK, EXTENDS .56“, LH
