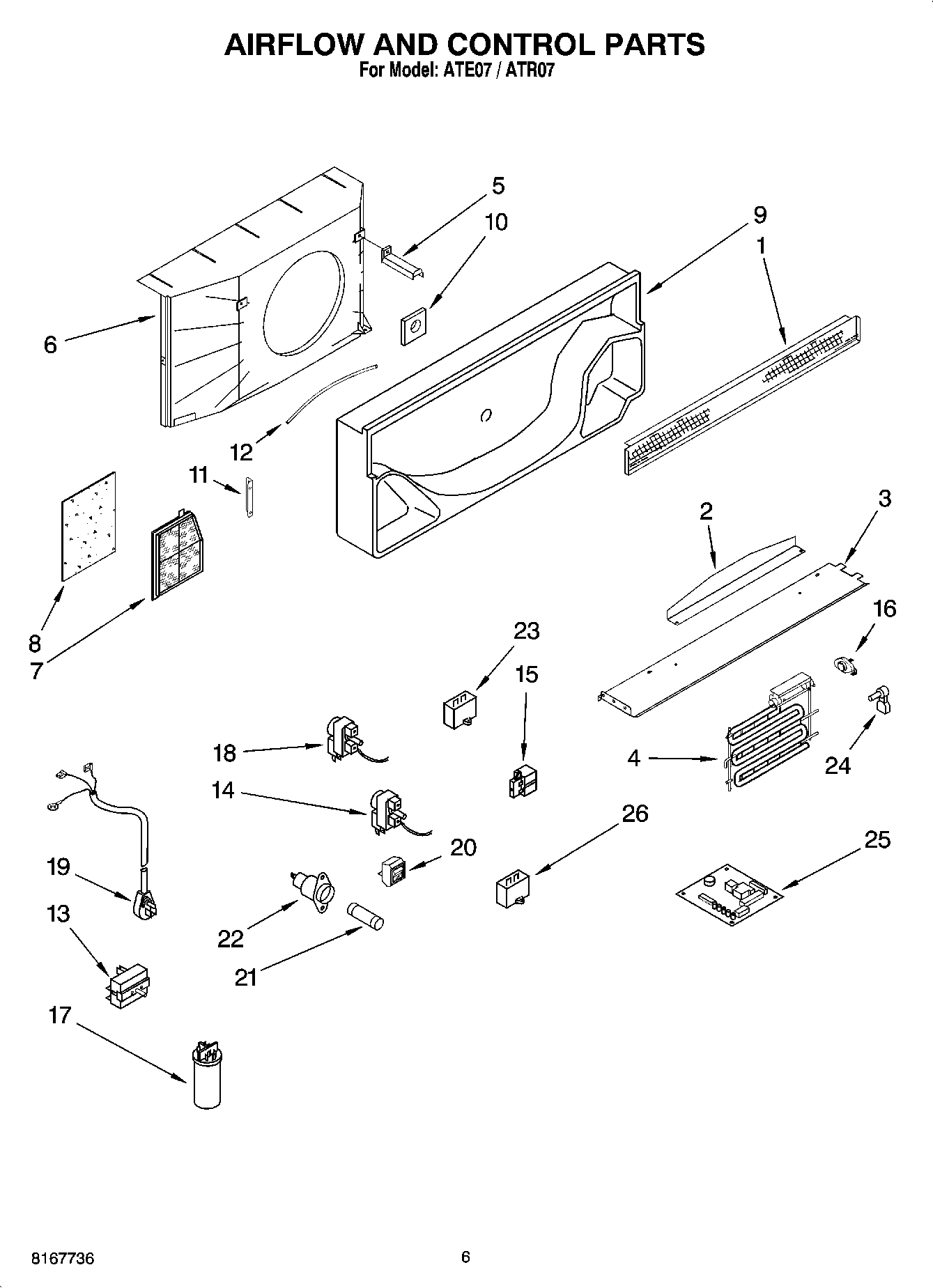

ATE07 03 – AIRFLOW AND CONTROL PATRS – OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	Screen, Discharge
2	Baffle, Air
3	Cover, Heater
4	HEATER (5.0KW, 265 VOLT)
4	HEATER (3.4KW, 265 VOLT)
4	HEATER (2.5KW, 230 VOLT)
4	HEATER (2.5KW, 265 VOLT)
4	HEATER (5.0KW, 230 VOLT)
4	HEATER (3.4KW, 230 VOLT)
5	Brace, Support
6	Shroud, Condenser
7	Door, Fresh Air
8	Insulation, Fresh Air Door
9	SCROLL
10	Seal, Motor
11	Latch, Fresh Air Door
12	Cable, Fresh Air
13	Switch, Rotary (Cooling Only)
13	Switch, Rotary (Heating & Cooling)
14	THERMOSTAT
15	Relay, Hot Start (24 Volt)
15	Relay, Hot Start (230 Volt)
15	Relay, Hot Start (265 Volt)
16	Sensor, Hot Start
17	Capacitor (230 Volt)
17	Capacitor (265 Volt)
18	Thermostat, Defrost
19	Cord, Appliance (30 Amp, 5.0Kw-230V)
19	Cord, Appliance (20 Amp, 3.4Kw-230V)
19	Cord, Appliance (15 Amp, 2.5Kw-230V)
20	Switch, Rocker
21	Fuse, Time Delay (15 Amp (2.5Kw))
21	Fuse, Time Delay (20 Amp (3.4Kw))
21	FUSE, TIME DELAY (20 AMP (3.4KW))
22	Holder, Fuse (15 Amp (2.5Kw))
22	Holder, Fuse (30 Amp (5.0Kw))
22	Holder, Fuse (20 Amp (3.4Kw))
23	Relay, Remote for Heat Pump Units
24	Switch, Limit (One Shot)
24	Switch, Limit (Resettable)
25	Terminal Board, Low Voltage for Remote Control Units
26	Label, Compressor
26	Chassis Shipping Pallet
26	WPL 8210076
26	WPL 8210075
26	Chassis Top Carton
26	Pad, Chassis Carton Top
26	Chassis Inner Carton
26	Label, Single Outlet
26	Label, Power Cord
26	Label, Heat Pump Defrost Control
26	Overpack, Canadian Chassis
26	Overpack, Canadian Sleeve
26	Label, Fan Cycle Switch
26	Label, Power Disconnect
26	Wall Sleeve Carton
26	Supply Wire
