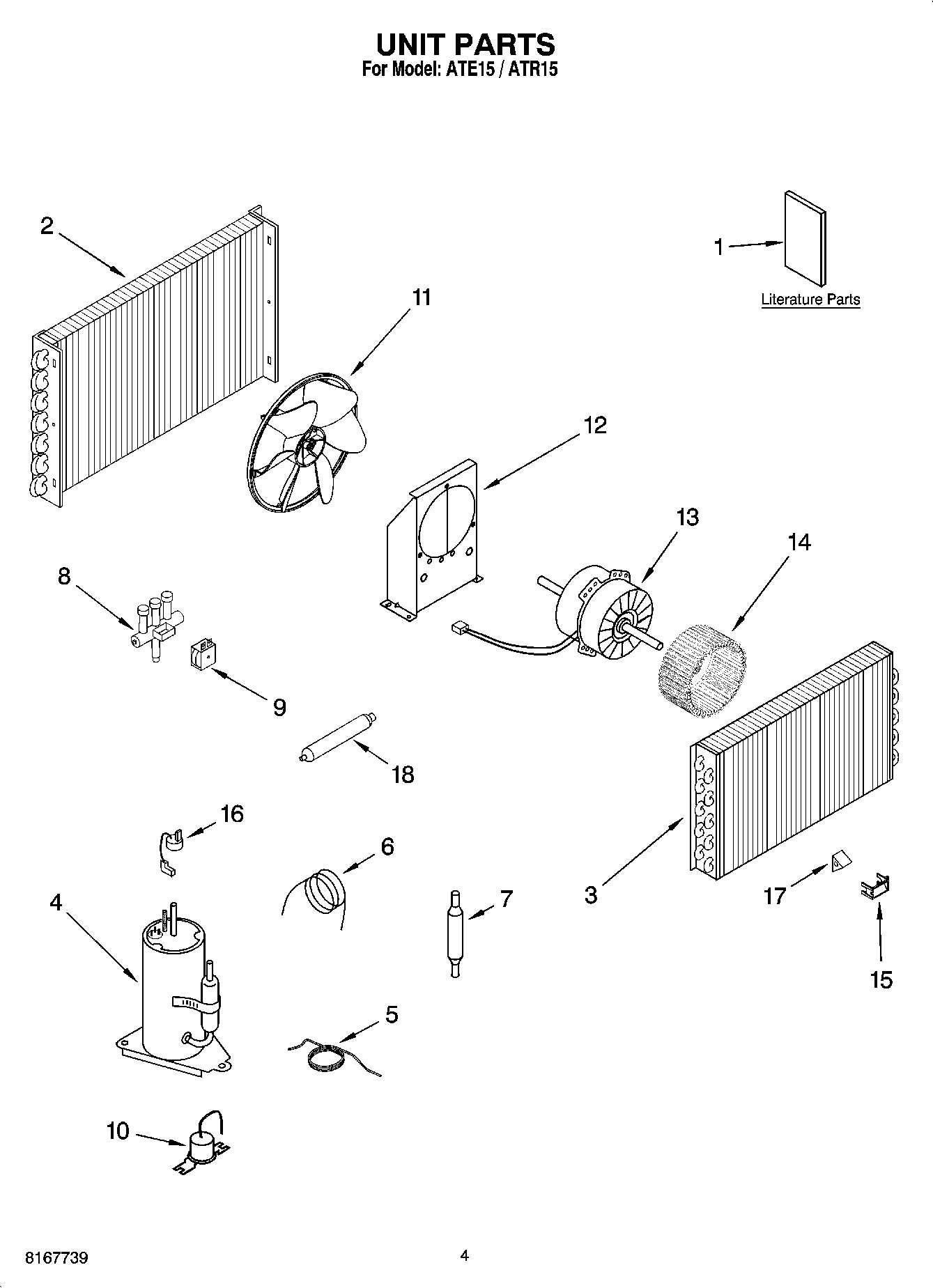

ATE15 02 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram (Mdl ATE074-Remote)
1	Wiring Diagram (Mdl ATE074-Standrd)
1	Manual, Installation (English)
1	Manual, Installation (French)
1	Wiring Diagram (Mdl ATR075-Remote)
1	Wiring Diagram (Mdl ATR075-Standrd)
1	Wiring Diagram (Mdl ATR074-Remote)
1	Wiring Diagram (Mdl ATR074-Standrd)
1	Wiring Diagram (Mdl ATE075-Remote)
1	Wiring Diagram (Mdl ATE075-Standrd)
2	Condenser (Non-Seacost Models)
2	Condenser (Seacoast Models)
3	EVAPORATOR
4	Compressor (265 Volt Models)
4	Compressor (230 Volt Models)
6	Restrictor Tube Heat Pump Units (Heating Tube)
6	Restrictor Tube Heat Pump Units (Heating Tube)
7	Valve, Check
8	Valve, Reversing w/o Coil
9	Solenoid Coil (265 Volt Models)
9	Solenoid Coil (230 Volt Models)
10	Valve, Drain
11	Blade, Fan (Condenser)
12	Bracket, Motor
13	Motor, Fan (230 Volt Models)
13	Motor, Fan (265 Volt Models)
14	Wheel, Blower (Evaporator)
15	Clip, Thermostat
16	Overload (265 Volt Models)
17	Anticipator
18	Dryer, Suction Tube
18	REFRIGERANT CHARGE 34.0oz For ATE15 Models 41.0oz For ATR15 Models
