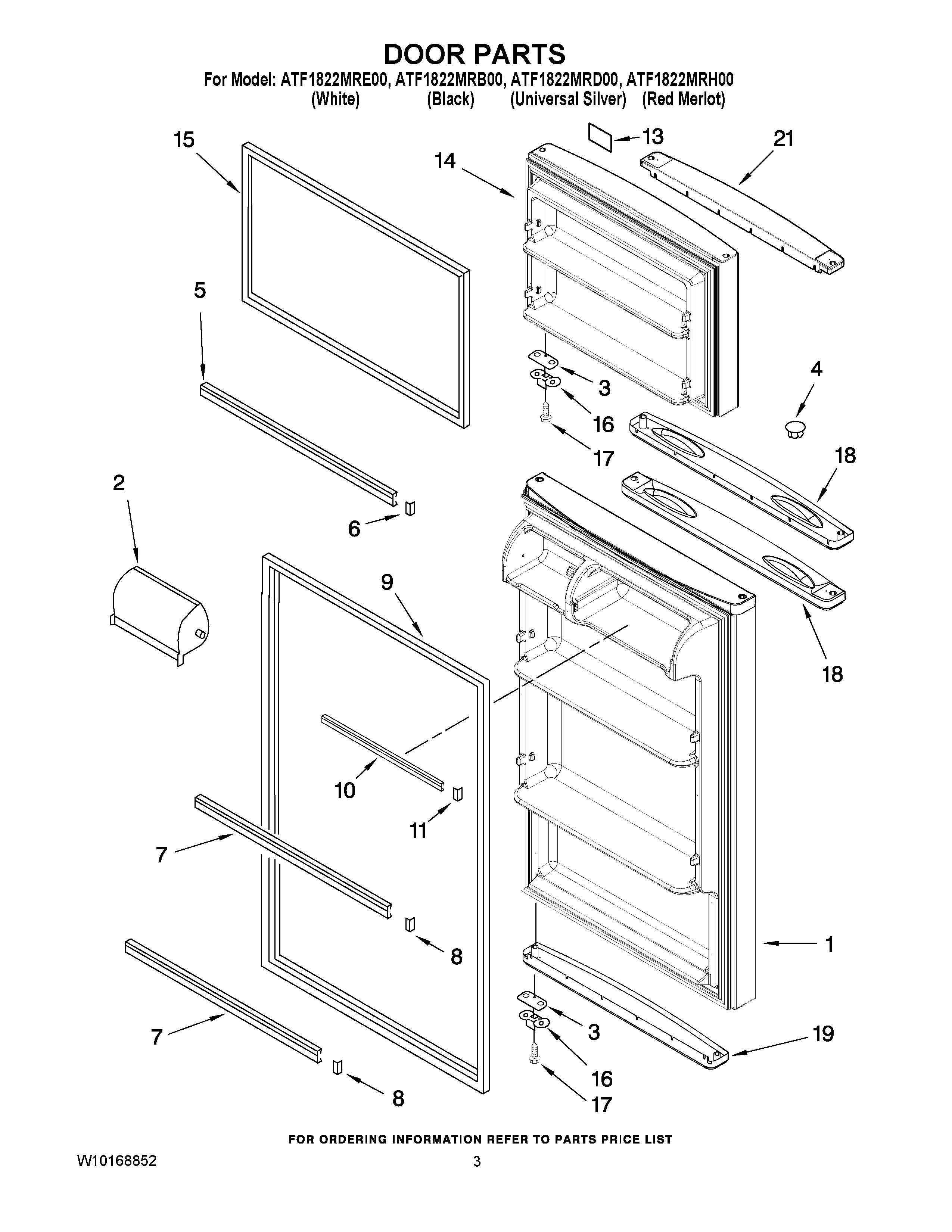

ATF1822MRB00 02 – DOOR PARTSadmin2025-04-26T09:10:01+00:00ATF1822MRB00 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10153823 |
| 1 | MAY 2265677R |
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER) |
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (BLACK) |
| 2 | MAY 2207942 |
| 3 | Shim, Door Stop (Black) |
| 4 | MAY 2212648D |
| 4 | MAY 2212648 |
| 4 | Hole Plug (Black) |
| 5 | MAY 2266727 |
| 6 | END CAP, TRIM |
| 7 | MAY 2266738 |
| 8 | PLUG-TRIM |
| 9 | GASKET, RC (BLACK) |
| 9 | MAY 2264727 |
| 10 | Trim, Door |
| 11 | Plug-Trim |
| 13 | MAY 2200749 |
| 14 | MAY W10162670 |
| 14 | FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER) |
| 14 | MAY 2265678R |
| 14 | FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (BLACK) |
| 15 | GASKET, FC (BLACK) |
| 15 | MAY 2264726 |
| 16 | MAY 2189202 |
| 17 | MAY 8533904 |
| 18 | Endcap, Handle (Universal Silver) |
| 18 | Endcap, Handle (Black) |
| 18 | Endcap, Handle (White) |
| 19 | Endcap, Bottom (White) |
| 19 | MAY 2265647D |
| 19 | Endcap, Bottom (Black) |
| 21 | Endcap, Top (Black) |
| 21 | Endcap, Top (White) |
| 21 | ENDCAP, TOP |
