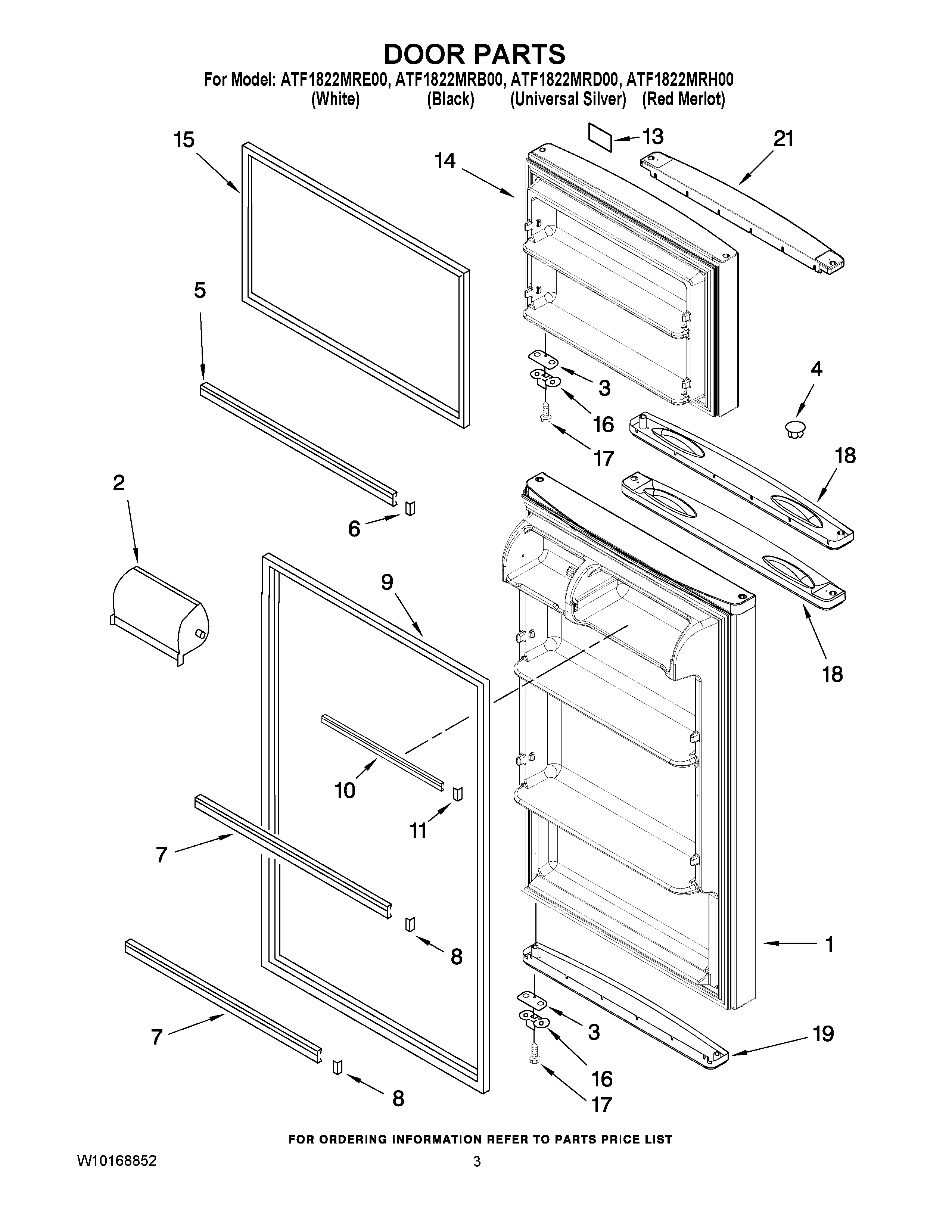

ATF1822MRD00 02 – DOOR PARTS

ATF1822MRD00 02 – DOOR PARTS

Written by

in

ATF1822MRD00 02 – DOOR PARTS

Products

PositionProduct
1MAY W10153823
1MAY 2265677R
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
1REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED DOOR HANDLE) (BLACK)
2MAY 2207942
3Shim, Door Stop (Black)
4MAY 2212648D
4MAY 2212648
4Hole Plug (Black)
5MAY 2266727
6END CAP, TRIM
7MAY 2266738
8PLUG-TRIM
9GASKET, RC (BLACK)
9MAY 2264727
10Trim, Door
11Plug-Trim
13MAY 2200749
14MAY W10162670
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (UNIVERSAL SILVER)
14MAY 2265678R
14FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR HANDLE) (BLACK)
15GASKET, FC (BLACK)
15MAY 2264726
16MAY 2189202
17MAY 8533904
18Endcap, Handle (Universal Silver)
18Endcap, Handle (Black)
18Endcap, Handle (White)
19Endcap, Bottom (White)
19MAY 2265647D
19Endcap, Bottom (Black)
21Endcap, Top (Black)
21Endcap, Top (White)
21ENDCAP, TOP
