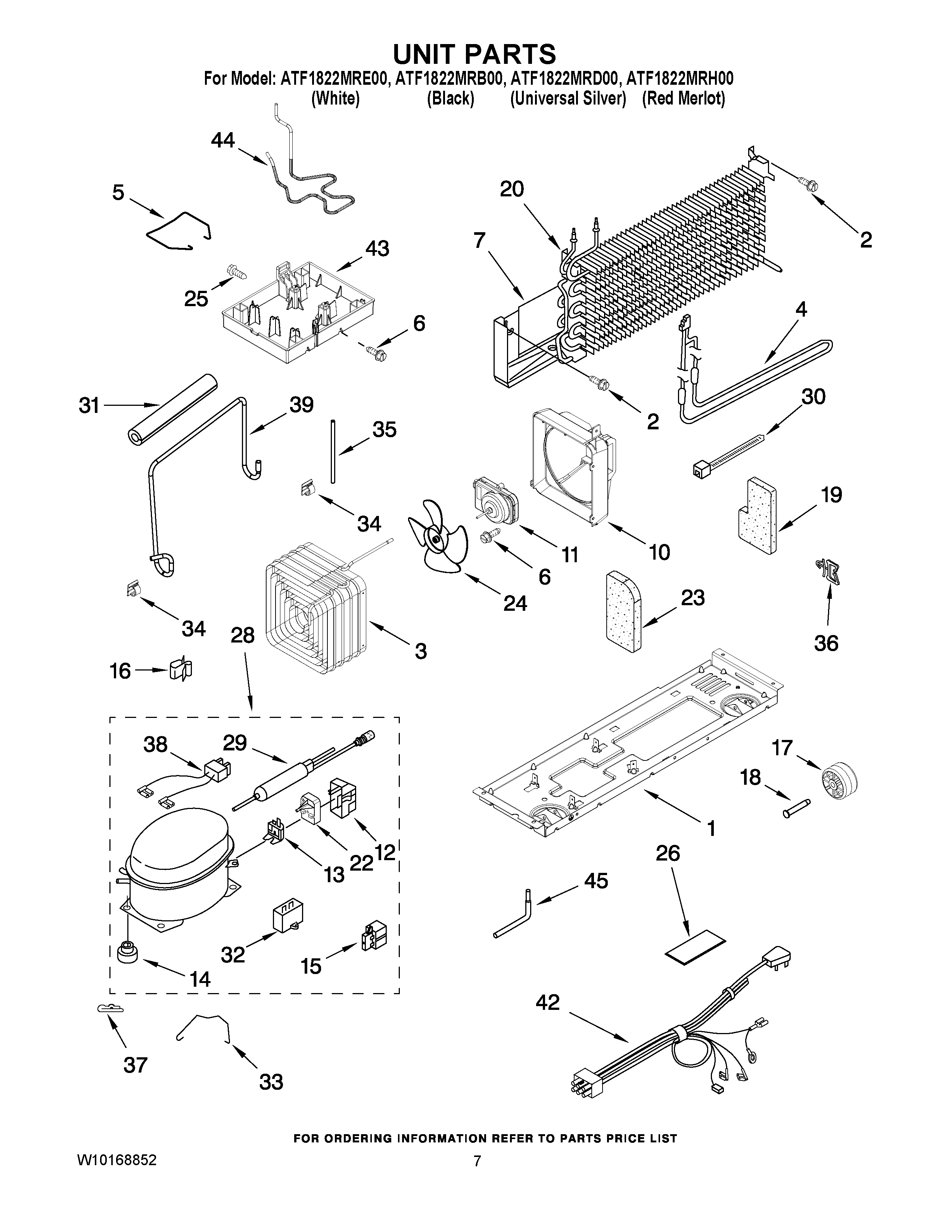

ATF1822MRD00 04 – UNIT PARTSadmin2025-04-26T09:10:05+00:00ATF1822MRD00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY W10127456 |
| 2 | MAY 489442 |
| 3 | MAY W10140200 |
| 4 | MAY 2176942 |
| 5 | MAY 2264835 |
| 6 | MAY 8533859 |
| 7 | MAY 2319224 |
| 10 | MAY 2263929 |
| 11 | MAY 2188875 |
| 12 | COVER ((SERVICE ONLY)) |
| 13 | OVERLOAD ((SERVICE ONLY)) |
| 14 | MAY 2222084 |
| 14 | MAY 4387558 |
| 15 | Start Relay (Service Only) |
| 16 | MAY 939054 |
| 17 | Roller |
| 18 | RIVET, AXLE |
| 19 | Wedge-Evap. |
| 20 | EVAPORATOR ASSY |
| 22 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE) |
| 23 | MAY 2262192 |
| 24 | MAY 2264129 |
| 25 | MAY 2264841 |
| 26 | SHIELD-ELECTRICAL |
| 28 | Compressor (Includes Items 14,29, & 32) |
| 29 | Drier |
| 30 | MAY 2263990 |
| 31 | MAY 2264838 |
| 32 | Capacitator (Production) |
| 32 | Capacitor (Service) |
| 33 | Bale Strap |
| 34 | MAY 1114718 |
| 35 | MAY 2264278 |
| 36 | CLIP-HARNESS |
| 37 | MAY 24364001 |
| 38 | Wire Assembly (Service Only) |
| 39 | MAY W10140199 |
| 42 | MAY 2263753 |
| 43 | Evaporating Tray |
| 44 | Tube, Discharge (Incl. Pre Cooler) |
| 45 | MAY W10140201 |
