ATF1822MRE01 01 – CABINET PARTS
Written by
in

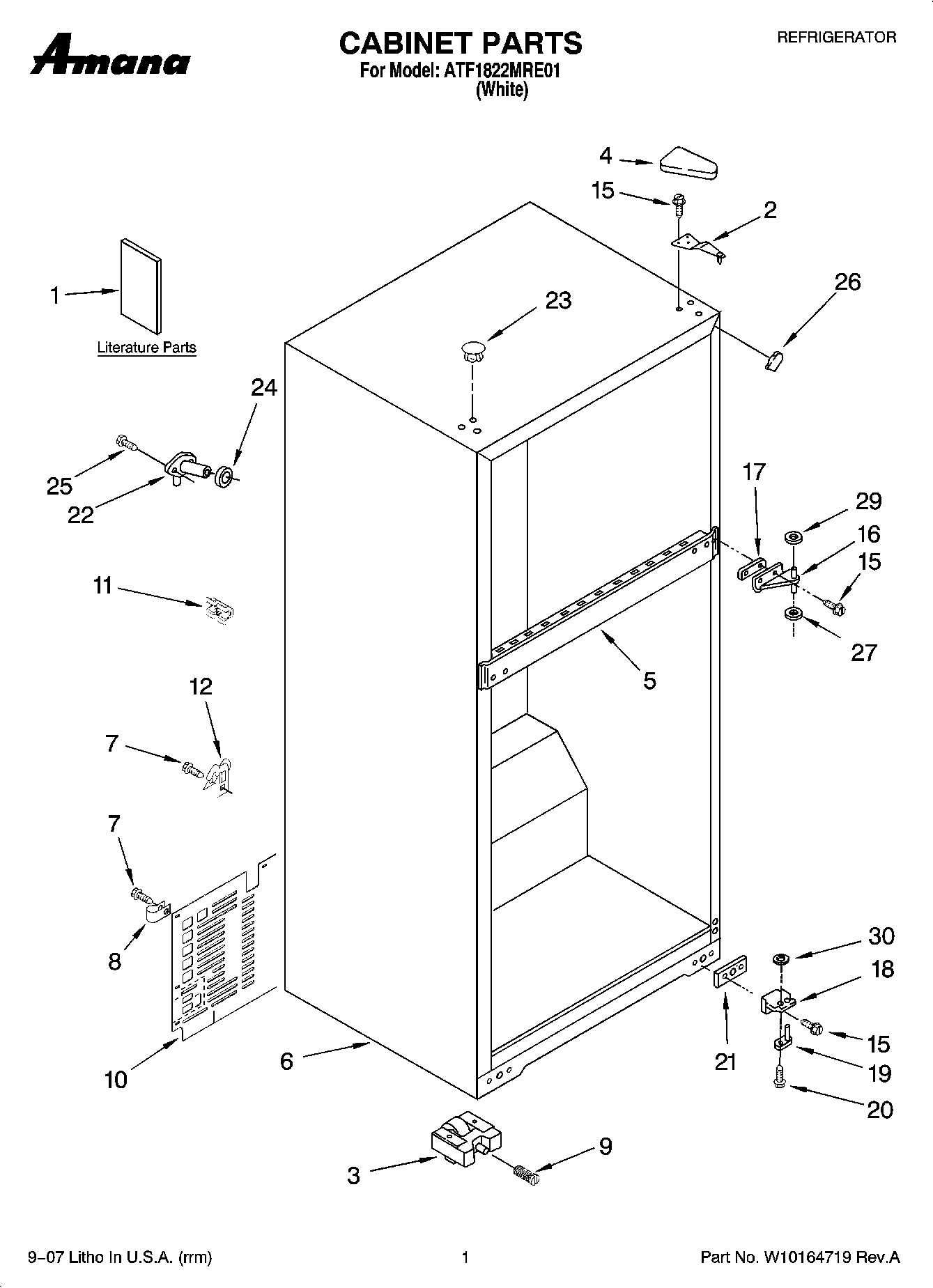

ATF1822MRE01 01 – CABINET PARTS
Products
Position
Product
1
MAY 628370
1
DO-IT-YOURSELF MANUAL REF./ FRZ.
1
MAY 2265591
1
MAY W10162920
1
MAY W10154917
2
MAY 2261963
3
Roller-Front
4
Cover, Hinge (White)
7
MAY 489442
8
CLAMP, TUBE
9
SCREW
10
MAY 2266389
11
SPACER, BACK CB
12
MAY 549193
15
MAY 489497
16
MAY 2166086
17
SHIM, HINGE CENTER (WHITE)
18
MAY 2221926
19
Hinge-Pin, Bottom
20
MAY 3428970
21
MAY 2201567
22
MAY 2174760
23
HOLE PLUG
24
Seal
25
MAY 2262176
26
Corner Filler
27
Washer (1/16)
29
WASHER, PLASTIC
30
Washer
←
