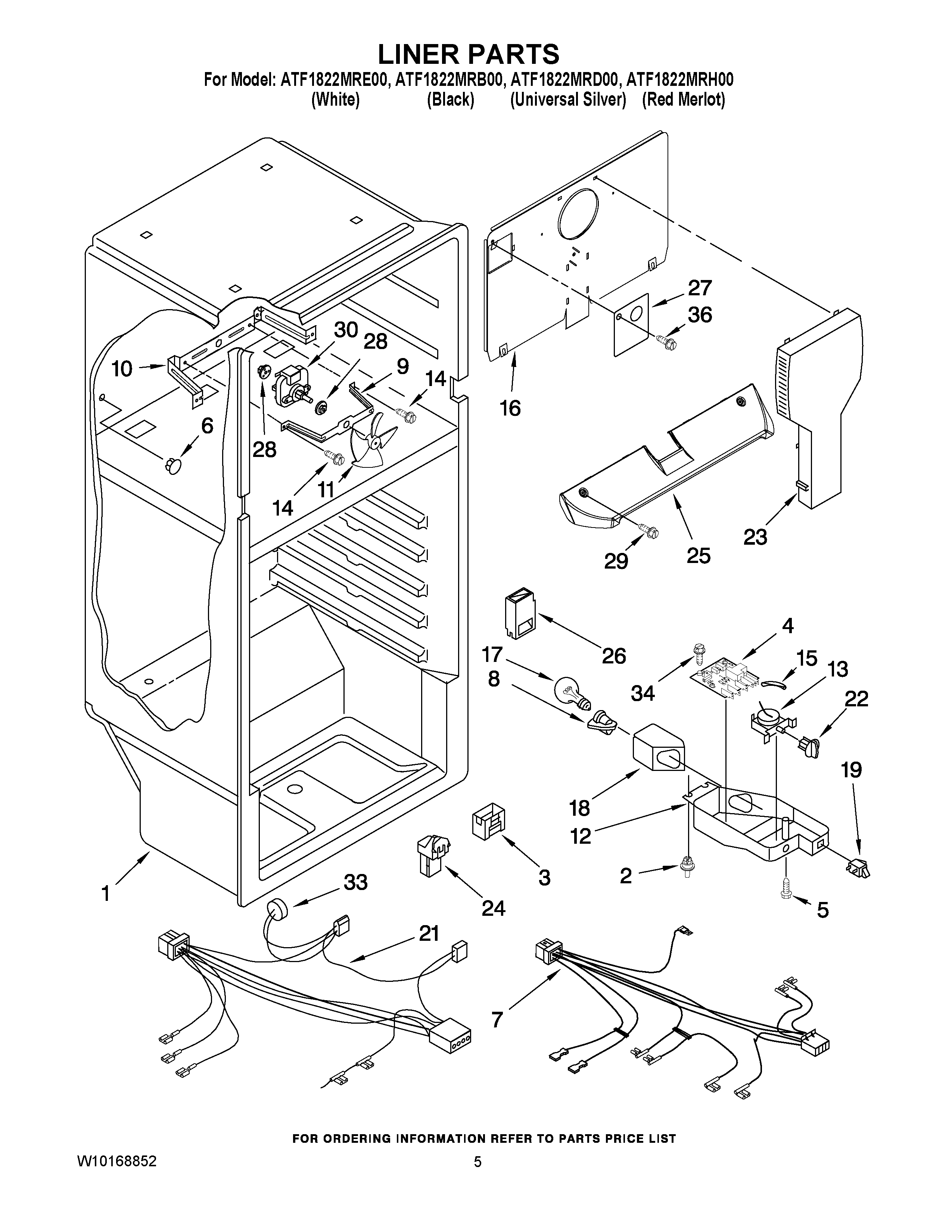

ATF1822MRH00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Rivet
3	MAY 2183061
4	TIMER, DEFROST
5	MAY 489174
6	MAY 941839
7	WIRE ASSY. CONTROL BOX
8	Socket, Light
9	MAY 2197404
10	MAY 2197405
11	Blade, Fan (Evaporator)
12	MAY 2215210
13	MAY 2325701
14	Screw 8-32 x 5/16
15	MAY 1118680
16	MAY 2264669
17	MAY 2252970
18	MAY 9791702
19	MAY 1118894
21	Wiring-Freezer (Includes Item 33)
22	MAY 2202885
23	MAY 9790408
24	Hood And Foil Assembly
25	MAY 2261978
26	MAY 2221992
27	MAY 2217783
28	MAY 2264462
29	MAY 2262178
30	Evaporator, Fan Motor
33	MAY 2266066
34	Screw
36	MAY 489478
